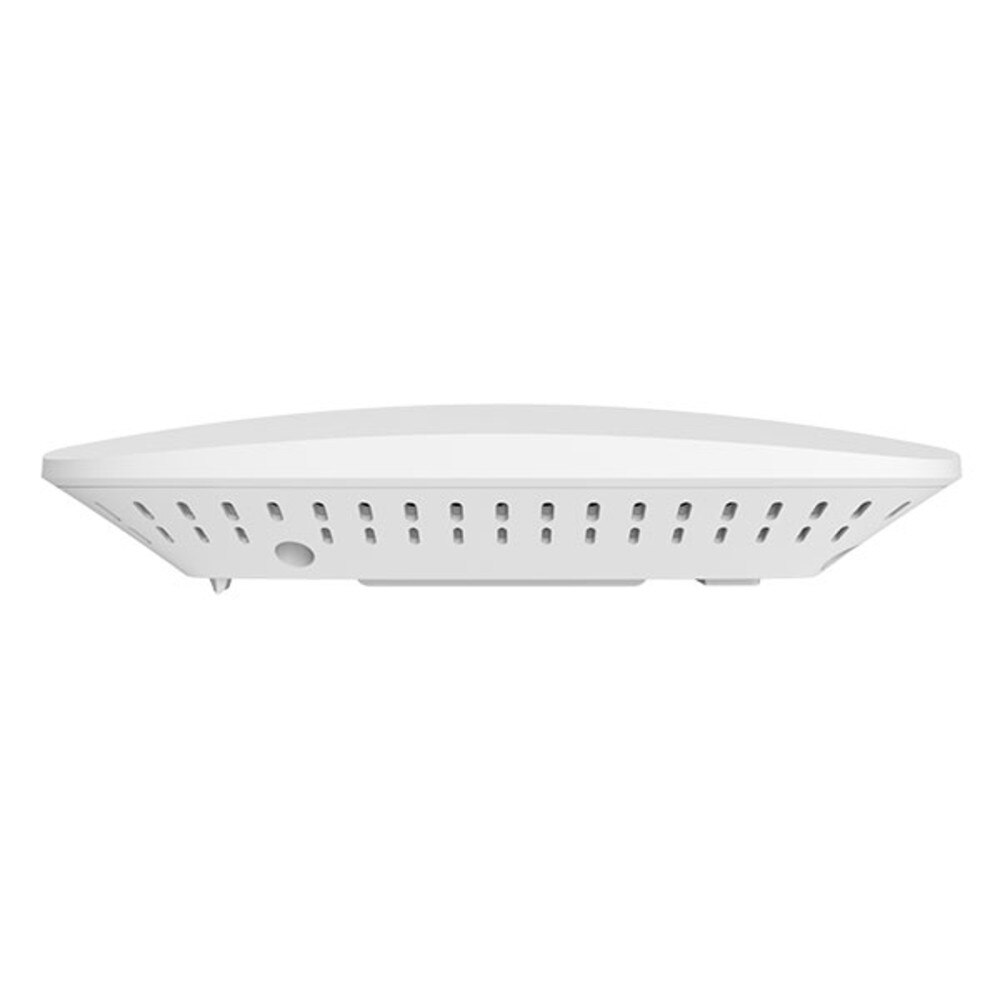

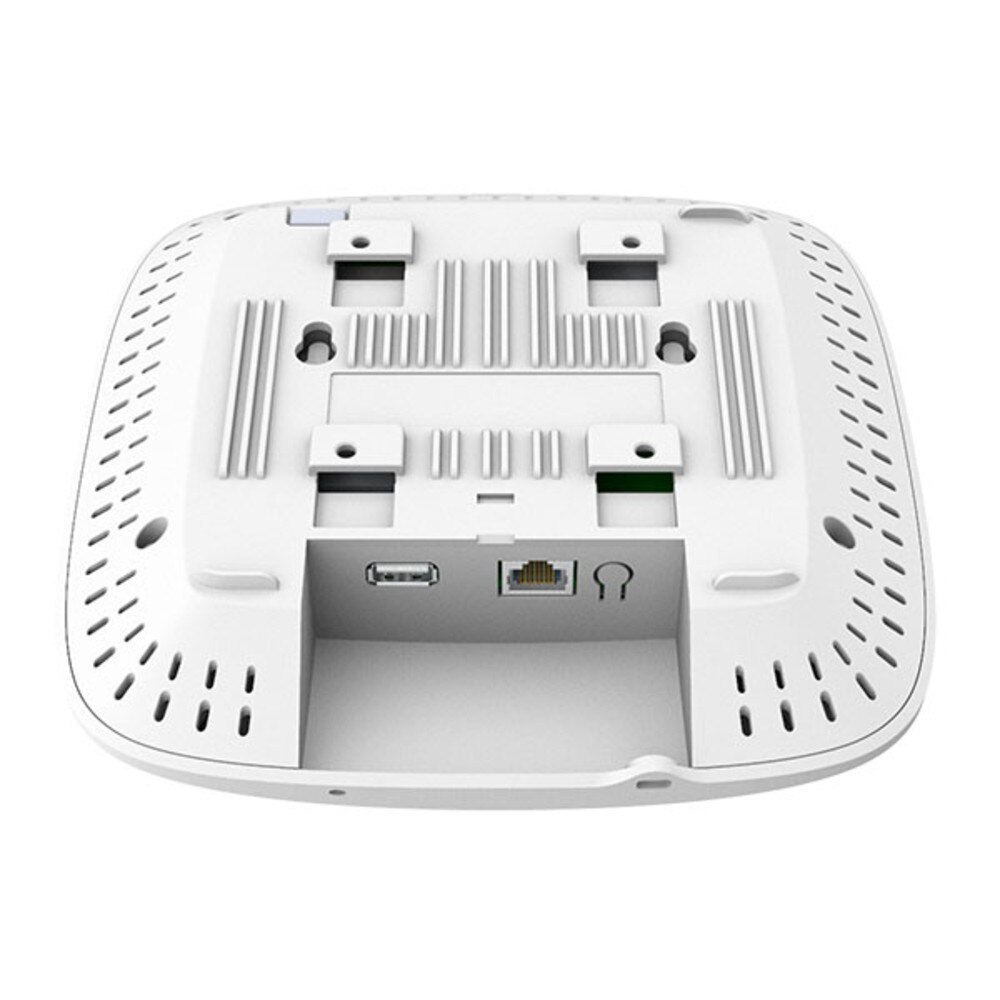

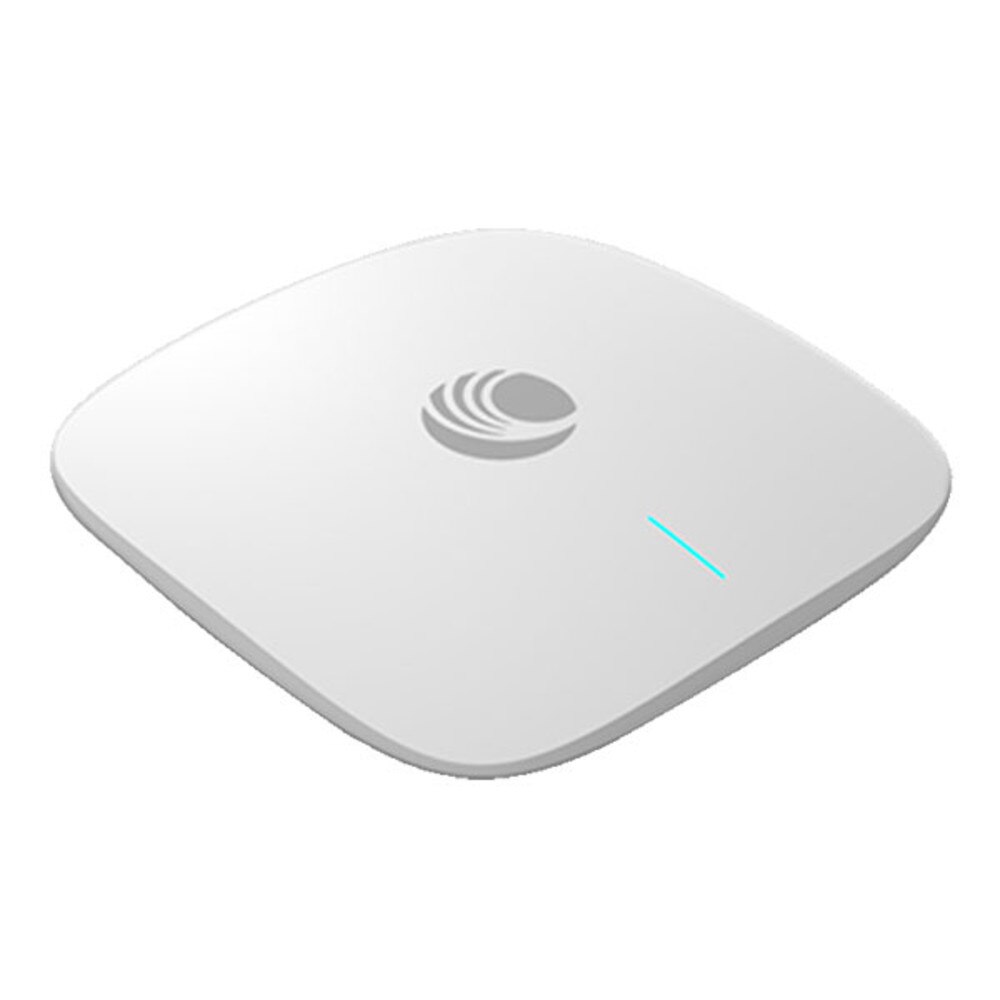

Cambium XV2-2 Indoor Dual Radio Wi-Fi 6 2x2 WLAN AP, 2.5GBE (US Version)

CA$‎771.01 CA$‎797.69
  • SKU: XV2-2X00A00-US
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • 9 In Stock (updated live)
CA$‎771.01 CA$‎797.69

Cambium Networks XV2-2X00A00-US

XV2-2 Indoor Dual Radio Wi-Fi 6 2x2 WLAN AP, 2.5GBE (US Version)

The XV2-2 is a dual-radio Wi-Fi 6 access point (AP) designed to deliver next generation networks with edge services at a value-based price. Wi-Fi 6 technology delivers higher network speeds and enables more connected devices at higher packet quality.

Wi-Fi 6 brings a deterministic model to the radio frequency (RF) layer where the AP controls the client connections, including when to sleep, when to wake and how to transmit and receive packets.

The XV2-2 is fully backward compatible with existing Wi-Fi technology and enables a massive growth of low power, low bitrate IoT devices to add infrastructure intelligence into any market.

XV2-2 comes with Limited Lifetime Warranty providing return and repair service on the access point from date of purchase until end of life of the product.

CLOUD AND ON-PREMISES MANAGEMENT

XV2-2 continues the enterprise network convergence with edge-intelligent AP managed by application-intelligent Cambium Networks XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.


Features:

  • Dual radios, 2x2
  • 2.5 GbE uplink port, RJ45
  • 1.77 Gbps aggregate data rate
  • Application policy control
  • EasyPass with Microsoft Azure and Google G Suite integration

Shipping Information:

Dimensions (W x H x L)9cm X 3cm X 10cm
Weight2.2 lbs

Specifications XV2-2X00A00-US

Radios 5 GHz 802.11 a/n/ac Wave 2/ax, 2x2 2.4 GHz 802.11 b/g/n/ax, 2x2
Wi-Fi 802.11 a/b/g/n/ac Wave 2/ax
SSIDWPA3, WPA2 (CCMP, AES, 802.11i), WPA2
SecurityEnterprise (802.1x/EAP), WPA PSK (TKIP), Open
Max PHY5 GHz radio 1,201 Mbps
Rate2.4 GHz radio 573.5Mbps
Ports 1 x IEEE 10/100/1000/2500 Mbps Auto sensing MDIX
Antenna 5 GHz 6 dBi, Omni 2.4 GHz 5 dBi, Omni
Max EIRP 5 GHz 31 dBm 2.4 GHz 29 dBm
Power Max power 21 W, 802.3at powered device
Dimensions 200 mm x 200 mm x 50 mm (7.87 in x 7.87 in x 1.97 in)
Weight 800 g (1.76 lbs)
Security Kensington lock slot
LEDs Multi-color status LEDs
Ambient Operation Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature-20ºC to 70ºC (-4ºF to 158ºF)
Humidity 95% RH non-condensing
Mount OptionsWall or ceiling, T-bar with included locking bracket, ceiling tile plate
Certifications (Compliance) Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2 Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum, EN 62311 Human Safety/RF Exposure, WEEE & RoHS
Network Spec
OperationalStandalone
ModesCloud managed cnMaestro or VM Cloud managed XMS
WLAN 512 clients, 16 SSIDs WPA3, WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF
Captive Portal Hosted on cnMaestro or External On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging
Authentication Encryption 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
Scheduled WLAN On/off by day, week, time of day
Guest Access EasyPass guest self-registration, guest Ambassador, ePSK, Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network
Data Limit Client bitrate/time/throughput limit per SSID
Subscriber QoS WMM
Fast Roaming 802.11r, OKC, Enhanced roaming
Mesh Multi-hop, either band
Channel Selection Multimodal channel selection with AutoChannel and AutoBand. Granular control of off-channel scan and channel selection
RF Management Multimodal RF optimization supporting AutoCell performed in the intelligent edge AP. Out-of-band RF spectrum analysis, radio self test network assurance, RF monitor with chn/noise/interference Data rate pruning and minimum data rates
Network TCP connection log, NAT logging firewall, DHCP server, L2, L3 or DNS based access control, VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
Band Steer Load Balance Yes
Tunnel L2TP, L2oGRE, PPPoE
Network and RF Management ToolsWired and wireles remote packet capture, auto logging, ZapD performance tool, rogue AP detection
Services NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure
Standards
Wi-Fi Protocols VHT MCS rates, 16/64/256/1024-QAM, 20/40/80 MHz TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO IEEE 802.11 a/ac/ax/b/d/e/g/h/i/k/n/r/u/v
