LightSaber Optics 12RU 24" Wide x 24" Deep OUTDOOR POLE Mount Cabinet, NEMA 4X Rated|Grey

  • SKU: LSO-12UOD-600600PM
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Fan Wiring Instructions: Download
  • 3 In Stock (updated live)
CA$‎738.53

Add-Ons (click to select)

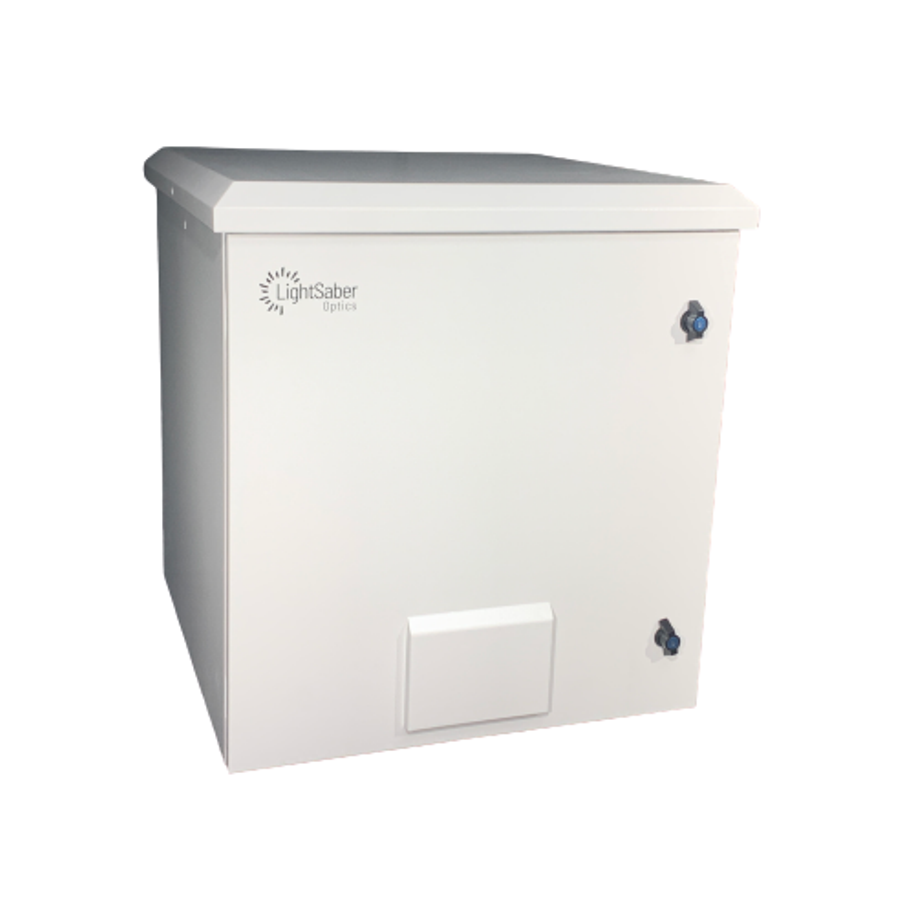

LightSaber Optics LSO-12UOD-600600PM

12RU 24" Wide x 24" Deep Outdoor POLE Mount Cabinet, NEMA 4X Rated|Grey

12U 24-INCH lockable outdoor wall mount server rack cabinets are ideal for applications where your expensive and sensitive network equipment is exposed environmental factors such as dust and water. The cabinet design allows natural wind cooling through filtered vents on the front door. For added protection, there is a water and dust proof polyurethane door joint strip.

The outdoor server rack also has a dual fan kit included in the roof with a dust proof cover greater airflow/cooling. The fans are serviceable by lifting pivoting rain hood, and the front door dust filters are easily accessible for cleaning. All fixtures are internal to the cabinet to provide a secure solution.


Features:

  • Fully assembled
  • 12U equipment space, NEMA 4X Rated

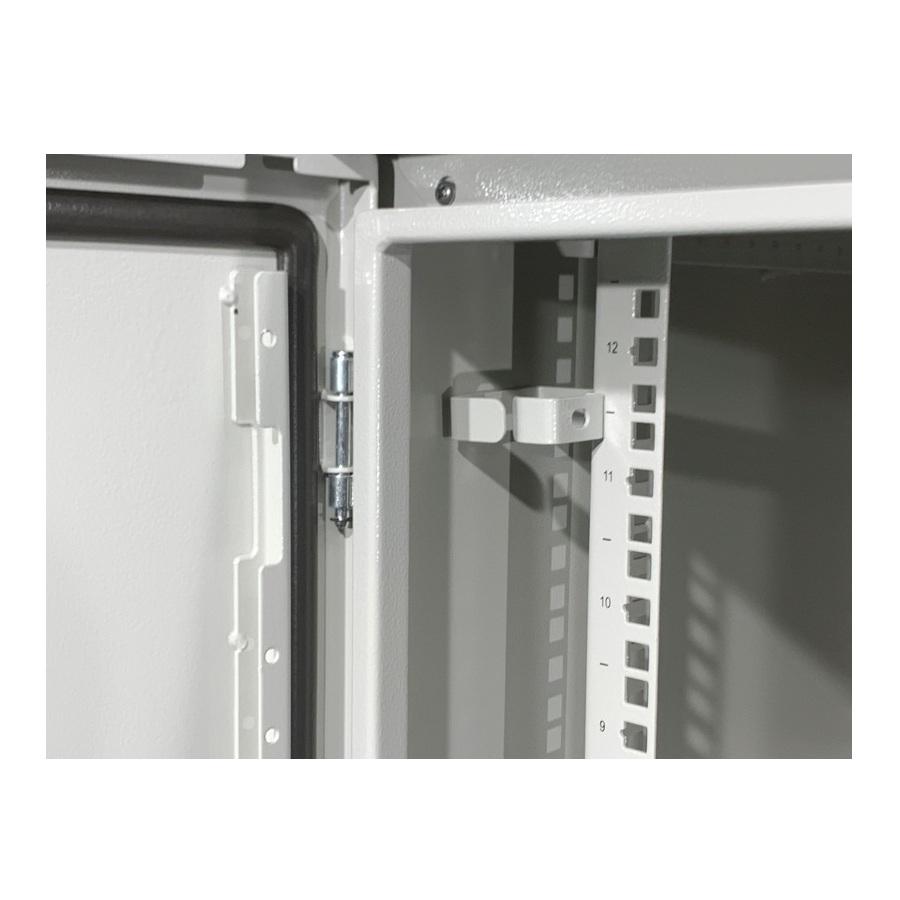

  • Reversible adjustable 19inch equipment rail, with cable rings included

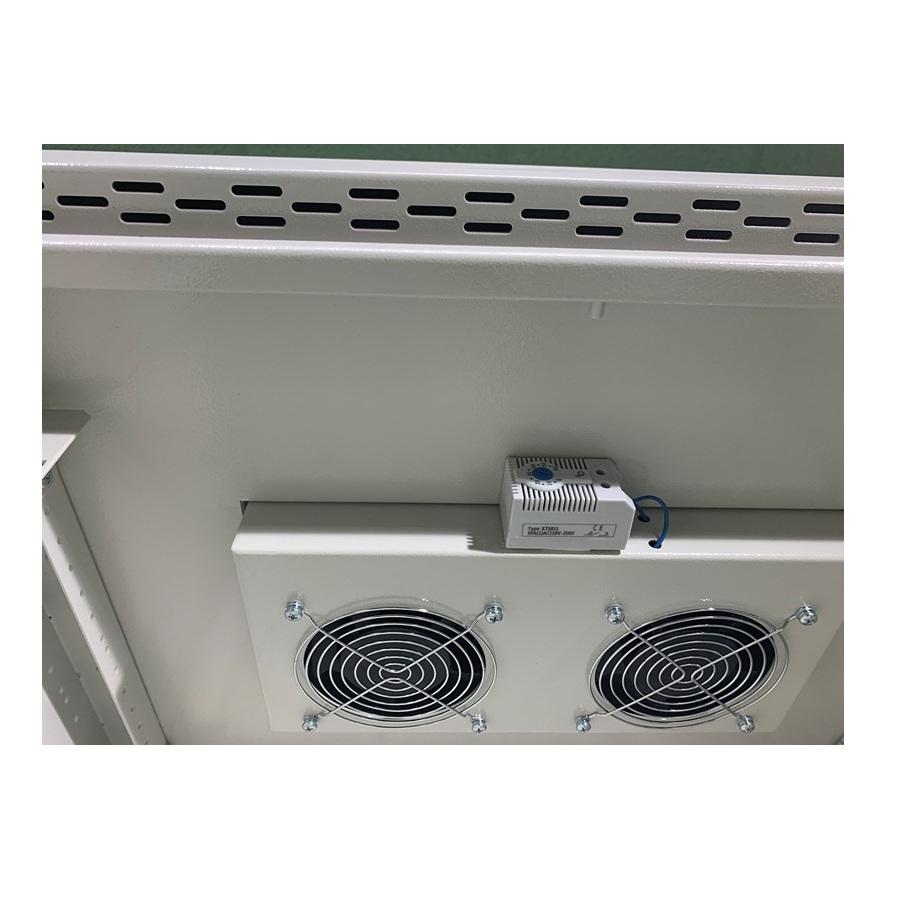

  • AC110V 60Hz Cooling Fan Unit (2 pcs) on the top roof(with temperature controller)

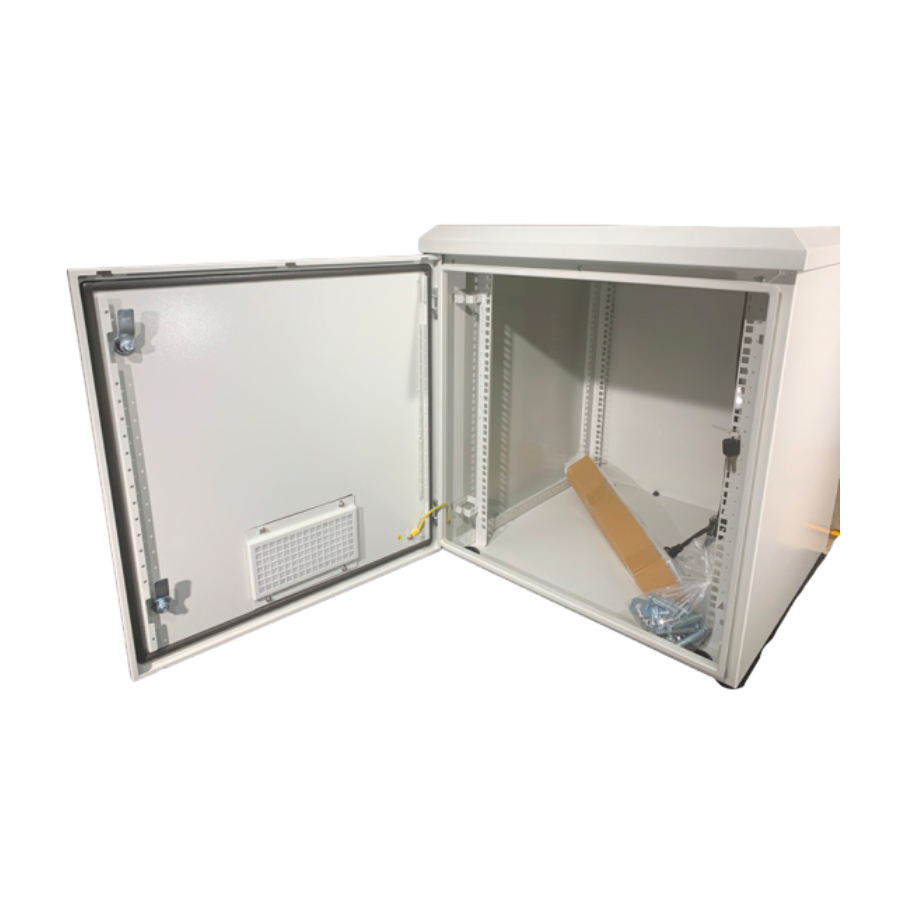

  • Front door opening access
  • Grounding wires
  • Cable entry holes with grommet on the bottom

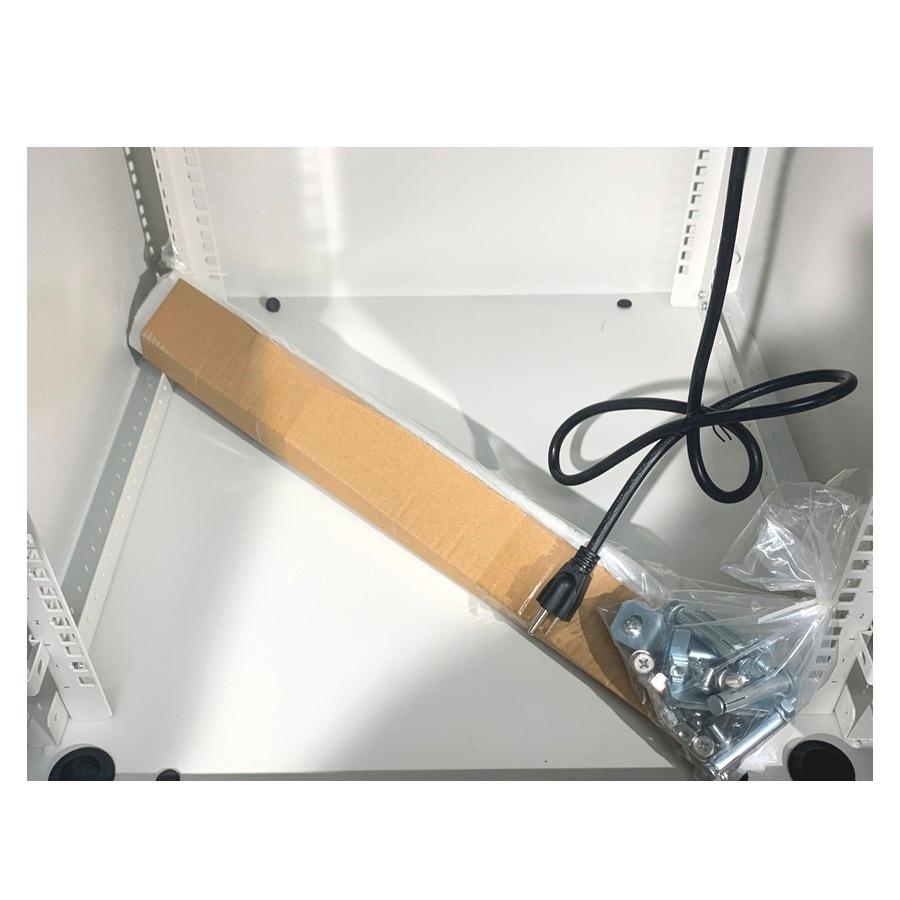

Also Includes:

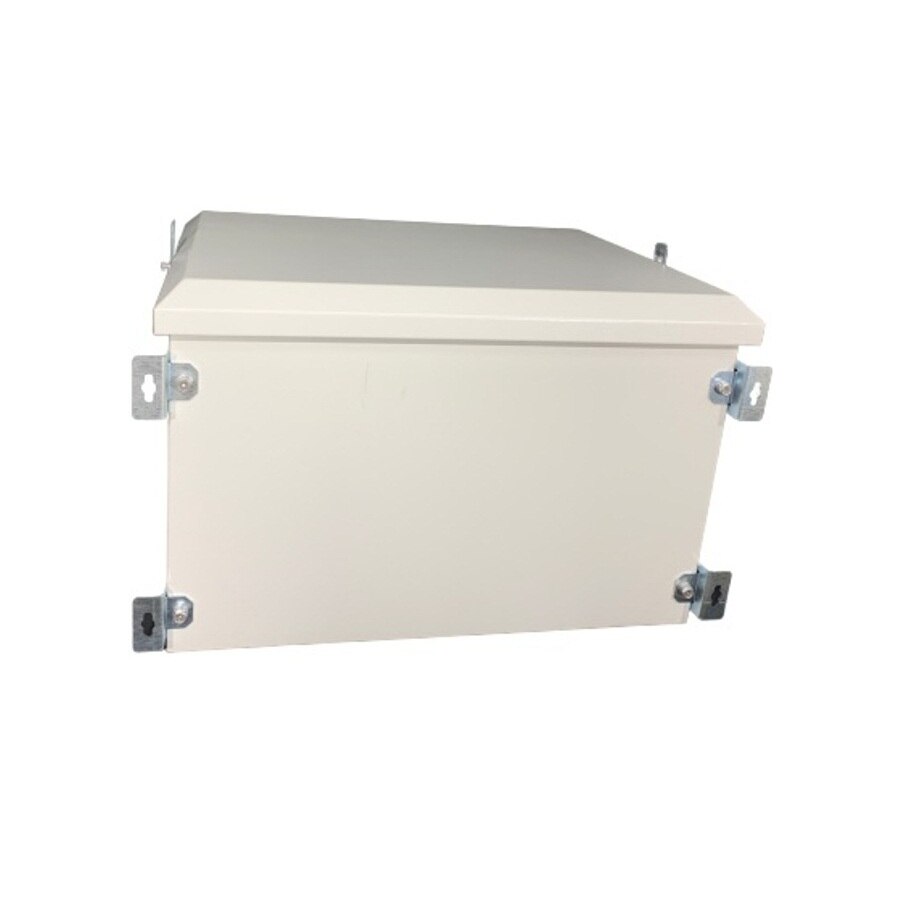

  • 4 x wall mount bracket(includes mounting hardware)
  • 2 x side lifting bracket (includes mounting hardware)

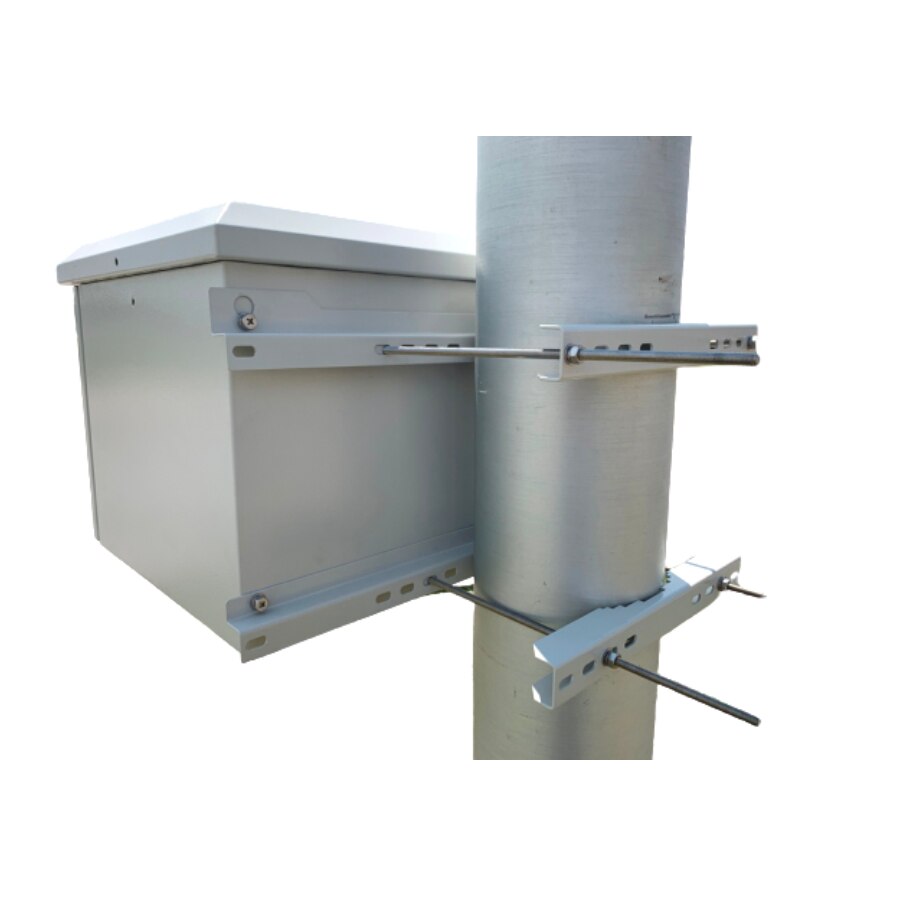

  • 1 x pole mount bracket kits (includes mounting hardware)
  • 10 x M6 cagenuts
  • 2 x Keys

Physical:

  • Water and dust proof polyurethane door joint strip
  • Wall mount accessories included
  • Fully welded design, supplied complete, no assembly required
  • Made from cold rolled steel
  • Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

Specifications LSO-12UOD-600600PM

Physical
Model name LSO-12UOD-600600PM
Protection Glass NEMA 4X
Rack Unit Size 12U
Cabinet Type Pole-Mount Outdoor Cabinet
Color Grey RAL7035
Material Cold-rolled Steel
Unit Dimension(WxDxH) 23.62 x 23.62 x 26.77 inches (without extrude rain roof dim.)
Unit Weight(lbs.) 98.96
Internal Depth (Front Rail to Back Door) 21.65 inches
Rail to Rail Depth 17.13 inches
Shipping Dimension(WxDxH) 26.77 x 26.77 x 29.13 inches
Shipping Weight(lbs.) 106.23
Electrical
Cooling AC110V Cooling Fans x 2 (with tem. controller)
Certifications
Safety CE
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Warranty
Product Warranty 1 Year
