LightSaber Optics 20RU 33.5" Wide x 31.5" Deep Outdoor Cabinet with AC 1000W (3.4K-Btu)Air conditioner NEMA 4X Rated|Grey

CA$‎4,708.53 CA$‎7,062.80
  • SKU: LSO-20UOD-850800-AC1000W-H
  • Manufacturer: LightSaber
  • Data Sheet: Download
  • Pad Mounting Procedure: Download
  • 6 In Stock (updated live)
CA$‎4,708.53 CA$‎7,062.80

Add-Ons (click to select)

LightSaber Optics LSO-20UOD-850800-AC1000W-H

20RU 33.5" Wide x 31.5" Deep Outdoor Cabinet with AC 1000W (3.4K-Btu)Air conditioner NEMA 4X Rated|Grey

Outdoor Telecommunication Cabinet with Air Conditioner (sandwich panel double-wall structure design) is mainly used for wireless communications to house a variety of batteries and equipment, including the new generation of 5G systems, LTE networks, communication networks/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.

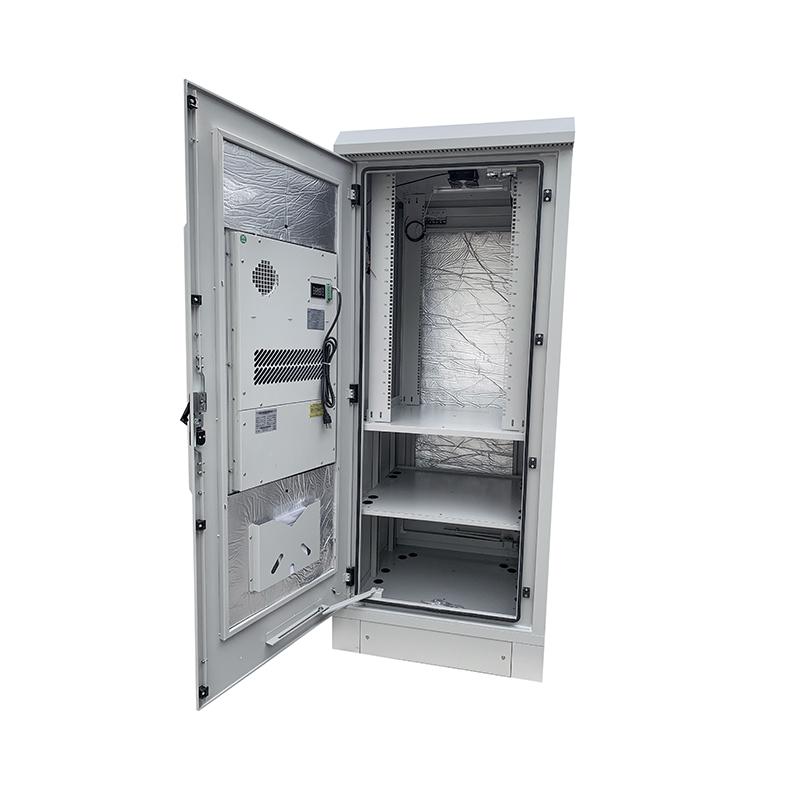

Air conditioner is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provides a secure, thermally managed environment for backup battery systems for telecommunications and cable applications.



  • Sandwich structure for better cooling effiency
  • 4-point locking system

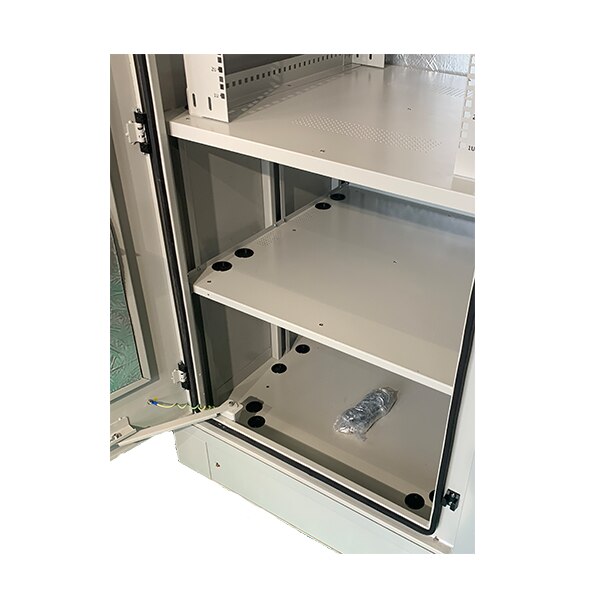

  • 20U equipment space plus 2 sections of battery storage space (13inch Height of each space);

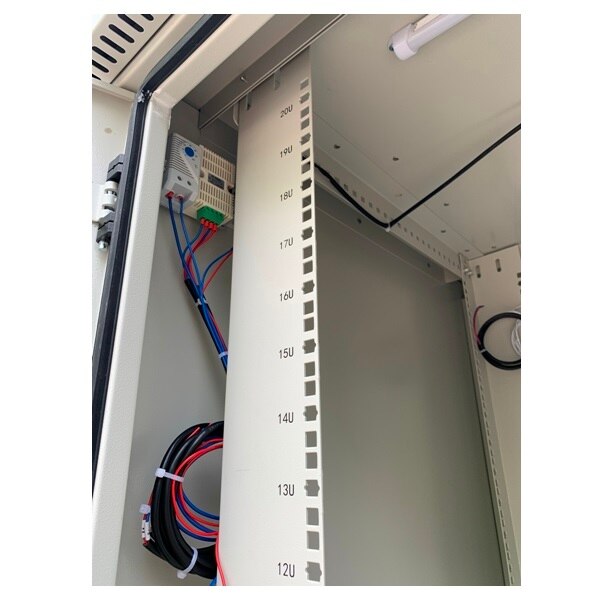

  • 19inch or 23inch equipment rail, with cable rings included (default configuration:19inch)
  • AC110V 60Hz 1000W(3400 BTU) Air conditioner(with heating function)

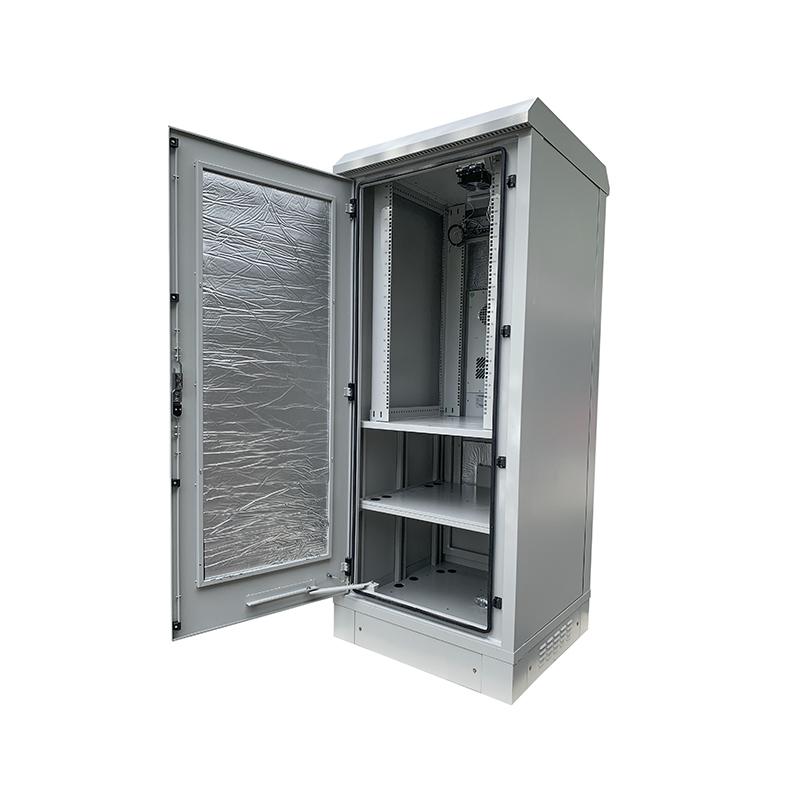

  • Front door and rear door opening access
  • Wind stop bracket to hold the doors when opening
  • Grounding copper bar
  • Document box at the rear door for store the equipment manual or useful document
  • Cable entry holes with gromment on the bottom

Also comes with:

  • 1x DC48V emergency fan (with temperature controller)
  • 2x DC48V LED lights( 1pcs at front top,1pcs at rear top)
  • 2x Front Door alarm sensors and 2 x rear door alarm sensors (1 sensor is connecting to the DC48V LED light, the light will be ON when the door opens and OFF when the door closed; 1 sensor is optional pre-configured with the EMS unit)
  • 30 x M6 cagenut

Specifications LSO-20UOD-850800-AC1000W-H

Protection GlassIP55
Rack Unit Size20U
Battery Space12.83 inches ( 2 Sections)
Cabinet TypeFloorstanding Integrated Outdoor Cabinet w/ Air conditioner
ColorGrey RAL7035
MaterialGalvanized Steel
Unit Dimension(WxDxH)33.46 x 31.50 x 80.24 inches (without extrude rain roof dim.)
Unit Weight(lbs.)484.88
Internal Depth (Front Rail to Back Door)24.72 inches
Rail to Rail Depth23.81 inches
Shipping Dimension(WxDxH)37.01 x 43.31 x 88.11 inches
Shipping Weight(lbs.)584.06
CoolingAC110V/60Hz, 1000W (3400 BTU) air conditioner (Refrigerant: R134a)

DC48V Cooling Emergency Fans x 1 (with tem. controller)
GroundingEarthing Copper Bar,Grounding Wires
OtherDC48V LED Lights (x2)
ApprovalsDIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
Product Warranty1 Year
