  • MikroTik Chateau LTE6-US LTE6 support for speeds up to 300 Mbps with 5x Gigabit Ethernet ports

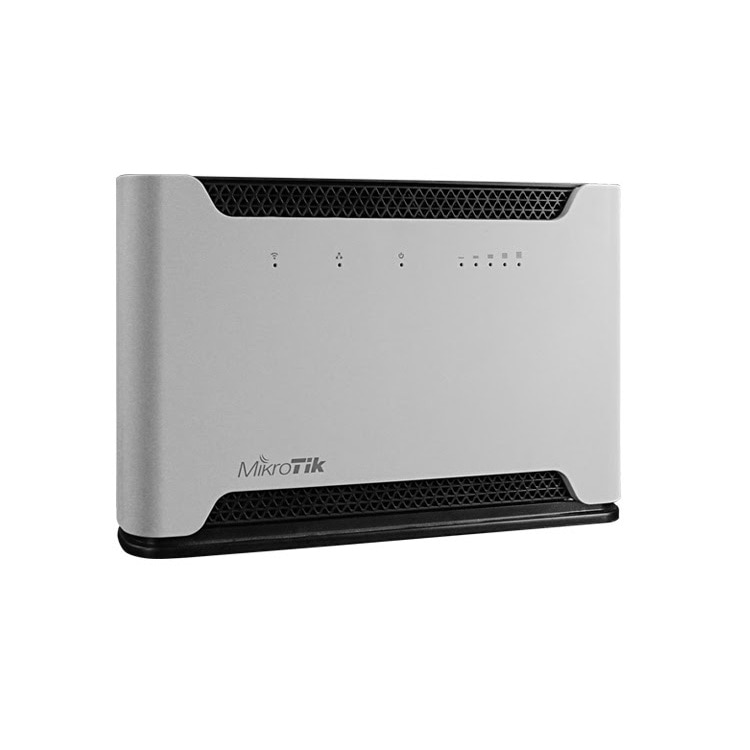

MikroTik Chateau LTE6-US LTE6 support for speeds up to 300 Mbps with 5x Gigabit Ethernet ports

CA$‎248.43 CA$‎256.11
  • SKU: D53G-5HacD2HnD-TC&EG06-A
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • 7 In Stock (updated live)
CA$‎248.43 CA$‎256.11

MikroTik D53G-5HacD2HnD-TC&EG06-A

Chateau LTE6-US LTE6 support for speeds up to 300 Mbps with 5x Gigabit Ethernet ports

Let’s face it – most of the standard mass-produced access points can’t really satisfy the extremely diverse client base – they either lack features, users want more speed and higher gain, they look weird with all the spikes and antennas all over the place.. We decided to take all the aspects that truly matter to most home users and create a single device that will make them happy: the MikroTik Chateau.

Remove the bottleneck in your mobile setup

With new rural relocation programmes popping up everywhere, more people have started moving to the countryside – away from the stress and challenges of busy urban areas. Should they be limited by the slower connectivity without the city cable networks, potentially risking all kinds of opportunities in education, entrepreneurship, and even hobbies? Absolutely not!

For most rural households, the limiting factor is a cheap, mass-produced LTE router that can’t handle even a fraction of what the local LTE tower could offer. Chateau is designed to solve these problems. Here’s an example: the leading mobile operator in Latvia – LMT – started swapping out their previous client routers. Our Chateau replaced the usual brands. And customer satisfaction went through the roof – just like that! Same LTE towers, same data plans, and a brand new Chateau. What is the point of having brand new phones, excellent LTE coverage, high-end laptops, and so on... if your old router is the bottleneck?

The freedom of LTE

Reach consistent speeds of up to 300 Mbps with carrier aggregation, as CAT6 allows devices to use multiple bands simultaneously. That is a huge advantage in areas with many LTE users. Chateau LTE6 provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. Depending on the service provider, we have seen Internet speed doubling in rural areas after switching to carrier aggregation, so there is no need to wait for cable network expansions.



Perfect for all walks of life

Chateau comes with all the advanced RouterOS features, so you’re getting enterprise-level solutions with consumer-grade pricing. Run a secure VPN from the office directly to your home, enable all kinds of parental control, dive deep into specific firewall rules and IPsec hardware acceleration, configure VLANs, set up e-mail or SMS notifications... You can even automate complex trigger notifications. For example: “WARNING, WARNING! Your bandwidth has reached X amount for Y duration!” If you can imagine it – RouterOS can achieve it.



However, if you don’t need all the complex stuff – Chateau can still be your best friend. In fact, this is the best choice for mobile operators that don’t want their clients to do any configuration. Chateau supports the TR-069 technology that allows creating custom remote client management options. You can have the most straightforward and basic router settings on the same web-page that you are using to pay the mobile bill. And we offer different label or printed branding options on volume orders.



Features:

  • 5X Gigabit Ethernet Ports
  • Brand New Lte Category 6 Modem
  • Lte Connections Up To 300 Mbps
  • Strong Dual-Band, Dual-Chain Radio For Maximum Coverage
  • Powerful Quad-Core Arm CPU

Specifications D53G-5HacD2HnD-TC&EG06-A

CPUIPQ-4019 488-896 MHz auto
CPU architectureARM 32bit
CPU core count4
Size of RAM256 MB
RAM typeDDR3L
Storage16 MB, Flash
Number of 1G Ethernet ports5
USB1 USB 2.0 port type A
Switch chip modelIPQ-4019
Wireless2.4 GHz 802.11b/g/n dual-chain, 5 GHz 802.11a/n/ac dual-chain
Wireless antenna max gain2.4 GHz (3 dBi), 5 GHz (5.5 dBi)
Antenna beam width360°
LTE category6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE modemEG06-A
TAC01619900
LTE FDD bands2 (1900MHz) / 4 (1700MHz) / 5 (850MHz) / 7 (2600MHz) / 12 (700MHz) / 13 (700 MHz) / 25 (1900MHz) / 26 (850MHz) / 29 (700 MHz) / 30 (2300 MHz) / 66 (1700MHz)
3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G Bands2 (1900MHz) / 5 (850MHz)
Dimensions240 x 156 x 44 mm
Operating systemRouterOS, License level 4
Operating temparature-40°C to +70°C
Powering
Number of DC inputs1
DC jack input Voltage12-28 V
Power adapter nominal voltage24 V
Power adapter nominal voltage1.2 A
Max power consumption without attachments14.3 W
Max power consumption19 W
Supported 2xCA LTE bands
B2 + B2/B5/B12/B13/B29B4 + B4/B5/B12/B13/B29
B7 + B5/B7/B12/B26B25 + B5/B12/B25/B26
B30 + B5/B12/B29B66 + B5/B12/B13/B29/B66

Wireless specifications
Rate(2.4 GHz)Tx (dBm)Receive Sensitivity
1MBit/s25-100
11MBit/s25-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
Rate (5 GHz)Tx (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s22-80
MCS026-96
MCS721-75
MCS919-70
