  • MikroTik CRS318-16P-2S+OUT netPower 16P with RouterOS L5 license

MikroTik CRS318-16P-2S+OUT netPower 16P with RouterOS L5 license

CA$‎368.39 CA$‎379.79
  • SKU: CRS318-16P-2S+OUT
  • Manufacturer: MikroTik
  • Data Sheet: Download
  • 2 In Stock (updated live)
CA$‎368.39 CA$‎379.79

Add-Ons (click to select)

MikroTik RouterBOARD CRS318-16P-2S+OUT

netPower 16P with RouterOS L5 license

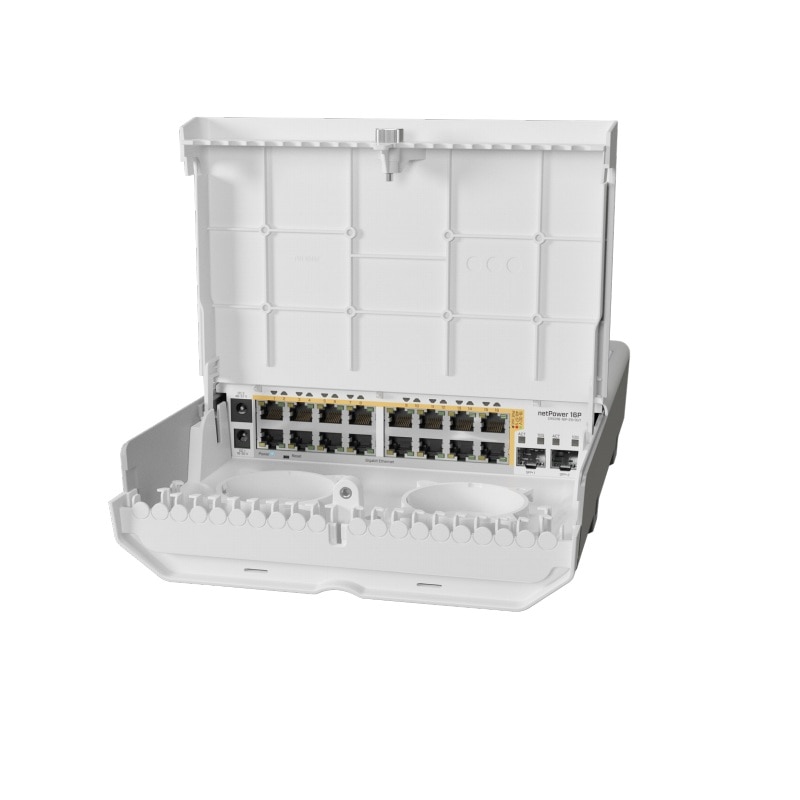

Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P in an outdoor 18 port switch with 16 Gigabit PoE-out ports and 2 SFP+ for 1G/10G fiber connections.

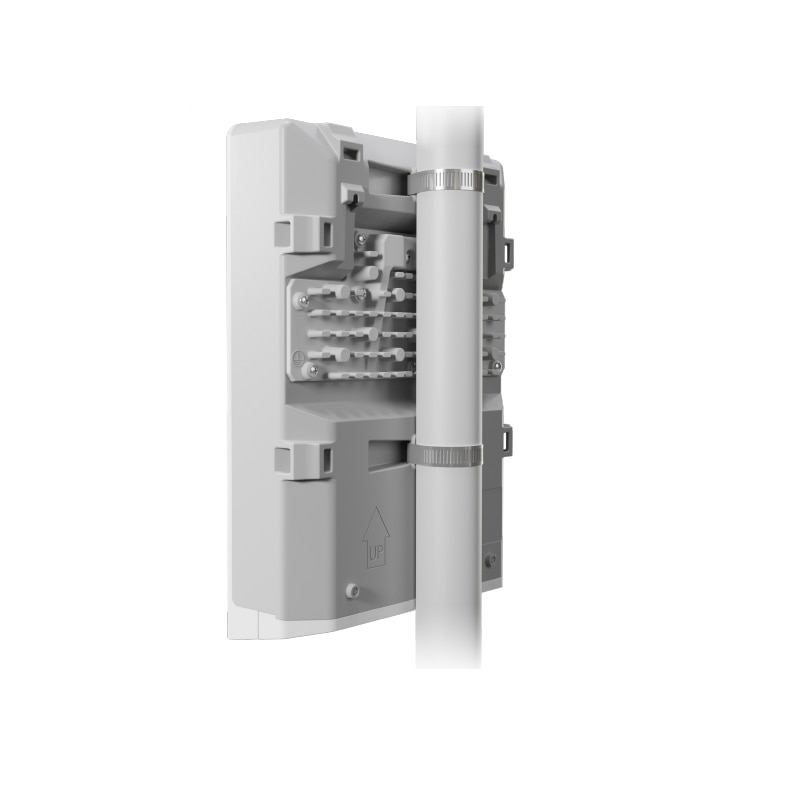

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.

netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps, and forwarding rate of 53.6 Mpps.


Features:

  • 16 Gigabit Ethernet ports
  • 2 SFP + ports for uplinking

Specifications CRS318-16P-2SOUT

Product code CRS318-16P-2S+OUT
CPU 98DX226S, 800 MHz
CPU temperature monitor Yes
Size of RAM 256 MB
Storage 16 MB flash
Switch chip model 98DX226S
Number of 1G Ethernet ports 16
Number of 10G SFP+ ports 2
Operating system RouterOS (License level 5) / SwOS (dual boot)
Dimensions 303 x 212 x 78 mm
Operating temperature -40°C to +70°C
Powering
PoE-out 802.3af/at
PoE-out ports Ether1 - Ether16
Max out per port output (input < 30 V) 1.1 A
Max out per port output (input > 30 V) 0.6 A
Max total out (A)The total output power limit will also depend on your power supply max current limit. You should not exceed your power supply current limit or the board may reboot
Number of DC jacks 2
Supported input voltage 18 - 57 V
Max power consumption 316 W
Max power consumption without attachments 16 W
Certification IP55
