Mikrotik Dual chain 5GHz 802.11a/n/ac QCA9882, 128MB RAM, 720 MHz CPU, 25dBi antenna gain

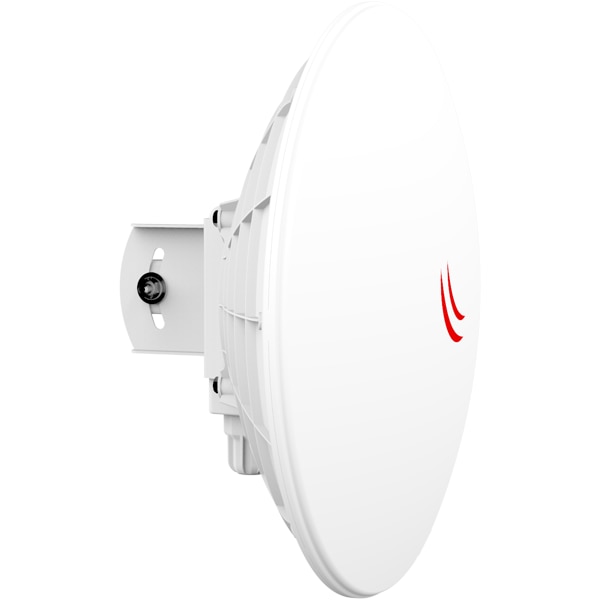

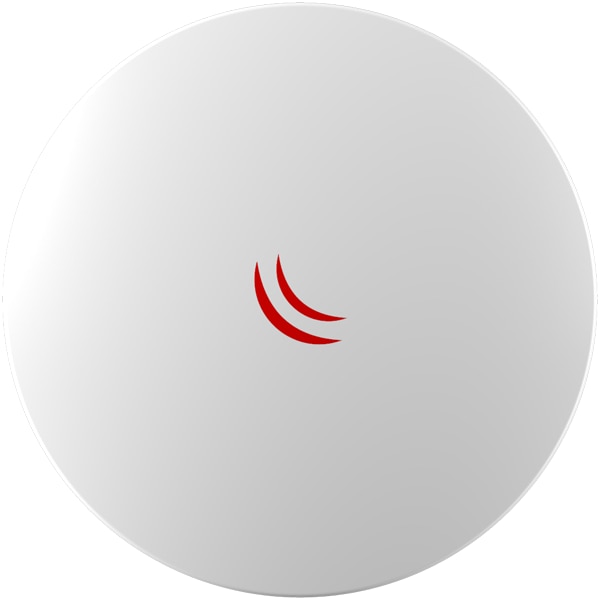

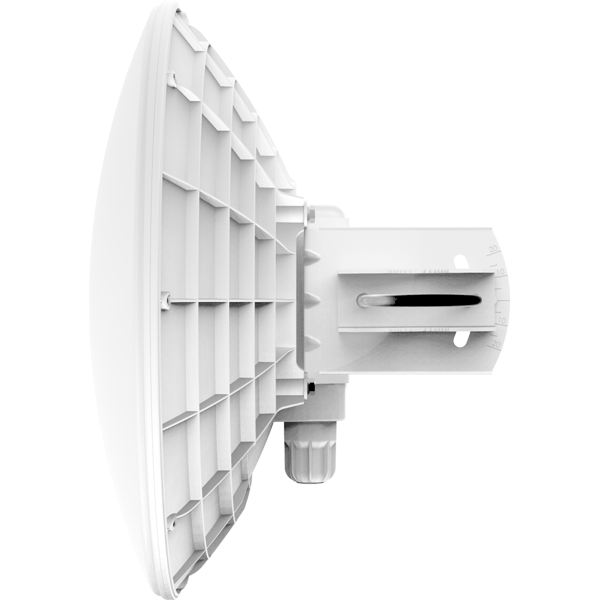

Mikrotik RouterBOARD RBDynaDishG-5HacD (International Version)
5GHz DynaDish 23dBi 802.11ac Outdoor device
The DynaDish 5 is a new 802.11ac outdoor device with an integrated antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
The antenna is a 8 degree 25dBi dish, and it includes a precise alignment mount, ideal for long range point to point wireless links.
- Ideal for long distance point-to-point links
- 5GHz dual chain board integrated into 25dBi dish antenna with 8 degree beam width
- 720Mhz CPU 300MHz DDR2
- one Gigabit Ethernet port
|CPU Nominal Frequency||720 MHz|
|CPU Core Count||1|
|Size of Ram||128 MB|
|10/100/1000 Ethernet Ports||1|
|Wireless||Built-in 5GHz 802.11ac, dual-chain|
|Antenna Beam Width||8°|
|Wireless Chip Model||QCA9882-BR4A-R|
|Supported Input Voltage||11V - 60V passive PoE or 802.3af/at with unshielded cable|
|PCB Temperature Monitor||Yes|
|CPU Temperature Monitor||No|
|Dimensions||Ø 404mm, height 175mm (without mount)|
|Max Power Consumption||9W|
|Supported input voltage||11 V - 60 V|
|RATE||Tx (dBm)||Rx (dBm)|
