MikroTik mANTBox ax 15s 2.4/5 GHz Wi-Fi 6, Dual-Core IPQ-5010 800 MHz, 256 MB RAM, RouterOS v7, License level 4
- SKU: L22UGS-5HaxD2HaxD-15S
- Manufacturer: MikroTik
- Data Sheet: Download
- 15 In Stock (updated live)
Product Information
- Description
- Specifications
MikroTik RouterBOARD L22UGS-5HaxD2HaxD-15S
mANTBox ax 15s 2.4/5 GHz Wi-Fi 6, Dual-Core IPQ-5010 800 MHz, 256 MB RAM, RouterOS v7, License level 4

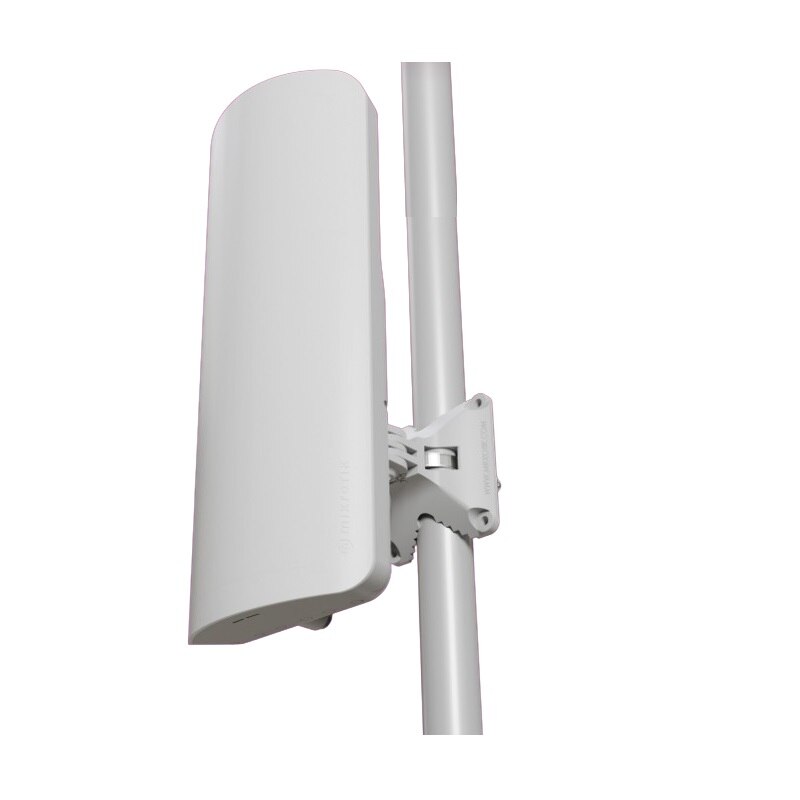

A drop-in Wi-Fi 6 upgrade for the popular mANTBox dual-band sector antenna base stations. One powerful package for all your outdoor network needs, perfect for camps, stadiums and parks!
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!
A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
- Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
- Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks.
- Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
- Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!
mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
Features:
- Strong Dual-Chain Dual-Band
- Durable, Weatherproof Enclosure
- Gigabit Ethernet
- Usb Port
- 2.4/5 Ghz Wi-Fi 6
- Modern Dual-Core ARM CPU
- Poe-In (Injector Included!), DC Jack
- Sfp with 2.5G Support
- Ipsec Hardware Offloading
- Distance Up To 20 Km
Specifications
| CPU | Dual-Core IPQ-5010 800 MHz |
| CPU architecture | ARM |
| Size of RAM | 256 MB |
| Storage | 128 MB, NAND |
| Number of 1G Ethernet ports | 1 |
| Number of 1G SFP ports | 1 (2.5G supported) |
| USB port | 1 USB 2.0 port type A |
| Wireless interface model | IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) |
| Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna gain | 2.4 GHz - 12 dBi, 5 GHz - 15 dBi |
| Dimensions | 349 x 140 x 82 mm (13.70 x 5.51 x 3.22 inch) |
| Operating system | RouterOS v7, License level 4 |
| Operating temperature | -40°C to +70°C |
| Powering | |
| Number of DC inputs | 2 (PoE-In, DC jack) |
| PoE-In input Voltage | 18-28 V |
| DC jack input Voltage | 12-28 V |
| Max USB current | 1.5 A |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| PoE-In | Passive PoE |
| Max power consumption (without attachments) | 11 W |
| Max power consumption | 21 W |
