MikroTik 6GHz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot
Product Information
- Description
- Specifications

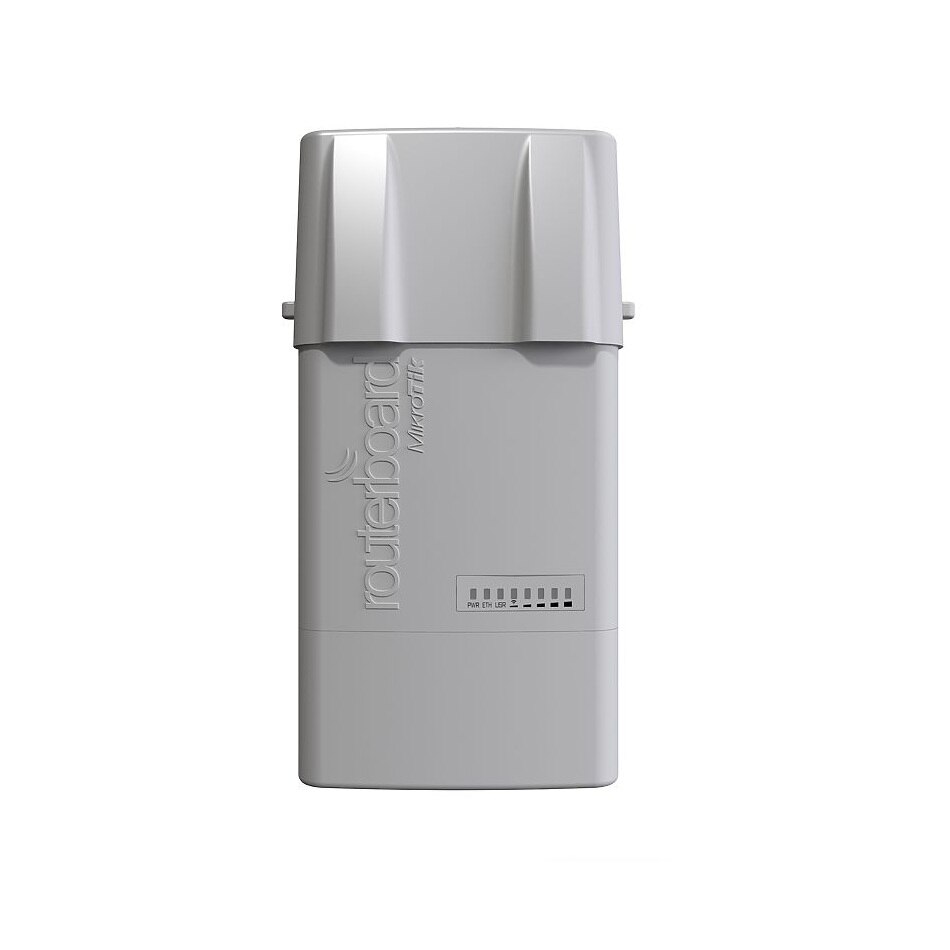

MikroTik RouterBOARD RB912UAG-6HPnD-OUT
6GHz integrated AP/Backbone/CPE, 2xRPSMA connectors, miniPCI-e slot, Gigabit Ethernet

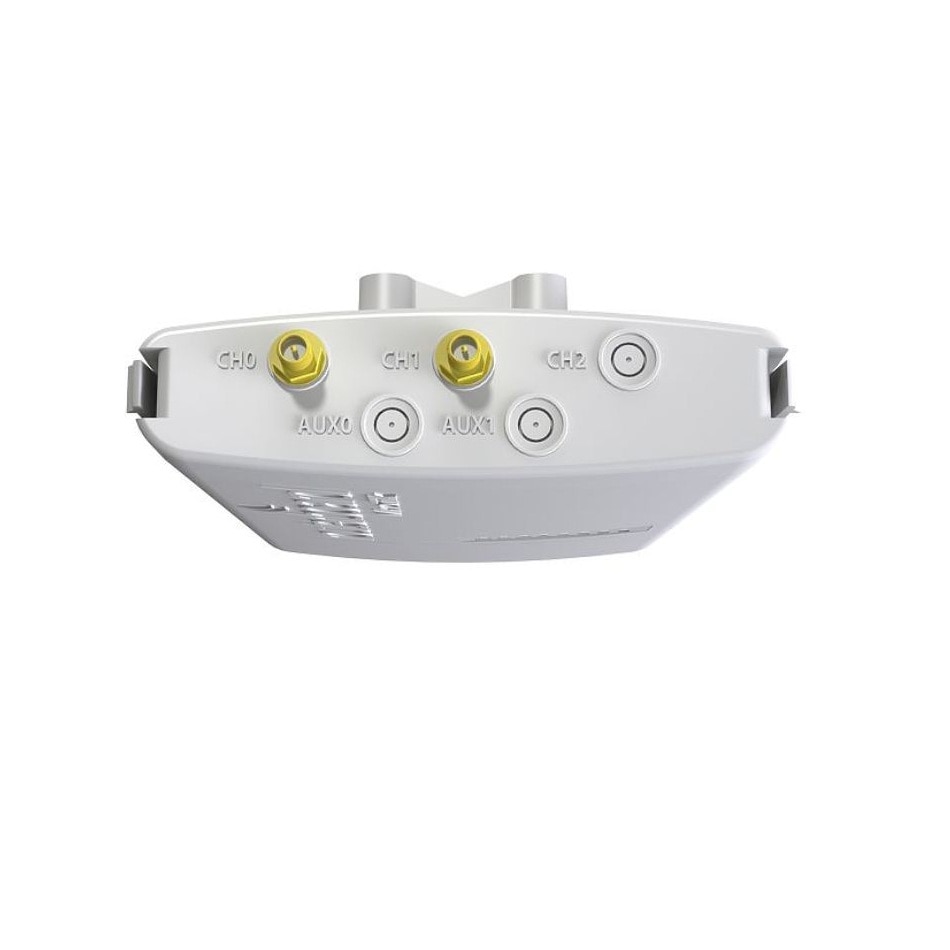

The BaseBox 6 in an outdoor wireless device based on our popular RB912 model, fitted with two SMA connectors for antennas and a cable hood for protection against moisture. Also available are three additional places for antenna connectors in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual-band device, or a 3G/4G modem. The case can be opened with one hand, and is protected against the elements. USB, Ethernet, and a grounding wire exits are provided on the bottom, behind a protective door.
The BaseBox 6 model operates in the 6 GHz wireless spectrum in regions where this range is available.
Designed to use as a 6GHz AP with our 6GHz CPEs, like DynaDish 6 and SXT 6.
IMPORTANT! The product is available for 5.9-6.4GHz license holders only. You would need to show your license to the Distributor to be able to place your order.
It has a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. The package also includes a PoE injector and power supply unit.
Specifications RB912UAG-6HPnD-OUT
| CPU | AR9342 |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage | Flash 64 KB, NAND 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless | 6 GHz 802.11a/n, dual-chain |
| Frequency range | 5.9 - 6.4 GHz |
| Wireless chip | AR9342 |
| Antenna headers | 2, RP-SMA connectors |
| PoE in | Yes |
| Supported input voltage | 10 - 30 V |
| USB | 1 USB type A, max 1 A |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Beeper | Yes |
| SIM slot | Yes, Mini SIM |
| miniPCIe slot | 1 |
| Dimensions | 246 x 135 x 50 mm |
| Operating temperature | -40°C .. +70°C tested |
| Max power consumption | 23 W |
| License level | 4 |
| Operating System | RouterOS |
