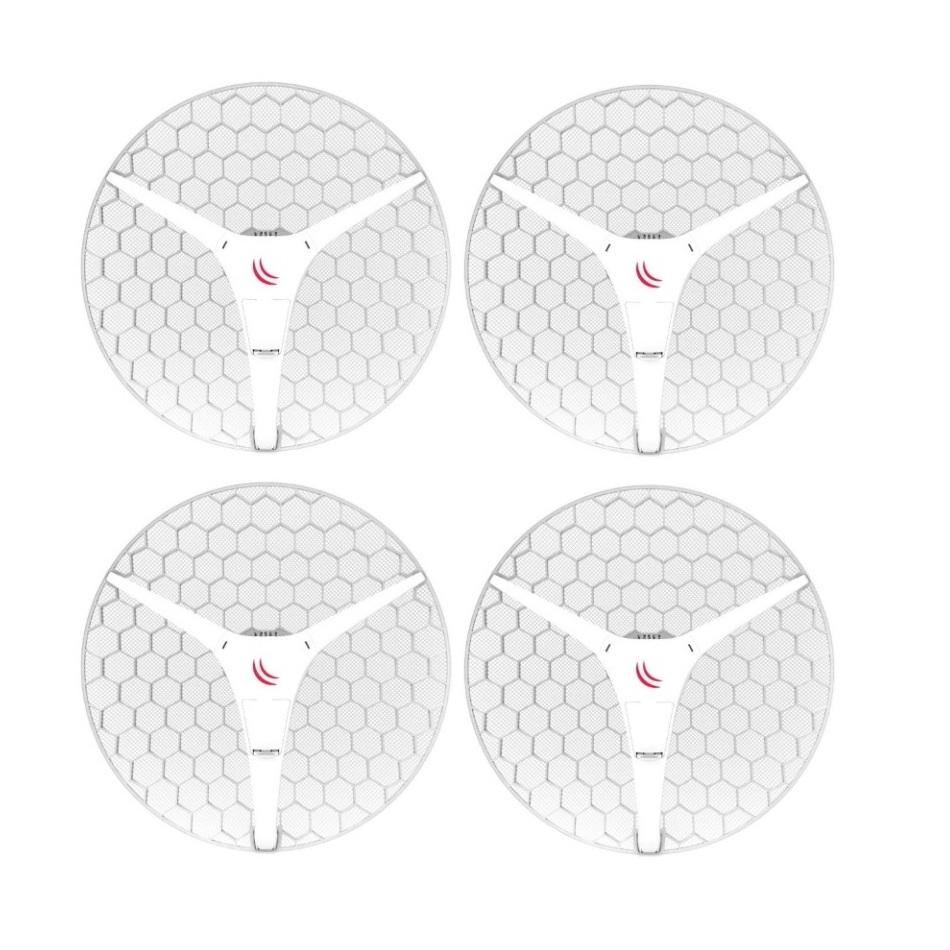

MikroTik RBLHG-5HPnD-XL4pack-US LHG XL HP5 (4-pack)
CA$497.01 CA$512.38
Product Information
- Description
- Specifications

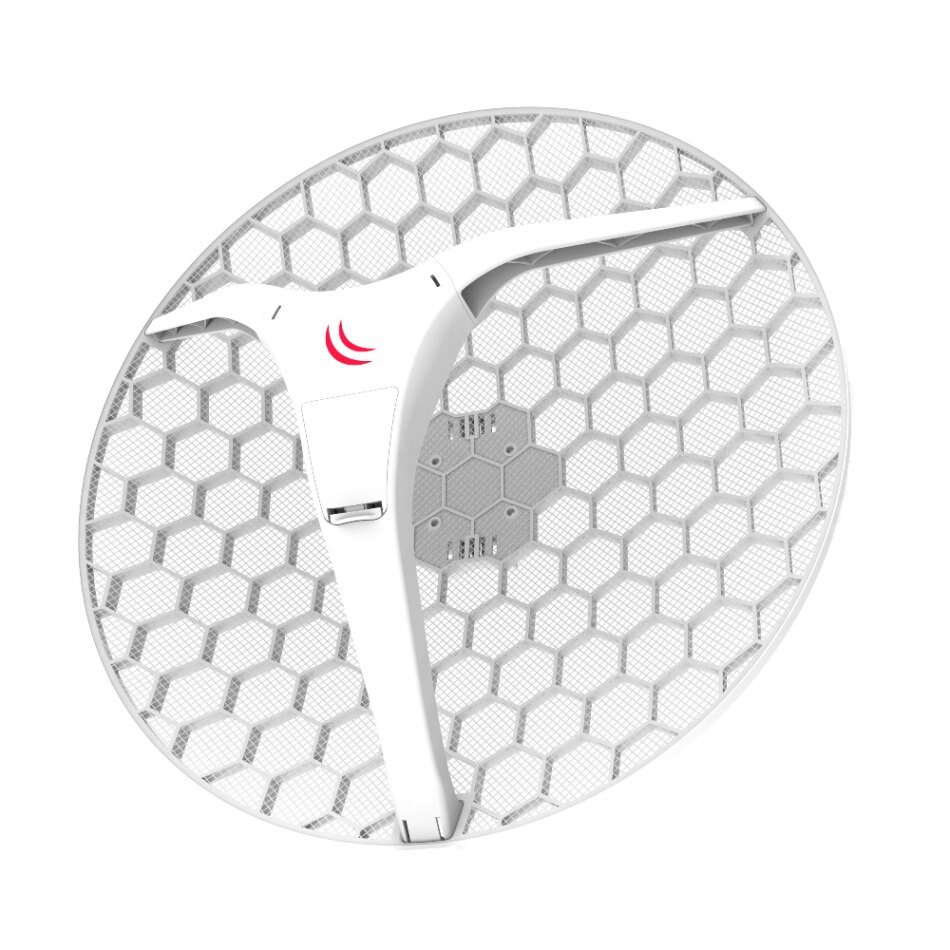

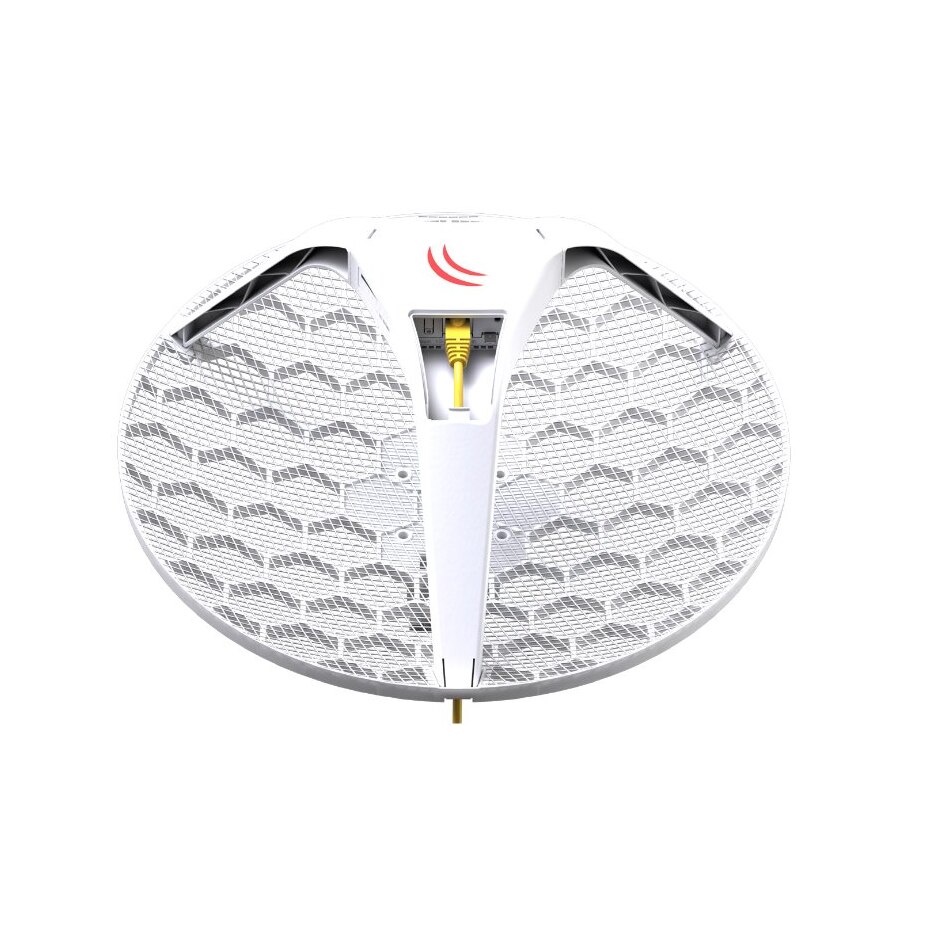

MikroTik RouterBOARD RBLHG-5HPnD-XL4pack
LHG XL HP5 with 5GHz 27dBi antenna, Dual Chain High Power 802.11an wireless, 600MHz CPU, 64MB RAM, 1x LAN, POE, PSU, RouterOS L3
We are adding two new models to our LHG product family, the LHG HP5 (high power) and LHG XL HP5 (extra large, high power). LHG HP5 comes with two times more output power than our regular LHG 5 - up to 630 mW, and is designed to reach up to 60% longer distances.
The LHG XL HP5 has a bigger 27dBi antenna with 630mW TX output power, designed to reach up to 40km in point-to-point setups at full speed.
All units come with a PoE injector, power supply and pole mount, ready to be deployed.
Specifications RBLHG-5HPnD-XL4pack
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage | 16 MB Flash |
| 10/100 Ethernet ports | 1 |
| Wireless | Built-in 5 GHz 802.11a/n, dual-chain |
| Wireless chip model | AR9344 |
| Operating frequency | International: 5150 - 5875 MHz USA: 5170 - 5250 MHz; 5725 - 5835 MHz |
| Antenna gain | 27 +/- 0.5 dBi |
| Antenna beam width | 6,4° |
| Cross polar | 21 dBi |
| Port to port isolation | 18 dB |
| Front to back ratio | 35 dB |
| Return loss | 14 dB |
| VSWR | 1.5:1 |
| PoE in | Yes |
| Supported input voltage | 10 V - 28 V (passive PoE) |
| ind loading | 186N @ 205 km/h |
| Operating temperature | -40 to 70° C |
| Operating humidity | 5 to 95% noncondensing |
| Shock and vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| Dimensions | Ø 550 x 245 mm; package 585 x 595 x 138 mm |
| Weight | Unit: 945 g; package: 2.99 kg |
| Max Power consumption | 7 W |
