MikroTik RBLHGR&R11e-4G LHG 4G kit 21dBi, 64MB RAM, 650MHz CPU
Product Information
- Description
- Specifications

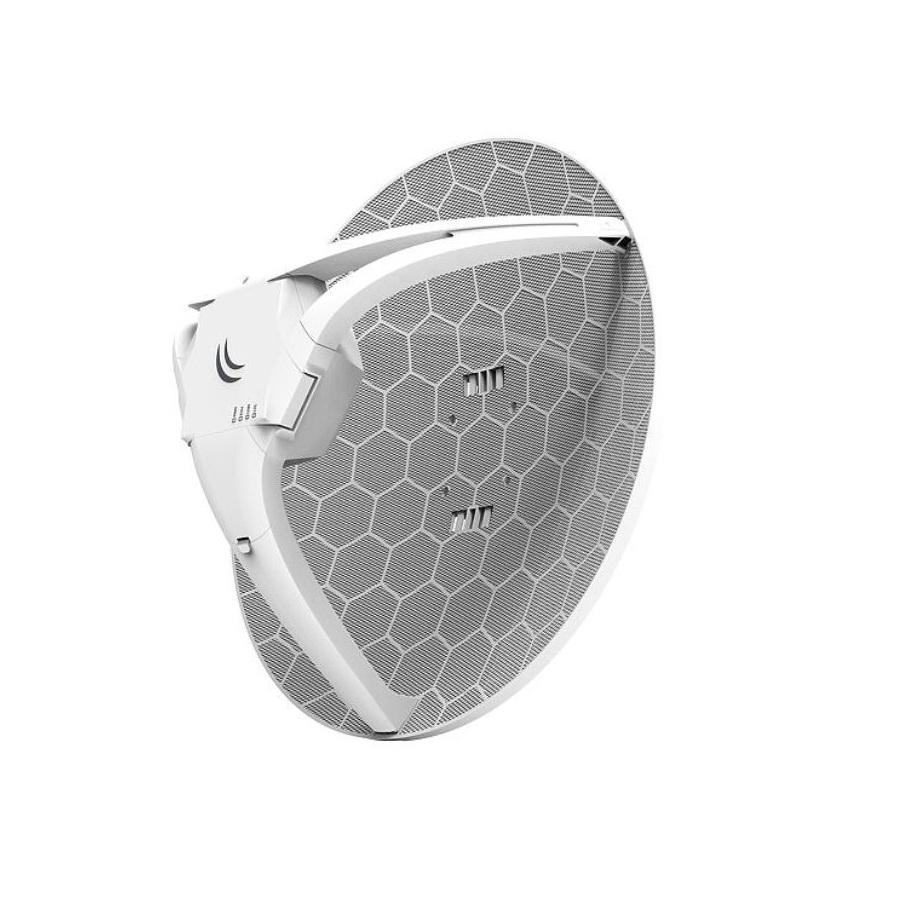

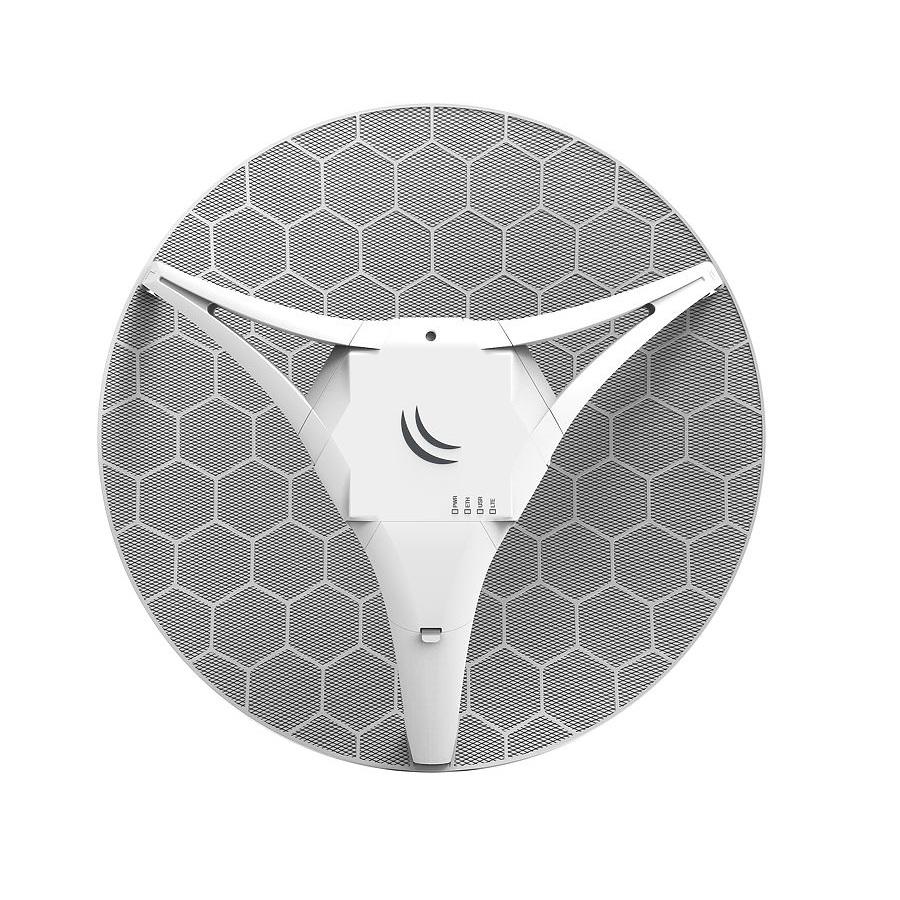

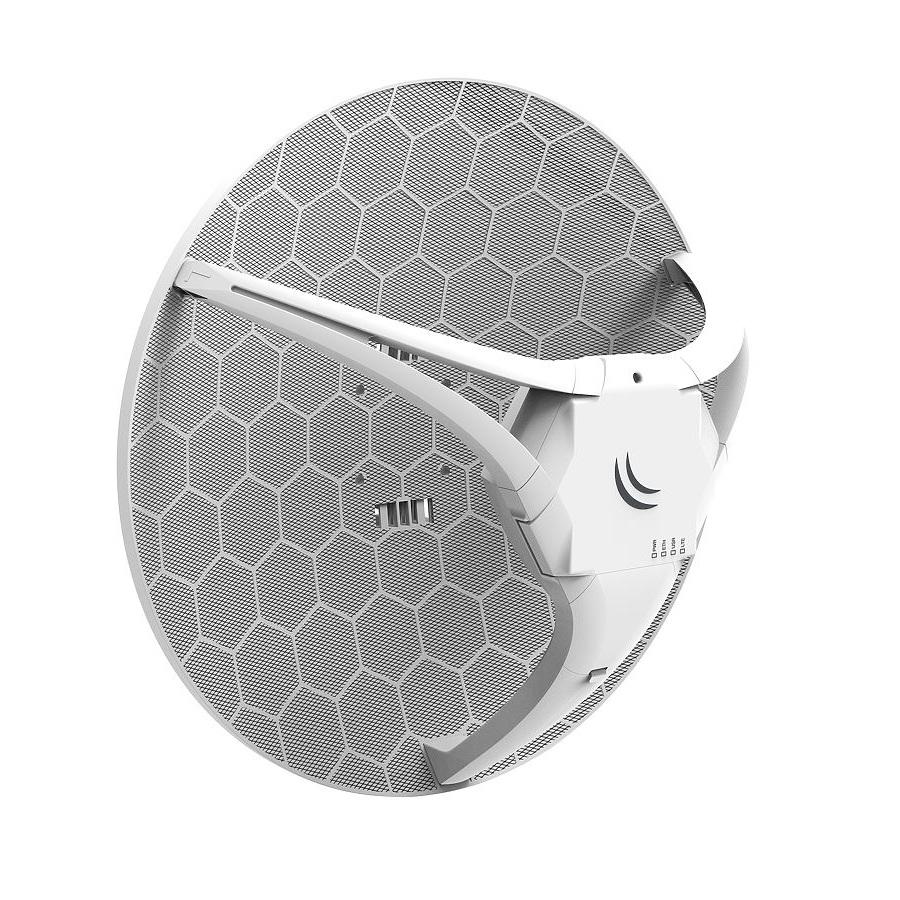

MikroTik RouterBOARD RBLHGR&R11e-4G
LHG 4G kit 21dBi, 64MB RAM, QCA9531 650 MHz CPU, RouterOS L3
LHG 4G kit (RBLHGR&R11e-4G) includes LTE modem that supports LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).
The LHG LTE kit is a device for remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any high enough structure, and connect even where cell phones can’t. Due to it’s large sized high gain antenna, the device is capable to connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The unit is equipped with one Ethernet port, has a built in high quality Category 4 modem for speeds of up to 150 Mbit/s downlink and 50 Mbit/s uplink.
Specifications RBLHGR&R11e-4G
| CPU | QCA9531 650 MHz |
| Size of RAM | 64 MB |
| Storage 16 MB | Flash |
| 10/100 Ethernet ports | 1 |
| LTE antenna gain | 21 dBi |
| Antenna beam width | 25° |
| LTE category | 4 (150Mbps Downlink, 50Mbps Uplink) |
| SIM slot | 1 (Mini SIM) |
| PoE in | Yes |
| Supported input voltage | 12 - 57 V (Passive PoE, 802.3af/at) |
| Dimensions | 391 x 391 x 227 mm |
| Operating temperature | -40°C .. +60°C tested |
| License level | 3 |
| Operating System | RouterOS |
| Max Power consumption | 6 W |
| Supported bands | RBLHGR&R11e-4G |
| LTE (FDD) bands | 3/7/20/31 (1800/2600/800/450) |
| LTE (TDD) bands | 41n/42/43 (2500/3500/3700) |
