MikroTik RBMetalG-52SHPacn Metal 52 802.11ac Gigabit Dual Band Access Point INTL
CA$166.14 CA$171.27
Product Information
- Description
- Specifications

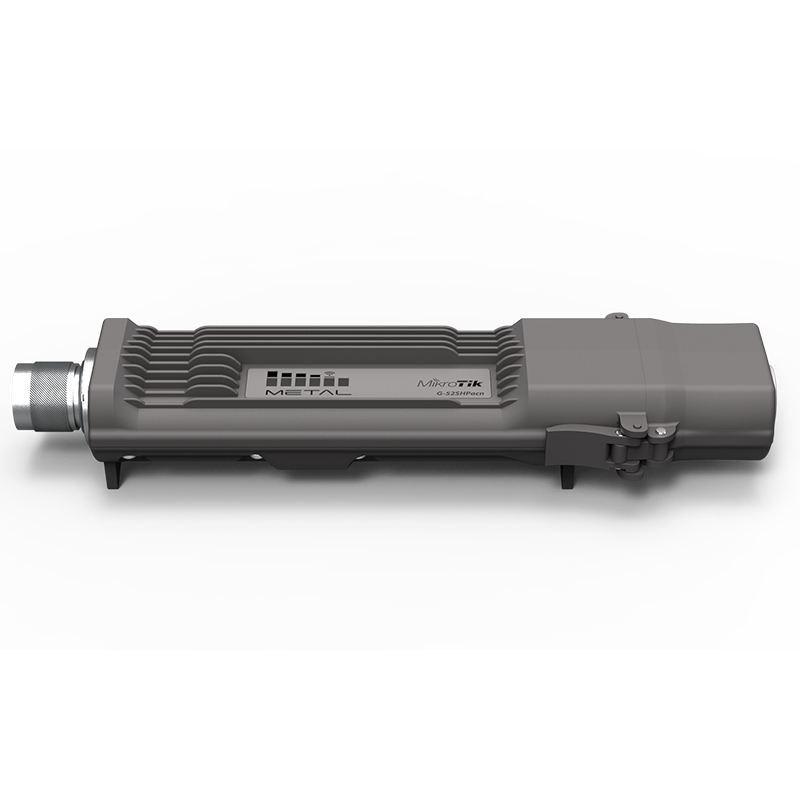

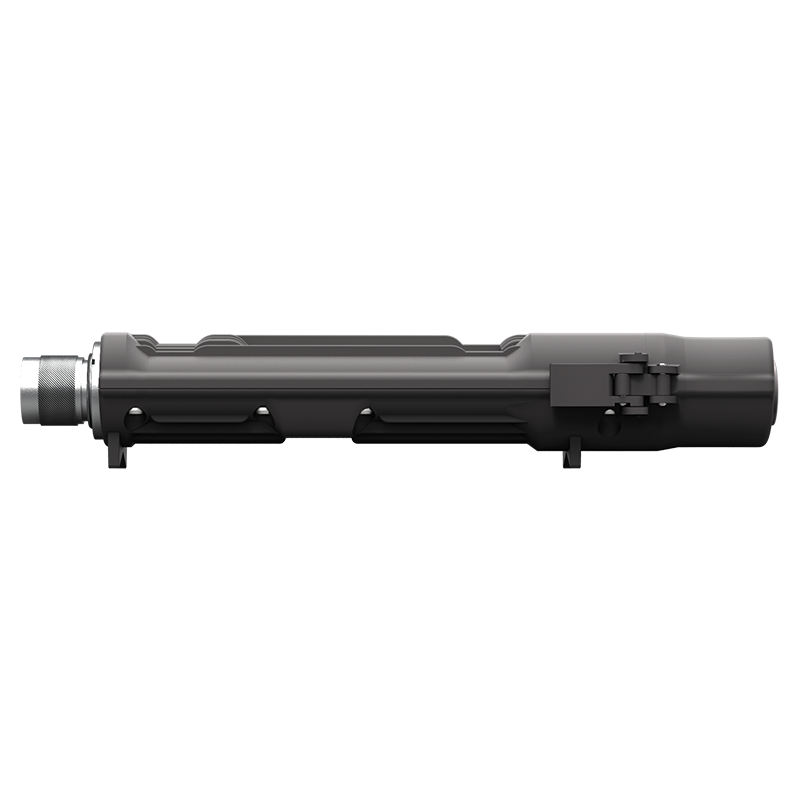

MikroTik RouterBOARD Metal 52 ac-RBMetalG-52SHPacn (International Version)
Now with 802.11ac support, a Gigabit Ethernet port and a selectable wireless band (2.4 GHz or 5 GHz, up to 80 MHz wide channel). The new Gigabit port will help you utilize the full benefit of 802.11ac high speed wireless.
The Metal 52 ac supports 2.4 GHz, 5 GHz and all the legacy wireless modes as well (802.11 b/g/n for 2.4 GHz and 802.11 ac/n/a for 5 GHz).
Fully sealed, industrial design metal case, powered by RouterBOARD and RouterOS. The Metal comes with an AP software license, so you can attach your favorite antenna to use it as an AP, to make wireless point-to-point links or as a CPE - whatever you prefer!
The Metal 52 ac includes a Dual Band 2.4/5 GHz Omni directional antenna (6 dBi 2.4 GHz, 8 dBi 5 GHz), so you can use the unit right out of the box, or use your own antenna.Features:
- 24V 0.8A Power adapter
- 2 x Mounting loops
- Gigabit PoE injector
- Angled N connector
- 2 x Metal rings
- Dual Band 2.4/5Ghz (6dBi 2.4GHz / 8dBi 5Ghz)
- RBMetalG-52SHPacn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies.
- RBMetalG-52SHPacn (International) supports 2412-2484MHz and 5150MHz-5875MHz range.
Specifications RBMetalG-52SHPacn
CPU | QCA9556 |
CPU nominal frequency | 720 MHz |
Size of RAM | 64 MB |
Memory type | Flash |
Memory size | 16 MB |
10/100/1000 Ethernet ports | 1 |
Wireless regulations | Specific frequency range can be limited by country regulations |
Chains | Single-chain |
Wireless chip | QCA9889 |
PoE in | Yes |
Supported input voltage | 10 - 30 V |
PCB temperature monitor | Yes |
Voltage monitor | Yes |
Dimensions | 177 x 44 x 44 mm |
Operating temperature | -40°C .. +70°C tested |
License level | 4 |
Operating System | RouterOS |
Max power consumption | 11 W |
Weight | Package: 778 g; Unit: 300 g |
Wireless | 5 GHz | 2.4 GHz |
Operating frequency | International 5150 - 5875MHz USA 5170 - 5250 MHz 5725 - 5835 MHz | International 2412 - 2484 MHz USA 2412 - 2462 MHz |
Protocols | 802.11a/n/ac | 802.11b/g/n |
Wireless specifications | ||
5 GHz | ||
RATE | Tx (dBm) | Rx (dBm) |
1MBit/s | 31 | -97 |
11MBit/s | 31 | -91 |
6MBit/s | 31 | -93 |
54MBit/s | 28 | -77 |
MCS0 | 31 | -93 |
MCS7 | 27 | -72 |
2.4 GHz | ||
RATE | Tx (dBm) | Rx (dBm) |
6MBit/s | 31 | -93 |
54MBit/s | 27 | -78 |
MCS0 | 30 | -93 |
MCS7 | 26 | -74 |
MCS9 | 22 | -69 |
