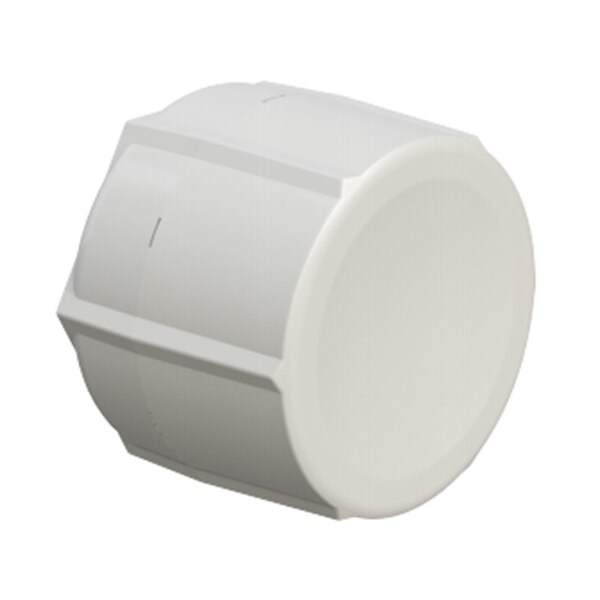

MikroTik RBSXTLTE3-7 SXT CPE
- SKU: RBSXTLTE3-7
Product Information
RBSXTLTE3-7 SXT CPE with 3 and 7 LTE FDD band support

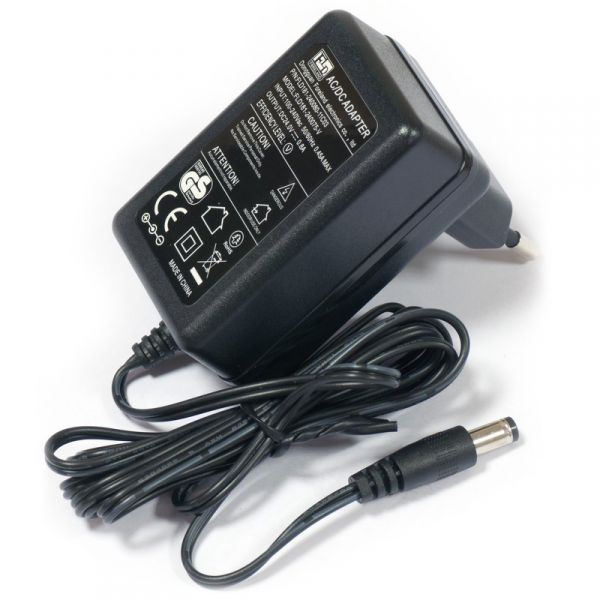

29dBi 60 degree antenna, 400Mhz CPU, 64MB RAM, enclosure, POE and PSU (RouterOS L3)
These products will not work on Verizon’s US network outside large metro areas because they do not run Band 13. They are also not certified on Verizon so use them at your own risk. Check with your cellular provider before using on that carrier’s network.
The SXT LTE (product code RBSXTLTE3-7) is a special variant of our popular SXT device, and doesn’t include a 802.11 wireless device. Instead, it has a built-in high-quality LTE Category 3 modem for speeds of up to 100Mbit/s downlink and 50 Mbit/s uplink.
A perfect device for remote locations that are within cellular network coverage. Due to it’s professional LTE chip and high gain antenna, it can provide connectivity for your building even where cell phones can’t.
The signal LEDs show LTE signal level for easy positioning. The SXT LTE supports the popular LTE FDD bands 3 (1800MHz) and 7 (2600MHz), has a miniSIM slot and is not backwards compatible with older networks.
Specifications
Specifications RBSXTLTE3-7
| Product code | RBSXTLTE3-7 |
| CPU Nominal Frequency | 400 MHz |
| CPU Core Unit | 1 |
| Size of RAM | 64 MB |
| Storage | 128 MB NAND |
| 10/100 Ethernet Ports | 1 |
| Wireles | 3 (1800 MHz) and 7 (2600 MHz) LTE FDD bands, dual chain |
| Antenna Gain | 9 dBi |
| Antenna Beam Width | 60° |
| LTE Chip Model | GDM7240CB20BGT |
| PoE in | Yes |
| PCB Temperature | Yes |
| Volatge Monitor | Yes |
| Supported Input Voltage | 11V - 57V |
| Dimensions | 140x140x105mm |
| License Level | 3 |
| Operating System | RouterOS |
| CPU | AR7241 |
| SIM Slots | 1x miniSIM (2FF) |
| Max Power Consumption | 5W |
