MikroTik 100 Gigabit QSFP28 module for distances up to 100m
CA$121.19 CA$124.94
- SKU: XQ+85MP01D
- Manufacturer: MikroTik
- Data Sheet: Download
- 6 In Stock (updated live)
Product Information
- Description
- Specifications

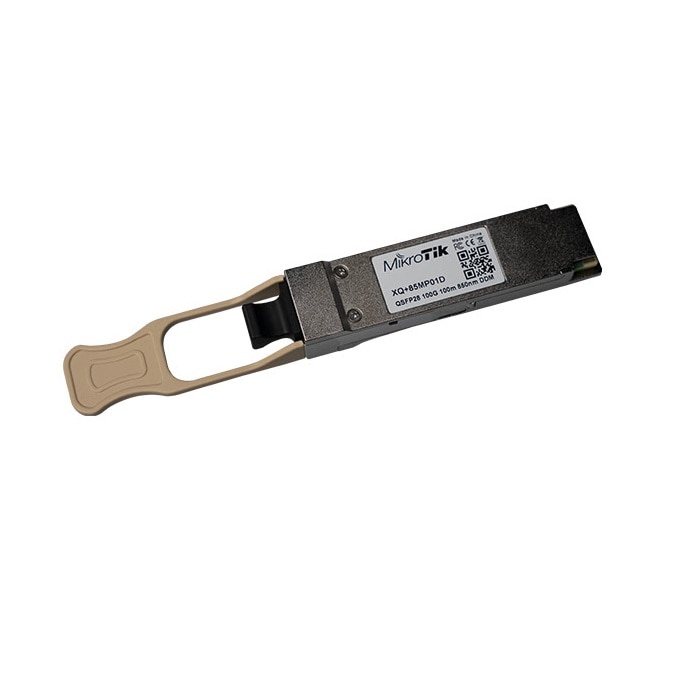

MikroTik XQ+85MP01D
100 Gigabit QSFP28 module for distances up to 100m
Add this QSFP module for distances up to 100 meters to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps. The module has built-in digital diagnostic functions such as optical power monitoring.
Specifications
Format | QSFP28 |
Connector | 1 x 12 MTP/MPO |
Max data rate | 100G |
Mode | Multi-mode |
Temperature | 0°C to +70°C |
Wavelength | 850 nm |
Distance | 100 m |
Optical characteristics | Min. | Max. |
Transmitter | ||
Output optical power (Avg.) | -8.4 dBm | 2.4 dBm |
Receiver | ||
Rx sensitivity (Avg.) | -5.2 dBm | |
Max received pwr | 3.4 dBm | |
LOS de-assert(Avg.) | -13 dBm | |
LOS assert (Avg.) | -30 dBm |
