Mimosa NID ESD protection, Gigabit Network Interface Device
CA$21.88
- SKU: NID 100-00039
- Manufacturer: Mimosa Networks
- Data Sheet: Download
- Call for Availability This item can sometimes be sourced and shipped direct from other locations when out of stock. Email me when this product is in stock!
Product Information
- Description
- Specifications

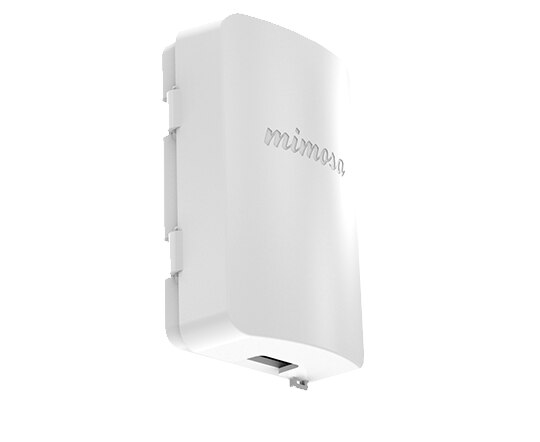

Mimosa Gigabit Network Interface Device
The sleek and affordable Mimosa Gigabit Network Interface Device (NID) is designed for exterior wall mounting, providing outdoor technician access, ESD protection and grounding point for C5 and C5c installation. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.
The sleek and affordable Mimosa Gigabit Network Interface Device (NID) is designed for exterior wall mounting, providing outdoor technician access, ESD protection and grounding point for C5 and C5c installation. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.
Specifications NID
| Data Transfer Rate | Gigabit rated |
| Connectors | Two (2) RJ-45 |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | GTD (Gas Discharge Tube) |
| Nominal Voltage | 20V @ 1A |
| DC Sparkover | 90V @ 100V/s |
| Impulse Sparkover | 550V @ 1000V/µs |
| Impulse Discharge Current | 10kA |
| Capacitance | < 1.0pF @ 1 MHz |
| Dimensions | 42 mm (1.6”) x 131 mm (5.1”) x 84 mm (3.3”) |
| Weight | 0.13 kg (4.8 oz) |
| Operating Temperature | -40 to +55 C |
| Humidity | 5 to 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
| Mounting | Wall mount. Two screw mounting points for secure access to flat surface with optional rear feed point for clean installations. |
