Simply45 S45-B002

Strain Reliefs for all S45 Brand Cat6/6a UTP - 100pc Bag

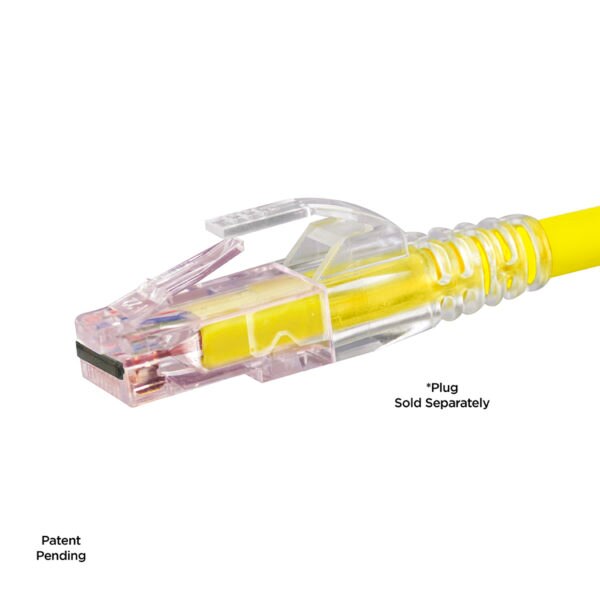

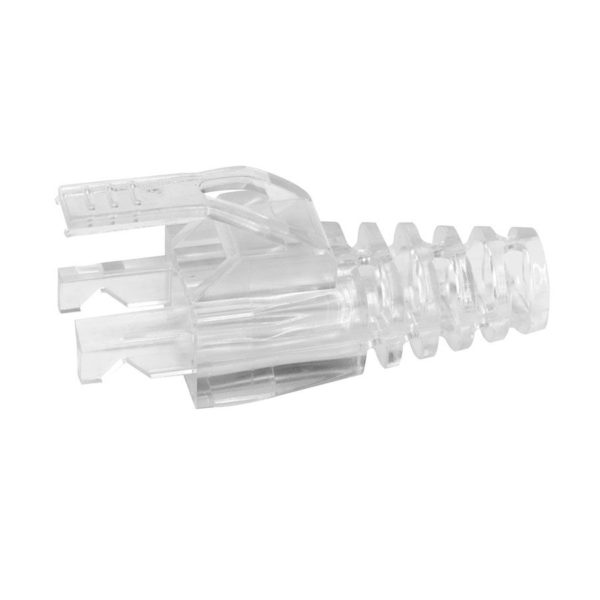

The Simply45® S45-B002 – Integrated Snagless Strain Reliefs lock into the RJ45 modular plug so that both the plug and strain relief can be permanently attached to the Simply45® RJ45 modular plug during the crimping cycle.

The Simply45® S45-B002 strain reliefs extend the useful life of the RJ45 modular plug termination and should be used with all terminations. It is also Fast and Easy to Use.

NOTE: The S45-B002 is designed to work with the following Simply45® part numbers: S45-1550, S45-1600/1601; S45-1700/1700P; S45-1100. For Cat5e Unshielded RJ45 modular plugs S45-1500/1501; S45-1000, please use our S45-B001 strain reliefs.

Simply45® S45-B002 Integrated Snagless Strain Reliefs for Cat6/6a and Cat5e Shielded with Internal Ground Features:

Prolongs Life of the Termination. The S45-B002 takes the strain off the terminated plug. When you do not use a strain relief, any contact with the plug or cable puts strain directly on the terminated plug. Over time this could cause one or more of the RJ45 pins to become loose. If a pin becomes loose it will create electrical resistance. Resistance creates heat. This could then cause performance problems or damage to the device socket.

Commercial Rated UL94 V0. The Simply45® S45-B002 RJ45 modular plug strain reliefs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These strain reliefs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

Narrow Design for Easy Access. The S45-B002 strain reliefs are the same width as the RJ45 modular plug. Most common strain reliefs slide over the RJ45. This makes the terminated connector much wider and difficult to use in multi-port patch panels and devices. Therefore, many installers decide to forgo using strain reliefs. The Simply45® S45-B002 strain reliefs lock into the plug during termination and maintain a very narrow profile. This allows easy access to the plug in these tight installations.

Maintains Correct Bend Radius of the Termination. The Simply45® S45-B002 Integrated Strain Reliefs protect the terminated RJ45 from damage during the life of the link or channel. Maintaining industry standards bend radius is important for maximizing the link/channel performance.

Professional Finish. In addition to protecting the termination and extending the operating life of the link/channel, the S45-B002 strain reliefs also provide a professional finish to your terminated RJ45.

Trimmable. The S45-B002 strain reliefs are trimmable so that you can adjust the bend radius if necessary to work in very tight installations.

Clear Color. The S45-B002 strain reliefs come in a clear color so that it easily works with all of the Simply45® RJ45 modular plugs indicated above.

Snagless Design. The S45-B002 strain reliefs are a snagless design. This prevents broken latch tabs on the RJ45 modular plugs.

Wide Mouth Resealable Bag for Easy Hand Access. No need to spill RJ45 mod plugs out of the bag just to reach them. The S45-B002 strain reliefs bag packaging stands up and can remain open so that you can easily reach in and remove the strain reliefs.

PoE/PoH Rated. The S45-B002 strain reliefs are ideal for PoE/PoH applications. They are Commercial Rated UL94 V0 to match their RJ45 modular plugs.

Specifications S45-B002

Weight0.3 lbs
Dimensions (L x W x H)7.1 x 5.9 x .9 in
