Tachyon Networks Outdoor 60 GHz PTP & PTMP Fixed Wireless Solutions

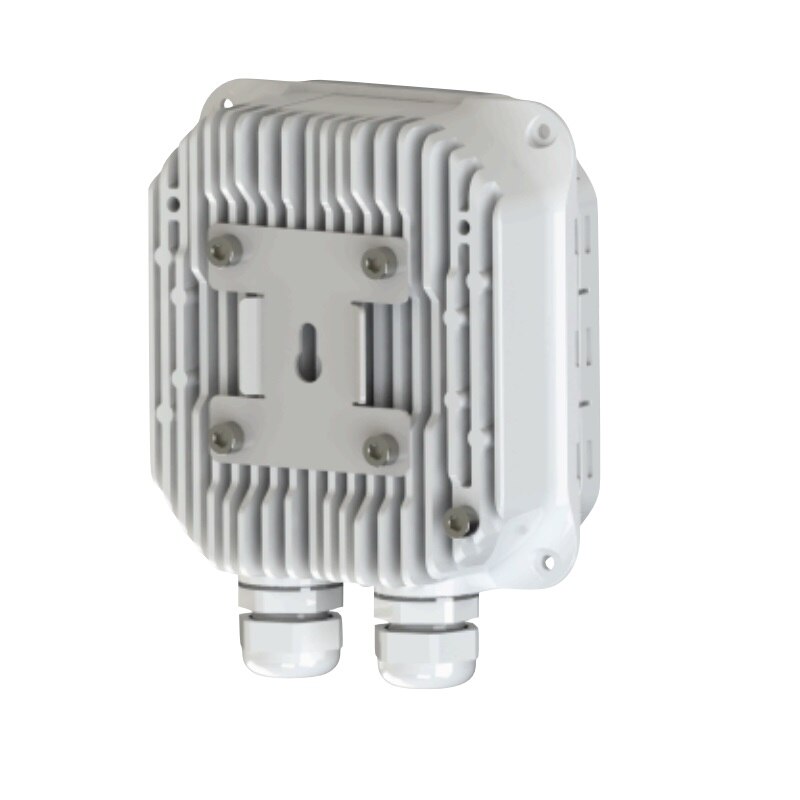

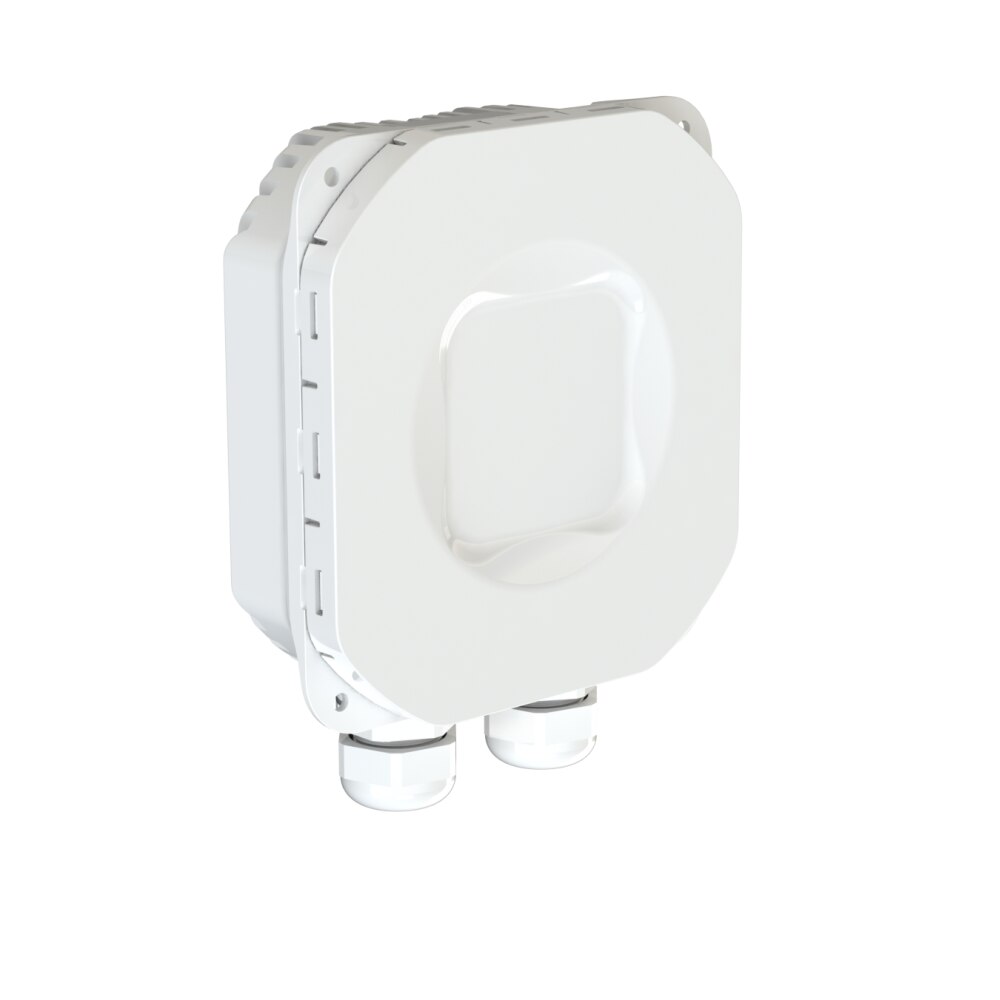

Tachyon Networks TNA-303X

Outdoor 60 GHz PTP & PTMP Fixed Wireless Solutions

The TNA-303X is the newest addition to Tachyon's 60GHz product line. It supports the full unlicensed 60GHz band and is completely compatible with the existing TNA models. What makes this model different is the innovative modular design: the base unit features 90° of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.

Fiber-like speeds using the 60GHz band

2+ Gbps can be achieved and distances of up to 4+ km (antenna kit dependent) without trenching, permits, or licenses.

Upper-band support

All models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities.

Modular design simplifies inventory and installation

The TNA-303X features a modular design. The base unit features 90º of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.

Best overall affordability

The low cost of the TNA-30x product family, combined with high subscriber density and quick installation, greatly decreases total cost of ownership for service providers.

Applications:

• Sub-6GHz offload: Because the sub-6GHz spectrum is scarce and prone to interference, the TNA-30x models are perfect for offloading clients within range, leaving the low bands for hard-to-reach customers.
• Deploying fiber-like service: The TNA-30x product family can deliver multi-Gigabit speeds to up to 32 clients per sector at a fraction of the cost of deploying fiber.
• High speed point-to-point: Use the TNA-30x products to easily create point-to-point connections between buildings in urban environments.
• High bandwidth video surveillance: The TNA-30x units feature a proprietary TDMA scheduling protocol which is perfect for video surveillance networks requiring high-capacity upload bandwidth.
