Tachyon Networks 150mm 37dBi TNA-303X Antenna Kit
- SKU: TNA-AK-150
$67.42
+ $3.40 Tariff
- Manufacturer: Tachyon Networks
- Data Sheet: Download
Product Information

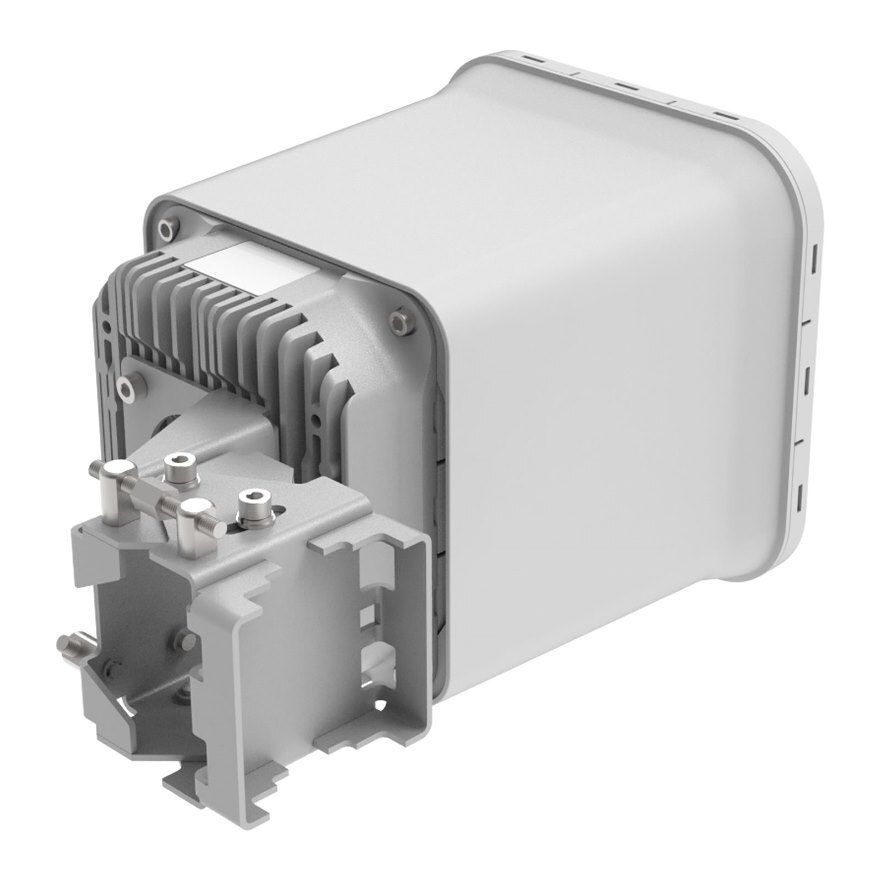

Tachyon Networks TNA-AK-150
150mm 37dBi TNA-303X Antenna Kit
Tachyon Networks offers a range of highly directional antenna kits that can be used in a Point to Point (PTP) setup or as a client in a Point to Multipoint (PTMP) setup. When paired with a compatible TNA radio, this combination creates a very focused connection that is highly resilient to interference and greatly increases distances.
The Tachyon Networks antenna kits can be paired with compatible TNA radios in a modular fashion - allowing the installer to choose the antenna with the right gain, scanning, and physical properties for each installation. Attaching the antenna kit is a breeze and is quick and easy, greatly speeding up installation time.
Mounting bracket not included. TNA-M-P recommended.
Specifications
Specifications TNA-AK-150
| Antenna Gain | 37dBi |
| Beam Steering | 4° x 4° |
| Dimensions (approximate) | 7 in x 6 in x 6 in (18cmx15cmx15cm) |
| Weight | 2.2 lb |
| Mounting Bracket | Not included (TNA-M-P recommended) |
| Model | Scanning Range | Antenna Gain |
| TNA-AK-100 | 6º x 6º | 33dBi |
| TNA-AK-150 | 4º x 4º | 37dBi |
| TNA-AK-300 | 2º x 2º | 42dBi |
| TNA-AK-S-45 | 45º x 10º | 30dBi |
| TNA-AK-S-90 | 90º x 10º | 30dBi |
