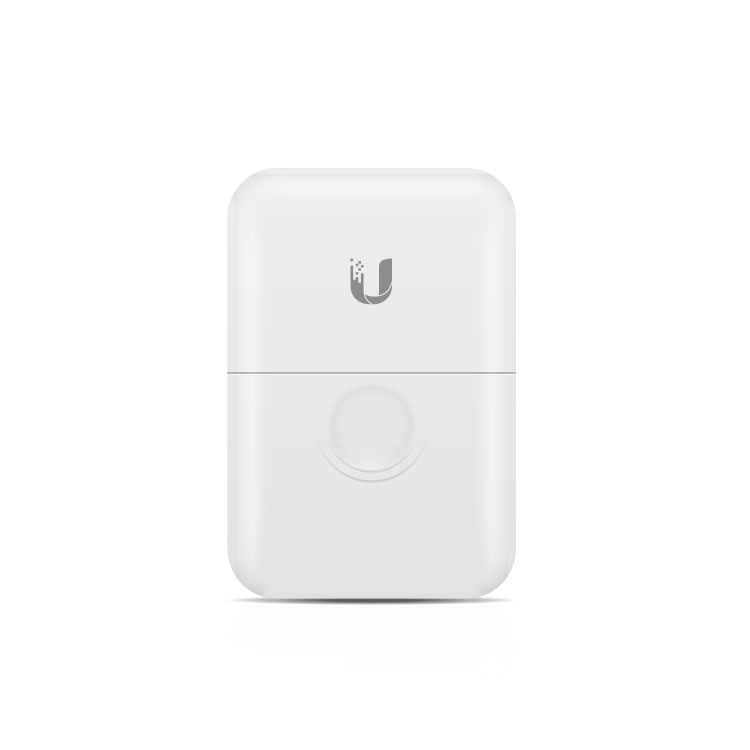

Ubiquiti Ethernet Surge Protector Gen 2
Ubquiti Ethernet Surge Protector Gen 2
The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.
ESD Protection for Outdoor High-Speed Networks
Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.
Ideal for WISP Networks
All Ubiquiti airMAX devices are equipped with ESD protection. However, to protect third-party devices, the ETH-SP-G2 provides essential ESD protection to guard against costly service calls and downtime.
For example, protect your subscriber networks by installing the ETH-SP-G2 next to CPE devices. Damaging ESD attacks and surges will be diverted to the ETH-SP-G2 and safely discharged into the ground, so the CPE and other network devices are protected.
|Dimensions||91 x 61 x 32.5 mm|
|Interface Connections||2x RJ45|
|ESD/EMP Protection||Absorbing Transient Current with Responce to Surge Voltage from 100V/s to 1kV/us|
|DC Spart||Over Voltage - 90V @ 100V/s|
|Maximum Impulse Spark||over Voltage - 700V @ 1kV/us|
|Discharge Current||5kA Maximum / 0.5kA Normal|
|Maximum Insulation Resistance||1Gohm @50V|
|Maximum Capacitance||1.0 pF @ 1MHz|
|Data Line Protection||RJ45 10/100/1000 Ethernet|
|IEEE 802.3af POE Support||Yes|
|Shock and Vibration Certification||ETSI300-019-1.4 Standard|
|Operating Temperature||-30 to 65 C|
|Operating Humidity||10 to 90% Noncondensing|
