Ubiquiti LBE‑5AC‑Gen2-US

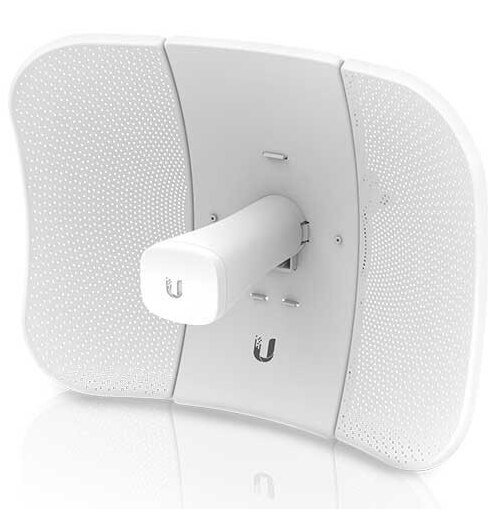

Ubiquiti 5GHz Litebeam AC Gen2 23dBi US
The Ubiquiti Networks LBE-5AC-Gen2 is a 802.11ac LiteBeam CPE. It uses both 2.4 and 5GHz frequencies with a 23dBi, and utilizes the new UMobile app for easy setup and installation.

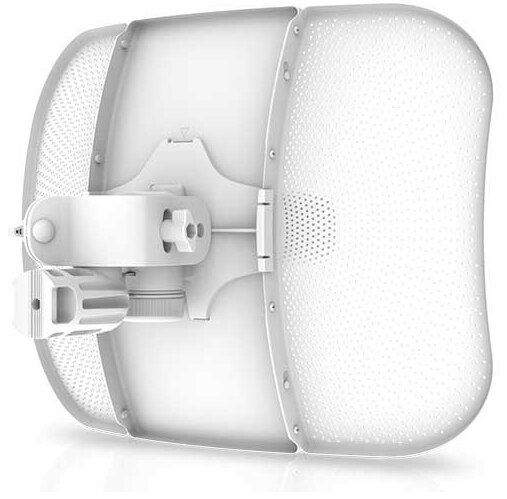

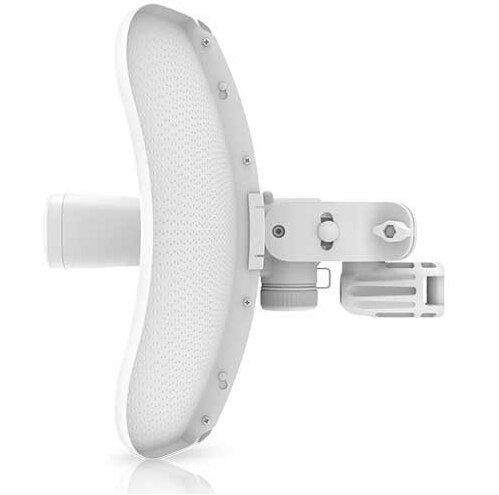

LiteBeam 5AC features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment.

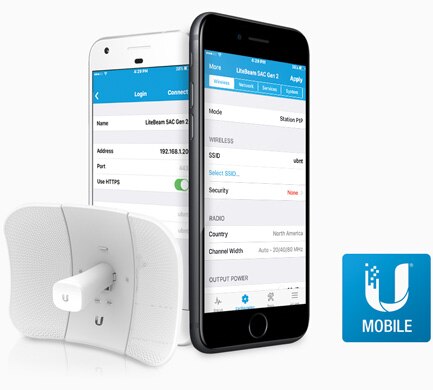

Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

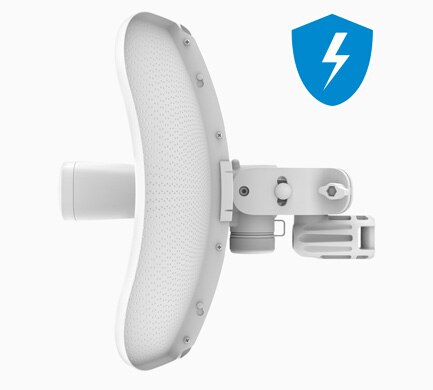

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

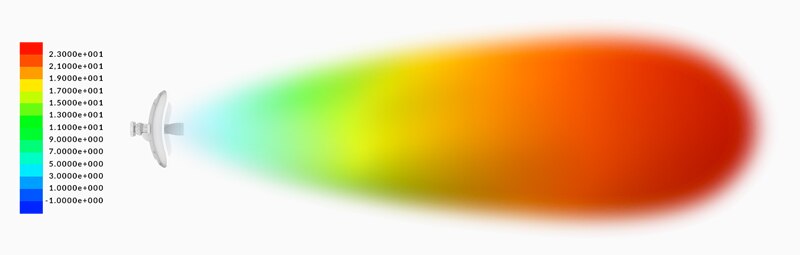

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

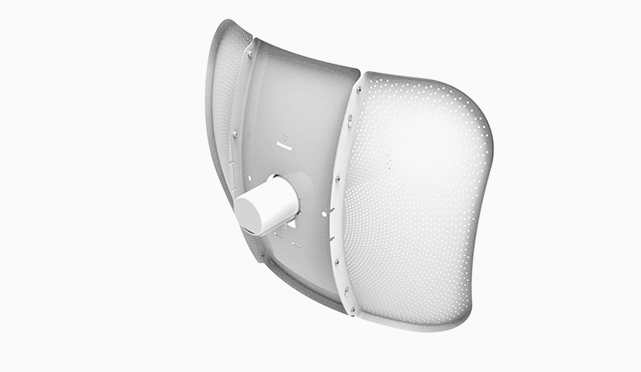

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

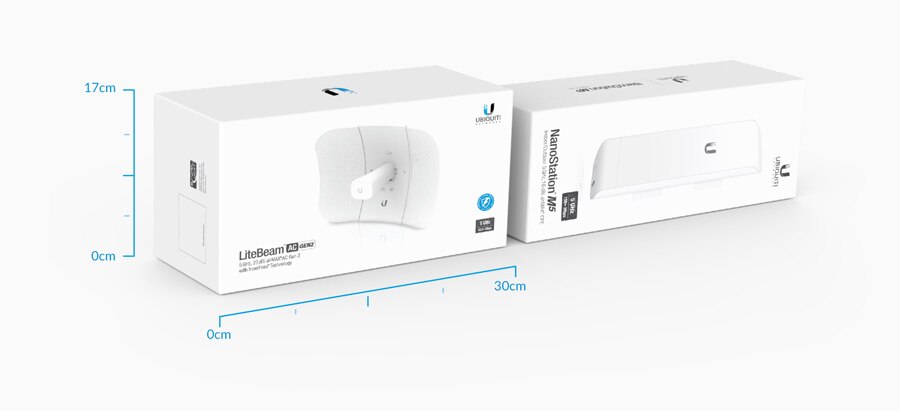

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
Specifications LBE5ACGen2-US

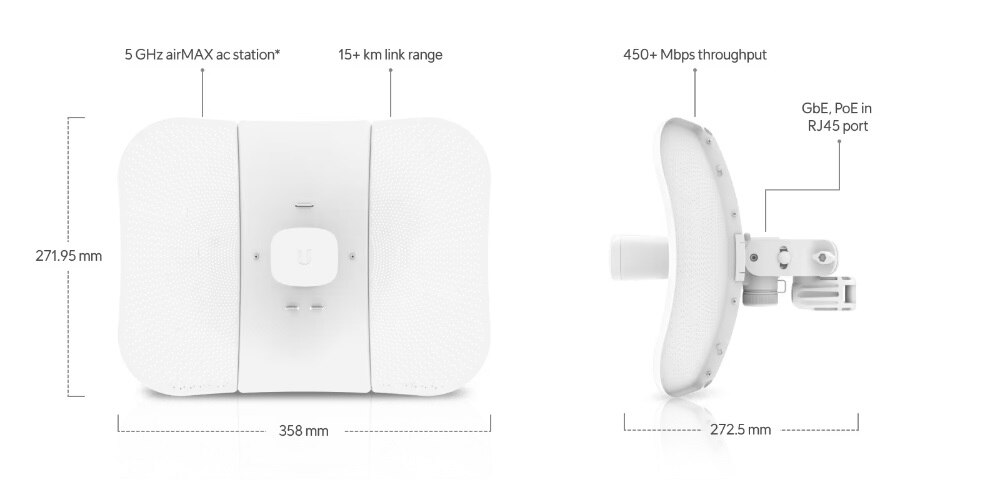

| Dimensions | 358 x 271.95 x 272.5 mm (14.09 x 10.71 x 10.73") |
| Weight | Without Mount 800 g (1.76 lb) With Mount 980 g (2.16 lb) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Operating Frequency | Worldwide 2412 - 2462 MHz 5150 - 5875 MHz USA: U-NII-1 5150 - 5250 MHz USA: U-NII-2A 5250 - 5350 MHz USA: U-NII-2C 5470 - 5725 MHz USA: U-NII-3 5725 - 5850 MHz |
| Gain | 23 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs MIPS | 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz |
| Enclosure Characteristics | Reflector (SGCC 0.6T) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 275 N @ 200 km/h (61.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
