Ubiquiti UniFi Dream Machine Pro
- SKU: UDM-Pro
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
- Description
- Specifications
Ubiquiti Networks UDM-Pro
UniFi Dream Machine Pro

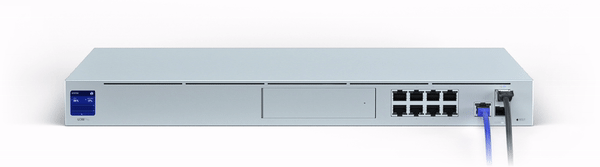

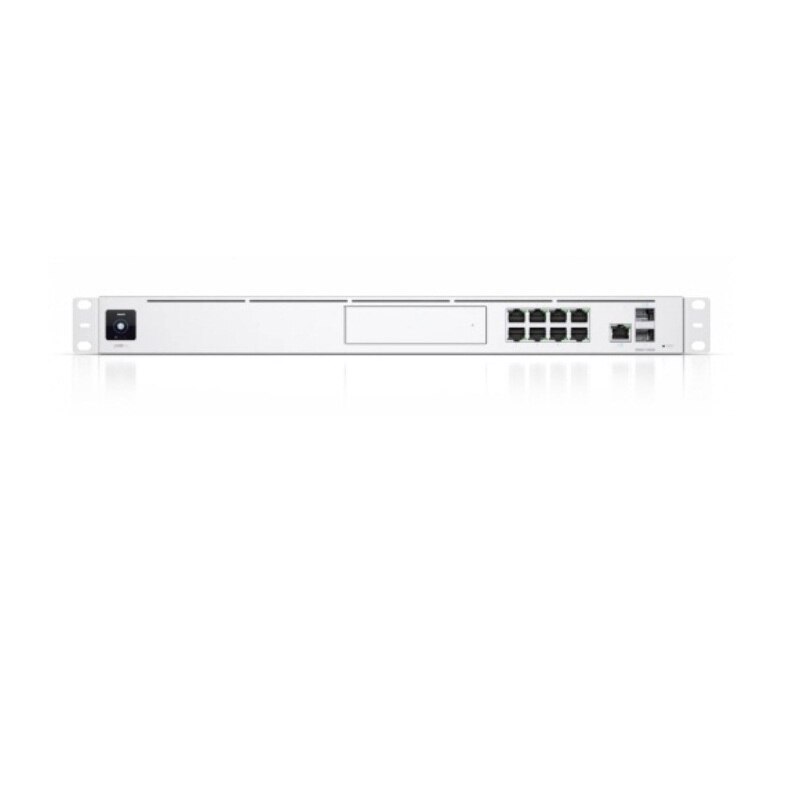

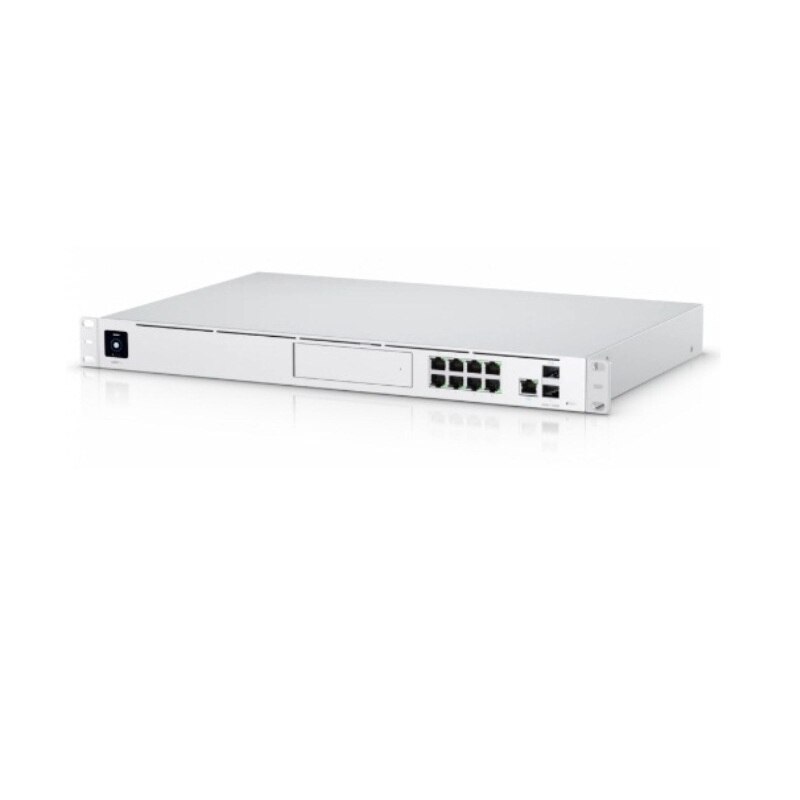

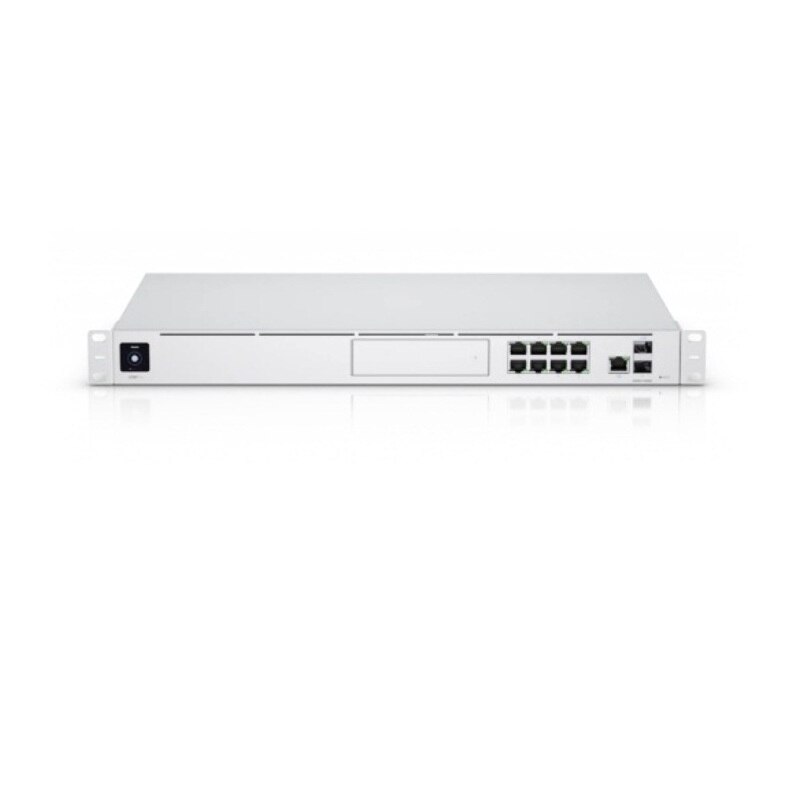

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
Features:
- All-in-one 1U rack appliance for small to medium sized businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor
The Best Experience for Large Networks
All-in-one 1U rack appliance for small to medium size businesses
Security Gateway
The enterprise-class security gateway combines routing, 10 Gbps SFP+ WAN, application visibility, VPN services, and 3.5 Gbps full threat management throughput into a single device.
Managed Switch
Fully managed switch with 10 Gbps SFP+ downlink and eight RJ45 GbE ports for scaling up.

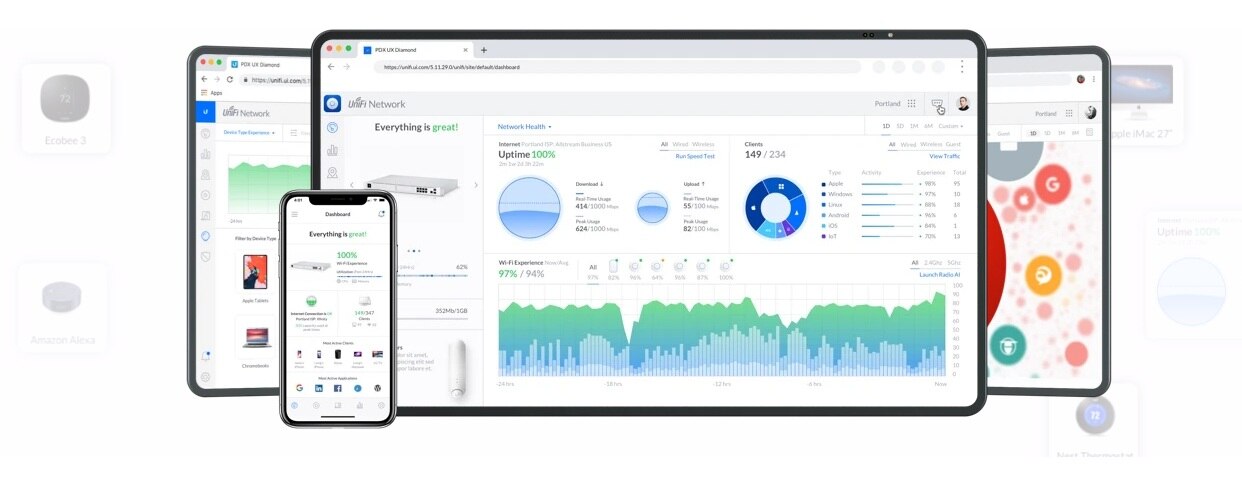

UniFi Network
Integrated network management system for all network elements with an easy-to-use and modern user interface. Wi-Fi AI automatically optimizes the Wi-Fi network.
UniFi Protect
Professional-grade video surveillance system and NVR with integrated 3.5"/2.5" HDD bay for scalable storage.
Advanced Redundancy
The UDM Pro features dual WAN ports with failover and U-LTE1 backup connectivity to ensure reliable access to the internet. UniFi SmartPower USP-RPS2 provides redundant power in the event of AC power loss.
UniFi Enterprise Architecture Evolves with UniFi OS
The new UniFi Cloud portal provides simple access to all controllers and an increasing number of UniFi applications.
UniFi Cloud Portal
Launch all current and upcoming controllers from a single view with simple access.
Safe Access with SSO
Single Sign-On (SSO) authentication streamlines safe access to UniFi applications.
Centralized User and Access Management
Admins easily manage users in one central location.
Installation of New Applications
Install new UniFi apps and maintain them with a single click through the settings page.
Seamless Network Integration
Use the UniFi Dream Machine Pro as your network controller.
Specifications UDM-Pro
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight With Brackets | 3.90 kg (8.60 lb) 3.99 kg (8.80 lb) |
| Interfaces Networking Management | (8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port Ethernet In-Band (1) Bluetooth BLE |
| IDS/IPS Throughput | 3.5 Gbps* |
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | 16 GB eMMC |
| Max Power Consumption | 33W |
| Voltage Range | 100 to 240VAC |

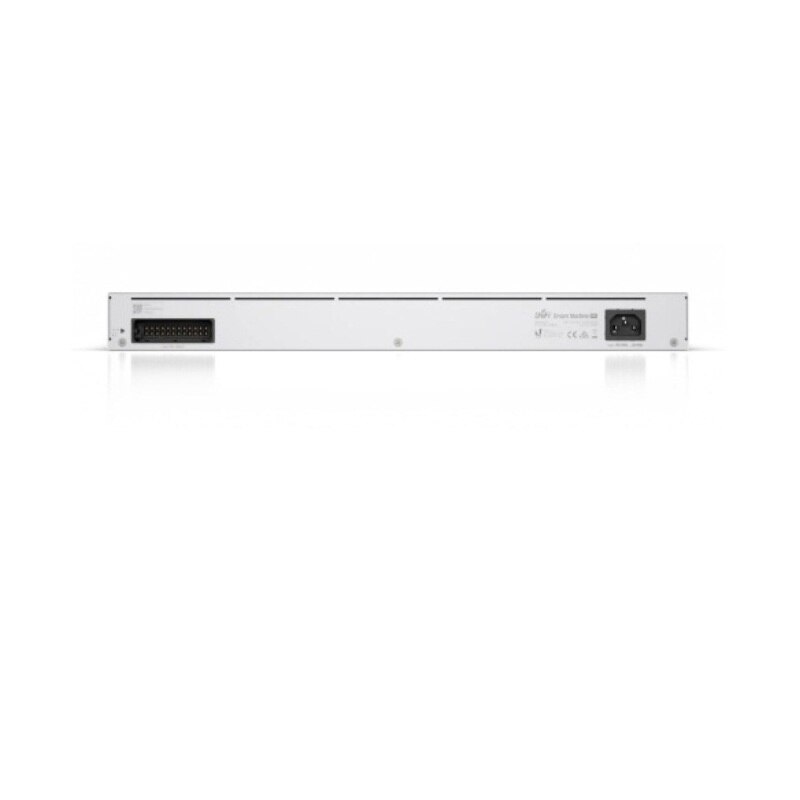

| Power Method | (1) Universal AC Input, 100-240VAC, 50/60 Hz (1) RPS DC Input |
| Power Supply | Internal 50W/12V |
| LEDs HDD RJ45 SFP+ | Activity Link/Speed/Activity Link/Speed/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
