9Dot AC/DC Converter 24V 350W. Cables are not inlcuded
- SKU: ACDC-24
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

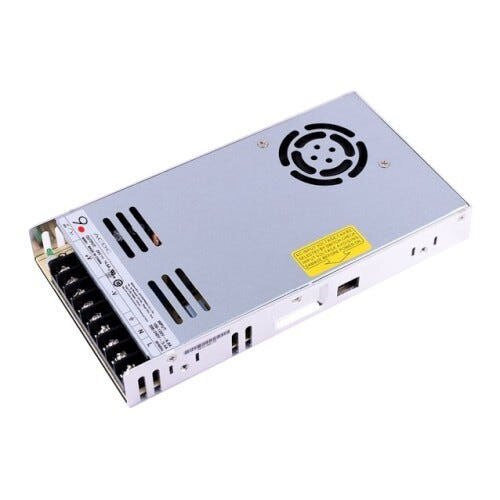

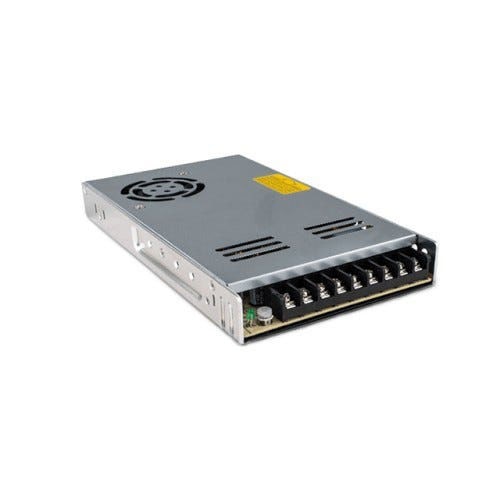

9Dot ACDC-24
AC/DC Converter 24V 350W. Cables are not inlcuded
The 9dot ACDC-24 is a high-efficiency 350W AC/DC converter designed for versatile power supply needs, featuring a low-profile design and robust performance.
This Converter delivers reliable 24V power, ideal for various industrial applications, with a compact design and efficient operation.
The ACDC Series provides a powerful 350W single-output enclosed power supply with a low profile of 30mm. It operates on selectable 115VAC or 230VAC input and outputs a stable 24V or 48V. With up to 89% efficiency and a long-life fan, this unit can function under extreme temperatures from -25°C to +70°C at full load. It boasts a low no-load power consumption of less than 0.75W, meeting global energy standards. The ACDC series includes comprehensive protection features and is designed to withstand 5G anti-vibration, complying with international safety regulations like UL60950-1, making it an excellent choice for various industrial power supply applications.
Features:
- High efficiency up to 89%
- Low profile design (30mm)
- Selectable input voltage (115VAC/230VAC)
- Stable output voltage (24V/48V)
- Low no-load power consumption (< 0.75W)
Specifications
Specifications ACDC-24
| Over Load | 110 ~ 140% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 28.8 ~ 33.6V 55.2 ~ 64.8V Protection Type: Hiccup mode, recovers automatically after fault condition is removed |
| Functions | |
| Control On/Off | RTH 3≥50 FAN ON ≤4.0 FAN OFF |
| Environmental | |
| Operating Temperature | -25° ~ +70°C (Refer to “Derating Curve”) |
| Humidity | 20 ~ 90% RH non-condensing |
| Storage temperature | -40° ~ +85°C. 10 95% RH |
| Temperature Coefficient | ±0.03%/C° (0° ~ 50°C) 10 |
| Vibrations | ~ 500Hz, 5G 10min./1cycle, 60min. |
| Mechanical | |
| Mtbf | 327.9K hrs min. MIL-HDBK-217F (25°) |
| Dimensions | 215 x 115 x 30 mm (8.46" x 4.52" x 1.18" inch) |
| Weight | 1.67 lb |
| Compliance & Warranty | |
| Safety | 3UL609550-1, BSMI CNS14336-1. EAC TP TC 004 approvato |
| Resistance to tension | I/P-O/P:3KVAC I/P-FG:2KVAC 0/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C / 70% RH |
| Emc Emission | Compliance to BSMI CNS13438, WAC TP TC 020 |
| Emc Immunity | Compliance to EAC TP TC 020 |
| Warranty | consult with the nearest distributor |
| Certifications | CE |
| Output | |
| DC Voltage | 24V |
| Rated Current | 14.6A |
| Current Range | 0-14.6A |
| Rated Power | 2 x Shielded RJ45 Jacks (LAN / PoE + Data) |
| Voltage ADJ. Range | 150m Vp-p |
| Voltage Tolerance | 21.6 - 28.8V |
| Line Regulation Note.4 | ±1.0% |
| Load Regulation Note.5 | ±0.5% |
| Input | |
| Voltage Range | 90 - 132VAC/180 - 264VAC by switch 240 - 370VDC (switch on 320VAC) |
| Frequency Range | 47 - 63 Hz |
| Efficiency (Typ.) | 88/89% |
| Ac Current | 6.8A/115VAC 3.4A/230VAC |
| Inrush Current (Typ.) | 60A/115VAC 60A/230VAC |
| Leakage Current | <2mA/240VAC |
