9Dot NCore Output Module 24V, 4 Ports
- SKU: NCORE-OUT-24V
$1,242.28
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

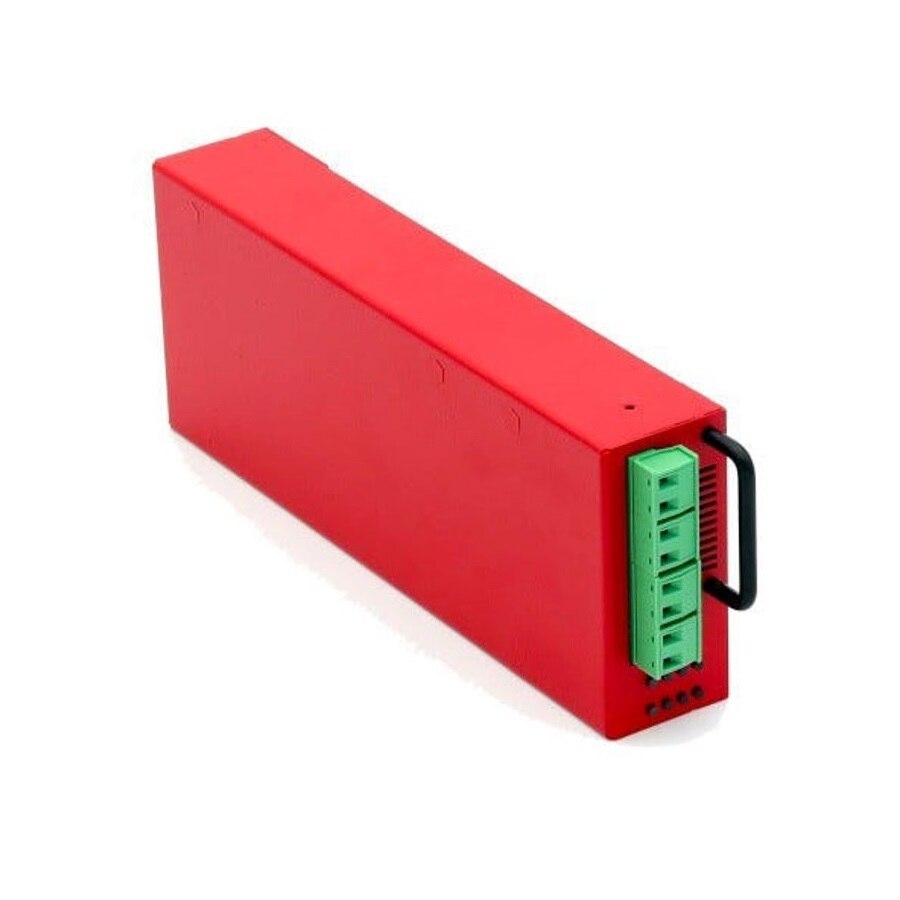

9Dot NCORE-OUT-24V
NCore Output Module 24V, 4 Ports
The 9dot NCORE-OUT-24V is a versatile 24V output module featuring 4 ports, designed for reliable network performance and flexibility in power management.
This NCore Output Module provides 4 independently controlled ports, each equipped with a current sensor for optimal performance in various network setups. Ideal for enhancing access points and routers.
The 9dot NCORE-OUT-24V Output Module offers advanced features including short circuit protection with timed automatic reset for each port. Users can enable or disable ports independently and perform power cycles. The module supports multiple voltage settings, including fixed and variable options, making it adaptable for different network configurations.
Features:
- 4 Ports for Enhanced Network Connectivity
- Short Circuit Protection
- Independent Port Control
- Current Sensing for Each Port
- Multiple Voltage Options
Specifications
Specifications NCORE-OUT-24V
| Electrical | |
| Operating Voltage | Rail or Battery Voltage / 36 - 72 V DC |
| Max Power | Check table |
| Power Connector | 3.3 mm2 wires terminal blocks, 4 connectors |
| Indicators | Voltage / Load percentage |
| Active Protection | Overvoltage control, Overload control |
| I/O isoltation | 1500V |
| Output | Rail or Battery Voltage 24 V DC |
| Efficiency | 94% Typ |
| Environmental | |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 - 95% non condensing |
| Mechanical | |
| Dimensions (LxWxD) | 13" x 3.94" x 5.91" inch |
| Weight | 2.21 lbs |
| Material | Varnished Iron |
| Compliance & Warranty | |
| RoHS compliant | Yes |
| Certifications | CE - FCC |
| Warranty | consult with the nearest distributor |
