APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect
- SKU: SMTL1500RM3UC
Product Information
APC SMTL1500RM3UC

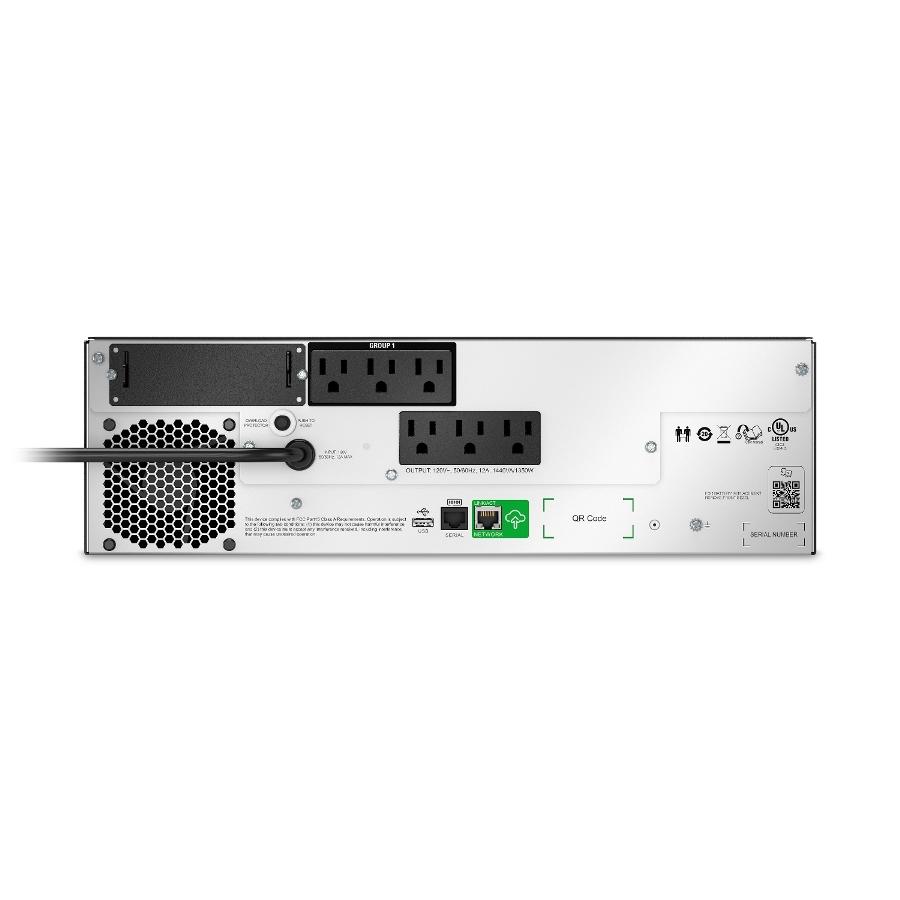

Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 120V, 6x NEMA 5-15R outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Features:
- 1500VA/1350W line interactive pure sine wave 3U rackmount UPS.
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets.
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS.
- Short depth UPS provides extra space for cable management.
- Cloud-based remote power monitoring via SmartConnect Ethernet Port.
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown.
- Peace of mind with a 5-year warranty on UPS and battery.
Applications:
- Server
- Router
- Network Switch
- Network Hub
- Network Device
Specifications
Specifications SMTL1500RM3UC
Main Input Voltage | 120 V |
Main Output Voltage | 120 V |
Kw Rating | 1350 W |
Rated Power In Va | 1440 VA |
Input Connection Type | NEMA 5-15P |
Output Connection Type | 6 NEMA 5-15R |
Number Of Rack Unit | 3U |
Cable Length | 8 ft (2.44 m) |
Battery Type | Li-Ion (Lithium Ion) |
Provided Equipment | Installation guide Rack Mounting support rails USB cable |
Complementary | |
Software Package | SmartConnect software for remote power monitoring feature availability varies by terms of use" |
Batteries & Runtime | |
Run Time | View Runtime Graph |
Efficiency | View Efficiency Graph |
Extendable Run Time | 0 |
Typical Recharge Time | 3 h |
Battery Design Life | 8…10 year(s) |
Battery Charge Power (Watts) | 154 W rated" |
Product Web Sub-Family | Cloud-enabled monitoring |
Redundant | No |
Physical | |
Color | Black with silver front bezel |
Height | 5.16 in (13.1 cm) |
Width | 17.24 in (43.8 cm) |
Depth | 11.89 in (30.2 cm) |
Net Weight | 42.99 lb(US) (19.5 kg) |
Mounting Preference | No preference |
Mounting Mode | Rack-mounted |
Usb Compatible | Yes |
Input | |
Input Protection Type | Circuit breaker |
Efficiency At Full Load | 75...154 V adjustable 82...144 V |
Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing" |
Output | |
Crest Factor | 3 : 1 |
Graph Start Point | 68 |
Harmonic Distortion | Less than 5%" |
Maximum Configurable Power In Va | 1440 VA |
Max Configurable Power (Watts) | 1350 W |
Transfer Time | 6ms typical : 10ms maximum |
Topology | Line Interactive |
Wave Type | Sine wave |
Output Frequency (Sync To Mains) Conformance | 50/60 Hz +/- 3 Hz sync to mains |
Product Certifications | NOM |
Equipment Protection Policy | Lifetime : $150000" |
Environmental | |
Acoustic Level | 45 dBA |
Heat Dissipation | 135 Btu/h |
Operating Altitude | 0...10000 ft |
Ambient Air Temperature For Operation | 32…104 °F (0…40 °C) |
Ambient Air Temperature For Storage | 5…113 °F (-15…45 °C) |
Storage Altitude | 0…25000 ft (0.00…7620.00 m) |
Ip Degree Of Protection | IP20 |
Relative Humidity | 0…95 % non-condensing |
Storage Relative Humidity | 0…95 % non-condensing" |
Communications & Management | |
Alarm | Audible and visible alarms |
Control Panel | Multi-function LCD status and control console |
Free Slots | 1 |
Communication Port Support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
Alarm | Alarm when on battery : distinctive low battery alarm" |
Surge Protection and Filtering | |
Surge Energy Rating | 680 J |
Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m" |
Contractual warranty | |
Warranty | 5 year repair or replace |
