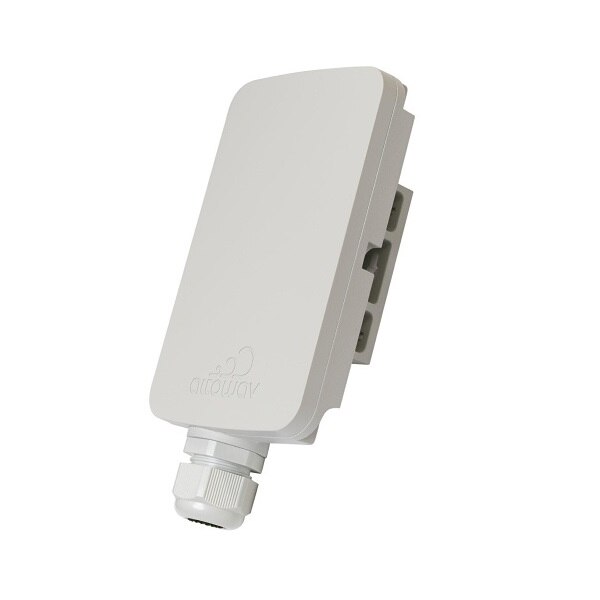

Altowav AltoPlex C420 90° Client, 2X RF, 2Gbps Aggregate, 1x RJ45 1GbE, GPS, Built-in wall/pole Mount. IP67
- SKU: AW3-C420-C-W
$944.83
- Manufacturer: Altowav
- Data Sheet: Download
Product Information
Altowav AW3-C420-C-W
AltoPlex C410 90° Client, 2X RF, 2Gbps aggregate, 1x RJ45 1GbE, GPS, built-in wall/pole mount, IP67
The C420 is a 60GHz radio with integrated 128-element beamforming antenna that enables the quick and easy installation of reliable, gigabit connections, all in a cost-effective and compact form factor.
The C420 is carrier-grade, manufactured in the USA and features IP67 weather-sealing for reliable operation outdoors and in harsh environments. It is ideally suited as a client for enterprise and residential gigabit access applications.
Features:
- High Capacity: Up to 2Gbps aggregate
- Low Latency: Sub 1ms latency
- 128-element, phased array, beamforming antenna with 90° azimuth and 40° elevation scanning for maximum link resiliency and ranges up to 1312ft (400m) MCS-9
- Gigabit Ethernet: Built-in gigabit RJ45 port
- GPS Location: Easily locate the radio using the integrated GPS receiver
- Dense Network Ready: 60GHz spectrum with beamforming and TDMA for extremely reliable dense networks
- Security: AES 128 encryption with automatic secure key distribution
- Carrier-Grade: IP67 rated enclosure and built in USA for reliable, long-term operation in the field
- Simple and Rapid Installation: Altowav's antennas auto-align for easy installs. Our Open API and native Layer 2 architecture enables easy integration into operators' existing networks
Specifications
Specifications AW3-C420-C-W
| SYSTEM | |
| Configuration | Point-to-Point and Point-to-Multipoint Client |
| Frequencies | 57 - 66GHz |
| Channel Bandwidths | 4 non-overlapping 2.16GHz channels |
| Channel Access | TDMA/TDD |
| Modulation and Coding Schemes | 12 levels, adaptive—MCS-0 (BPSK) to MCS-12 (16QAM) |
| Antenna | Integrated 128-element beamforming antenna with wide scanning range: 90˚ azimuth, 40˚ elevation |
| Maximum EIRP | 40dBm |
| Range | Up to 400m (MCS9) |
| Capacity | Up to 2Gbps aggregate |
| Ethernet Frame Type | Transparent bridging of all Ethernet types including VLAN and VLAN stacking |
| Latency | < 1ms |
| L2 switching | Complete Layer 2 switching, including VLAN support |
| Security | AES 128 |
| Location | Integrated GPS receiver to locate individual radios |
| CONNECTIVITY | |
| Ethernet | 1 x 1GbE RJ45 |
| Voltage | 56VDC |
| PoE Input | 802.3af |
| Power Consumption | 11W maximum |
| Included PoE Injector | Indoor 802.3af (15W) 1GbE PoE injector with 2.6ft (0.8m) US power cord |
| MANAGEMENT | |
| Management | Web GUI, CLI, REST API and AltoCommand (optional) |
| MECHANICAL | |
| Dimensions (H x W x D) | 5.9″ x 3.8″ x 1.4″ (150 x 95 x 35mm) |
| Weight | 14oz (400g) |
| Operating Temperature | -40° to +131°F (-40° to +55°C ) -22°F (-30°C) cold start |
| Ingress Protection | IP67 |
| Regulatory | FCC, IC |
| ESD | IEC EN 61000-4-2 |
| EMC | IEC EN 61000-4-3 |
| Mounting | Integrated wall and pole mount supporting .5″ band clamps. Additional mounting accessories supporting elevation adjustment are available. |
