Product Information
AMIT Wireless Inc IDG120-C6U01
4G CBRS USB Dongle
Features:
- Provides capability for laptop PC or existing USB-based equipment to connect to a LTE CBRS OnGo network.
- Builds with a high-speed Cat-6 LTE-TDD modem which can meet data throughput requirement for various applications.
- Carrier aggregation (CA) support that can bring higher data throughput and better user experience in the field.
- Compact dongle design with two internal CBRS LTE antennas. Easy for installation and carry.
- Compatible with Microsoft Windows, Linus, Apple, Mac and Google Chromebook operating systems.
- Cat-6 CBRS LTE USB Dongle
- 1* Nano-SIM (4FF) Slot
- 2* Internal LTE Antennas
- 1* Bi-Color LED Indication
- Plastic (PC) Housing
- Operation at -30°C ~ 40°C

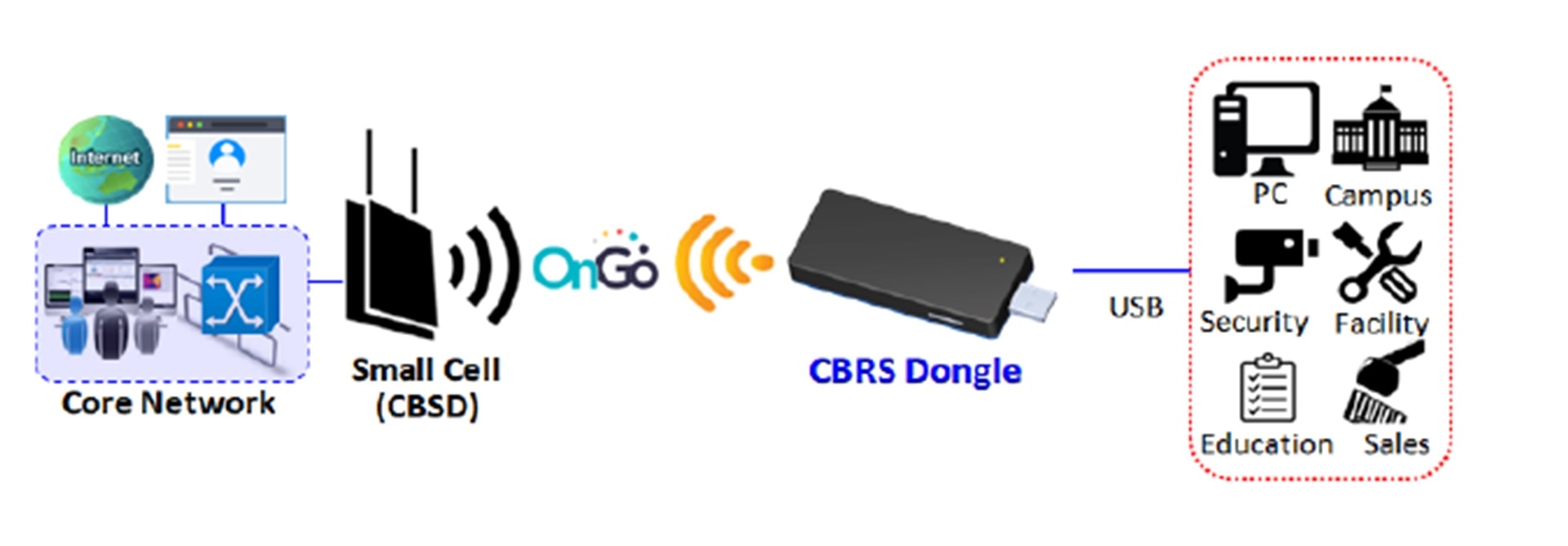

Application:
- Distance Learning
- Campus Networking
- Enterprise Private LTE
- In-Building Network
Specifications
Specifications IDG120-C6U01
| Dimension | 3" x 2" x 0.5" inch |
| Weight | 0.05 lbs |
| Device Interface | |
| LTE Module | 1*Cat-6 LTE-TDD |
| SIM | 1*Nano-SIM Slot (4FF) |
| LTE Band | Band 48 (CBRS) |
| 2x CA (Downlink) | B48+B48 |
| Power Input | DC 5V (USB Type A) |
| LED | 1* bi-color LED |
| WAN & Uplink | |
| WAN | CBRS LTE |
| Network Monitor | ICMP (through Connection Manage |
| Environment | |
| Operation Temperature | -22°F to +104°F (-30°C to +40°C) |
| Storage Temperature | -22°F to +140°F (-30°C to +60°C) |
| Humidity | 10%~95% (non-condensing) |
| Enclosure | Plastic, PC |
| Dimension | 92(L)x36.2(W)x14(H)mm |
| Certification | • FCC Part 15B • FCC Part 96 for CBRS • CBRS OnGo capable |
