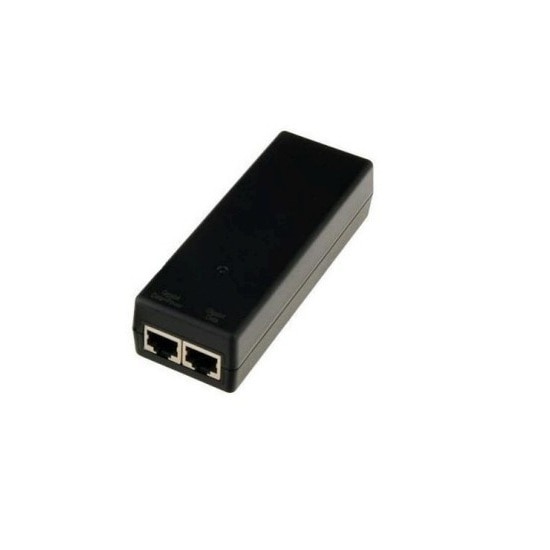

Cambium PoE 30.5W 56V GbE DC Injector Indoor Energy Level 6 Supply Accepts C5 Connector
- SKU: N000000L034B
$43.10
- Manufacturer: Cambium Networks
- Cambium Networks 30.5W 56V 5GbE DC PoE Injector Datasheet: Download
Product Information
Cambium Networks N000000L034B
PoE, 30.5W, 56V, GbE DC Injector, Indoor, Energy Level 6 Supply, accepts C5 connector
This Cambium Gigaibit PoE Power supply is a lower-priced option for powering the PMP and PTP 450i radio product
N000000L034 is a 56 VDC, 30W power supply; it can be used instead of N000065L001B provided you do not intend to use the AUX port with a device that exceeds 10 watts.
This PSU requires an Type C5 AC Line cord. Supplied with AU power cable
Specifications
| Output Voltage | 56VDC (±5%) |
| Output Power | 30W |
| Ethernet | 5 Gigabit |
| AC Power Input Connection | 3-wire AC inlet; IEC-60320 Type C6 |
| AC Voltage Input | 90VAC to 300VAC |
| AC Frequency Range | 47Hz to 63Hz |
| Efficiency | Energy Level 6 |
| ESD Surge Protection | 6kV / 8kV contact/air (per EN61000-4-2) |
| Lightning Surge (Data/PoE) | 4kV common, 2kV differentia (per EN61000-4-5) |
| Hold-up Time | 10ms at max load |
| Operating Temp | 0°C to +50°C |
| Non-Operating Temp | −40°C to +70°C |
| Operating humidity | 5% to 95% non-condensing |
| Non-Operating Humidity | 0% to 95% non-condensing |
| Operating Altitude | 2,000 meters |
| Dimensions L x W x H | 140mm x 53mm x 35mm (5.51in x 2.08in x 1.38in) |
| Case Color | Black |
| LEDs | Blue (DC Out) |
