CyberPower Intelligent LCD UPS System, 750VA/450W, 12 Outlets, AVR, Compact
- SKU: AVRG750LCD
Product Information

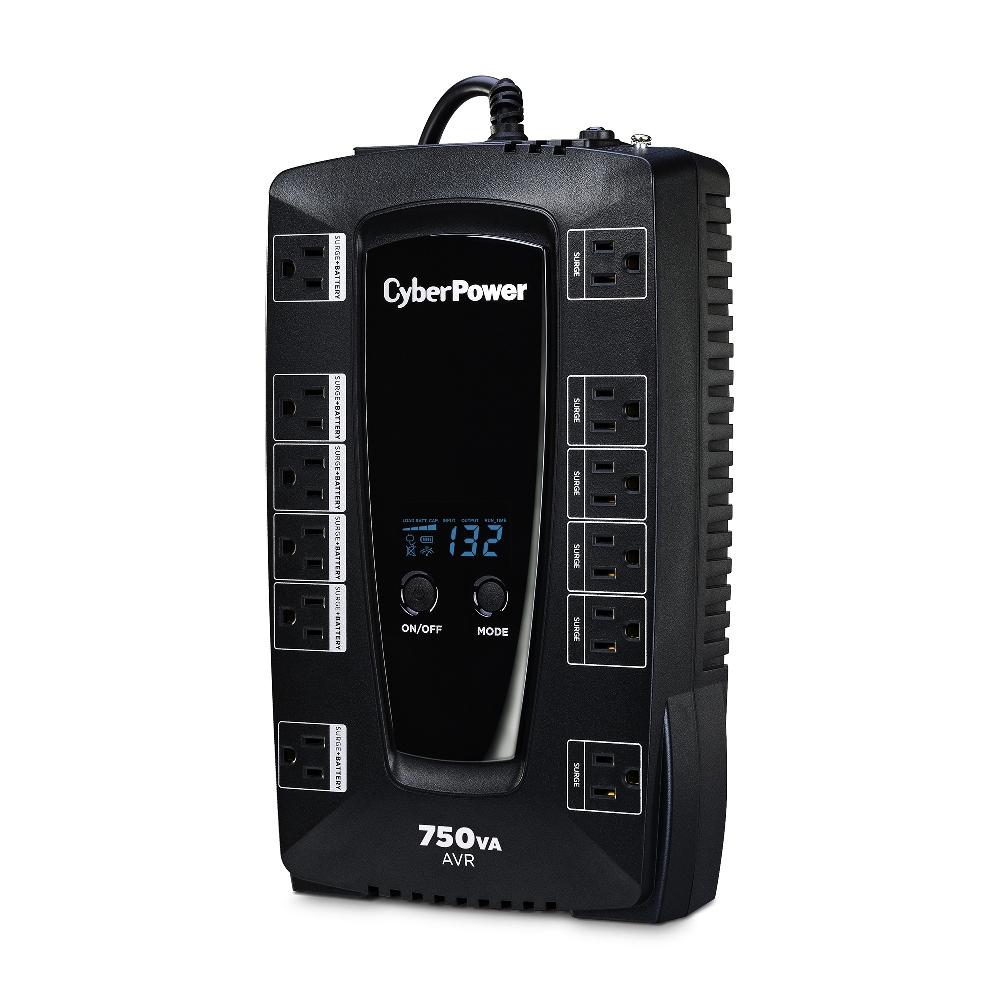

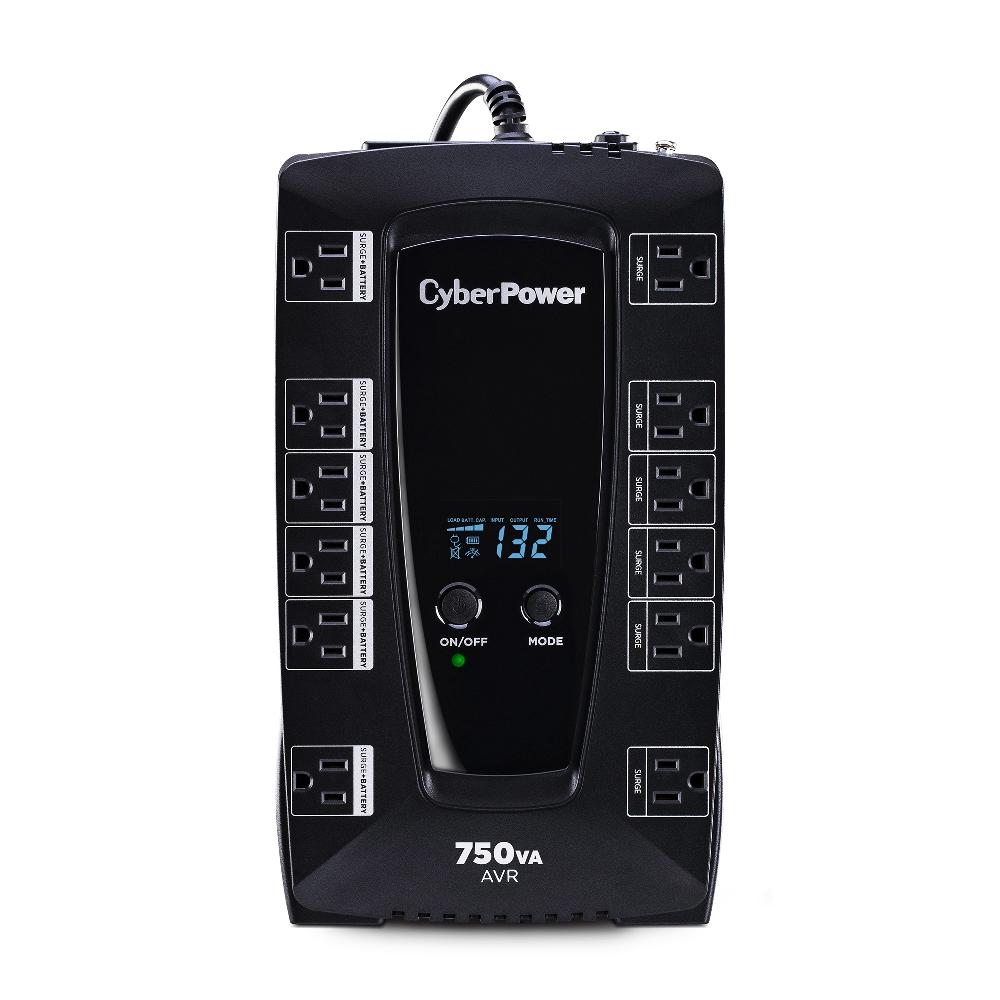

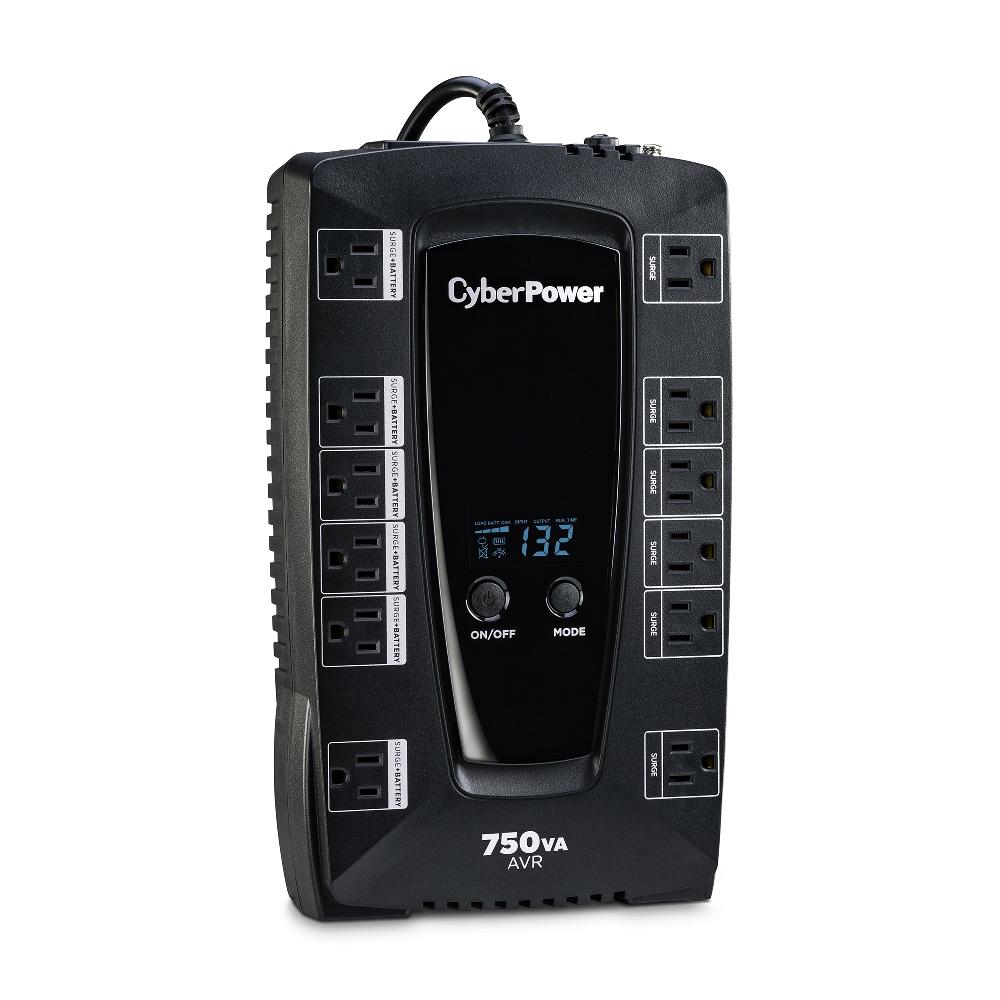

CyberPower AVRG750LCD
Intelligent LCD UPS System, 750VA/450W, 12 Outlets, AVR, Compact
A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available here.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
Features:
- 750VA / 450W
- Line Interactive Topology
- Automatic Voltage Regulation
- Multifunction LCD Screen
- GreenPower UPS™
- Full-time Surge Protection and Battery Backup
- Desktop Form Factor
- 12 Outlets/USB Port/RJ11 Protection
- PowerPanel® Personal Edition
- 3-Year Warranty
Specifications
Specifications AVRG750LCD
UPS Topology | Line Interactive |
Energy Saving | GreenPower UPS™ Bypass Technology |
INPUT | |
Voltage | Nominal 120V |
Frequency | 60Hz ± 3Hz |
Input Voltage Range | 90Vac – 148Vac |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length | 5' |
OUTPUT | |
VA | 750 |
Watts | 450 |
Automatic Voltage Regulation | Boost 1 +10% / Buck -10% |
On Battery Voltage | 120Vac ± 5% |
On Battery Frequency | 60Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |
Outlets - Total | 12 |
Outlet Type | NEMA 5-15R |
Outlets - Battery & Surge Protected | 6 |
Outlets - Surge-Only Protected | 6 |
Rated Power Factor | 0.6 |
Overload Protection | Internal circuitry limiting / circuit breaker |
Transfer Time | 4ms |
BATTERY | |
Runtime at Half Load (min) | 7.6 |
Runtime at Full Load (min) | 2.5 |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/7AH |
Hot-Swappable | No |
Replacement Battery | RB1270B |
Battery Quantity | 1 |
User Replaceable | Yes |
Typical Recharge Time | 8 Hours |
SURGE PROTECTION & FILTERING | |
Surge Suppression | 1,030 Joules |
Phone RJ11 / Ethernet RJ45 | 1-In, 2-Out (RJ11) |
EMI/RFI Filtration | Yes |
MANAGEMENT & COMMUNICATIONS | |
HID Compliant USB Port | Yes |
Management Cable | USB Cable |
LED Indicators | Power On, Wiring Fault |
Audible Alarms | On Battery, Low Battery, Overload, Fault |
LCD Indicators | Voltage, Frequency, Runtime, % Load, % Battery, Online, Muted |
Software | PowerPanel® Personal Edition |
PHYSICAL | |
Form Factor | Compact |
Dimensions (WxHxD) (in.) | 12.2 x 7 x 3.5 |
Weight (lbs.) | 12.4 |
Shipping Dimensions (WxHxD) (in.) | 14.8 x 9.6 x 5.1 |
Shipping Weight (lbs.) | 13.2 |
ENVIRONMENTAL | |
Operating Temperature | 32°F to 104°F / 0°C to 40°C |
Operating Humidity | 0% - 90% non-condensing |
Storage Temperature | 5°F to 113°F / -15°C to 45°C |
Maximum Operating Elevation | 6,562 ft / 2,000 m |
Maximum Storage Elevation | 50,000 ft / 15,000 m |
CERTIFICATIONS | |
Safety | UL1778 4th, cUL 107.3-05, FCC DOC Class B |
Environmental | RoHS Compliant |
WARRANTY | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | 150000 |
