Everstar GbE-GUARD SX2

Everstar GbE-GUARD SX2

2-Port GbE ESD&PoE+ Surge Protector

Surge protection for 802.11AC Wave 2 access point device with 2 GbE port, Save time, expense and space for 802.11AC Wave 2 devices installation and repair.

The 2nd port as a spare or replacement for single Ethernet device installation, 100/1000 MbPS.

Multi-stage and hybrid design by Gas Discharge Tube (GDT) and EPD TVS technology provide the fast turn-on and low clamping voltage protection.

Provides transient protection for the following spec:

• IEEE 802.3 af/at (Transmission) Mode A and B
• IEC 61000-4-2 (ESD) ±30KV(Contact/Air)
• IEC 61000-4-4 (EFT) 60A(5/50ns)
• IEC 61000-4-5 (Lightning/Surge) 6 KA(8/20μs)
• Cable Discharge Event (CDE)

Features:

• 2.8V data clamping voltage
• Nominal PoE voltage < 60V
• Fast Response Time (<3ns)
• Extremely Low Capacitance (<2.5pf)
• Impedance 100 ohms
• Line and equipment bidirectional protection
• Any polarity on any pair - total flexibility
• Removable board design for easy installation and replacement

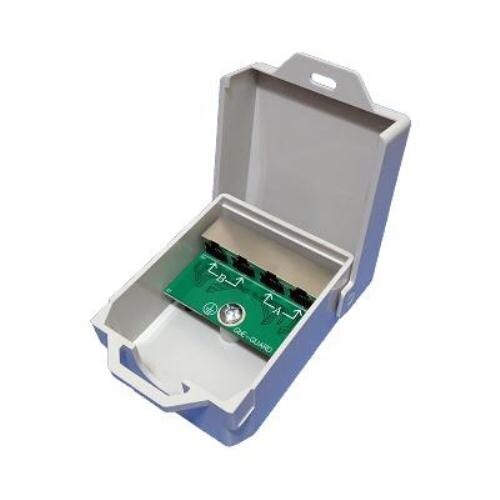

• Impact and weather resistant enclosure with locking hinged cover
• Mounting holes are provided on the rear of the enclosure for wall or pole mounting
• Back knockout feature for concealing wires
• Tested standards IEC 61643-21,IEC61000-4-2, IEC 61000-4-4, IEC61000-4-5
• RoHS, REACH compliant
