Grandstream Enterprise Portable Wi-Fi Phone
- SKU: WP820
$307.46
- Manufacturer: Grandstream
- Data Sheet: Download
Product Information

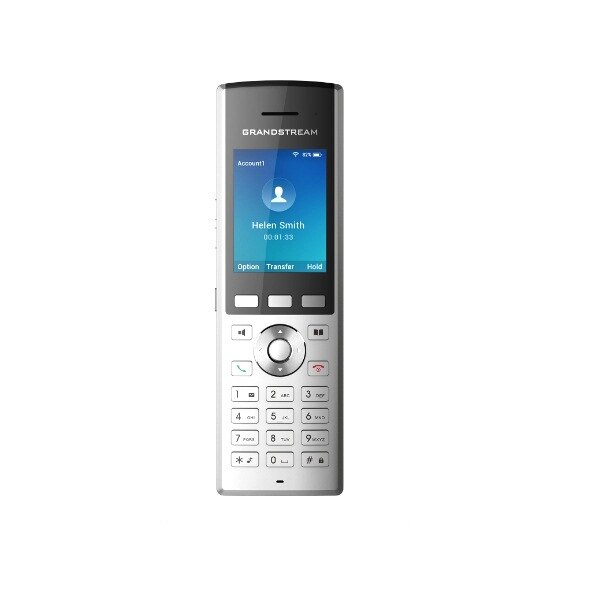

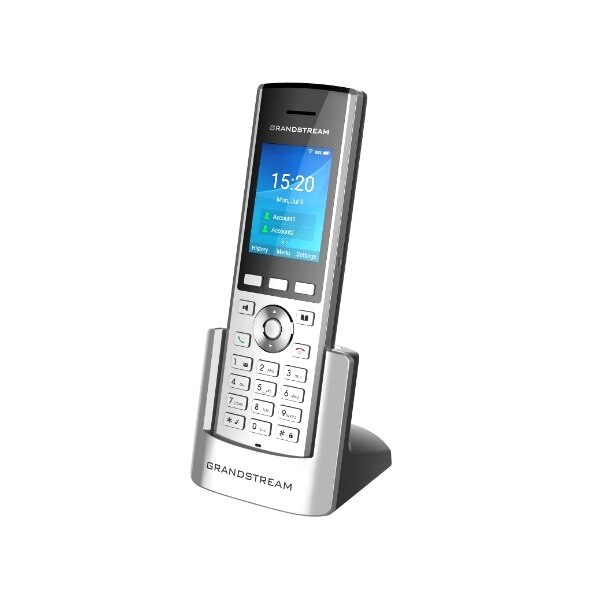

Grandstream WP820
Enterprise Portable Wi-Fi Phone
The WP820 is a portable WiFi phone designed to suit a variety of enterprises and vertical market applications, including retail, logistics, medical and security. This powerful, portable WiFi phone comes equipped with integrated dual-band 802.11a/b/g/n WiFi support, advanced antenna design and roaming support, and integrated Bluetooth for pairing with headsets and mobile devices. By adding 7.5 hour talk time and HD voice with dual-MICs, the WP820 offers a powerful combination of features, mobility and durability to suit all portable telephony needs. The GMC08, a battery charging pack for the WP820 that can charge up to 8 batteries at a time, is available seperately.
Features:
- Dual-band WiFi with efficient antenna design and advanced roaming support
- Bluetooth for syncing headsets and mobile devices (contacts and call transferring)
- HD voice & dual MIC design with AEC and Noise Shield Technology
- Rechargeable 1500mAh battery, 7.5 hour talk time, 150-hour standby
- Accelerometer and configurable button for push-to-talk, panic and other related functions
- Micro USB port and 3.5mm headset jack
- 2 SIP accounts, 2 lines
- Supports custom Android apps that fit the phone’s screen/keys
- Battery charger (GMC08) that can charge up to 8 batteries at a time is available separately
Specifications
Specifications WP820
| Protocol/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
| Voice Codecs and Capabilities | Support for G.711µ/a, G.729A/B, G.722 (wide-band), iLBC, Opus, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS |
| Wi-Fi | Yes, integrated dual-band Wi-Fi 802.11 a/b/g/n (2.4GHz & 5GHz) |
| Wi-Fi Encryption | WEP, WPA/WPA2, WPA Enterprise |
| Graphic | 2.4 inch (240x320) TFT color LCD |
| Peripherals | 3 soft keys, dial, hangup, speakerphone, phonebook, backlit keypad, proximity sensor, accelerator, vibration motor, volume button and navigation keys |
| Push-to-Talk | Customizable button for push-to-talk, panic call and other related functions |
| Bluetooth | Yes, Bluetooth 4.2 |
| Auxiliary Ports | 3.5 mm headset jack, Micro USB port for charging , dual-MIC, dual-color LED |
| Telephony | Hold, transfer, forward, 3-way audio conference, downloadable phonebook (XML, LDAP, up to 1000 items), call waiting, call log (up to 100 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over, push to talk |
| Operating System | Android 7.0, supports custom Android apps that fit the phone’s screen/keyboard |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control |
| HD Audio | Yes, both on handset and speakerphone with support for wideband audio,HAC supported |
| QoS | 802.11e (WMM) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Multi-language | English, Arabic, Chinese, Czech, Dutch, German, French, Hebrew, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish and more |
| Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file, manual upload, USB upgrade |
| Power & Green Energy Efficiency | Input: 100-240VAC; Output: +5VDC, 1A (5W) 1500mA Li-ion battery, 150h standby time and 7.5h talk time |
| Physical | |
| Headset dimensions | 168.5 x 52.5 x 21.8 mm 6.63" x 2.06" x 0.85" |
| Charger cradle dimensions | 76 x 73 x 81mm |
| Handset weight | 161g |
| Handset package weight (not including QIG) | 456g 1 lbs |
| Temperature and Humidity | |
| Operating Temperature | 0ºC to 45ºC |
| Operating Humidity | 10-90% (non-condensing) |
| Storage Temperature | -20ºC to 60ºC |
| Storage Humidity | 10%-90% (non-condensing) |
| Durability | Drop-safe from 1.2 meter height |
| Compliance | CE: EN 301 893; EN 300 328; EN 55032; EN 55035; EN 61000-3-2;EN 61000-3-3; EN 62368-1; EN 301 489-1/17; EN 50360; EN 62479; EN 50663; EN 50566. FCC: FCC Part 15B; FCC Part 15C; FCC Part 15E; FCC Part 68 HAC. RCM: AS/NZS 4268; AS/NZS 60950.1; AS/NZS CISPR 32; CISPR 35; AS/CA S004; AS/ ACIF S040. Japan: MIC-R; China: SRRC; EAC; RoHS 2.0(2011/65/EU&(EU)2015/863) REACH |
