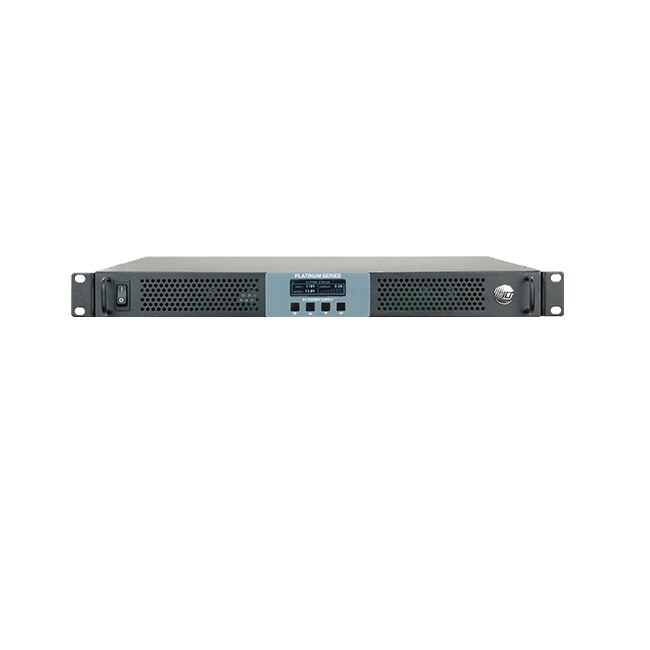

ICT Platinum Series 48VDC / 30 Amp / 1RU Power Supply with TCP/IP Ethernet
- SKU: ICT1600-48SC
$2,280.00
- Manufacturer: ICT
- Data Sheet: Download
Product Information
ICT ICT1600-48SC
Platinum Series 48VDC / 30 Amp / 1RU Power Supply with TCP/IP Ethernet
ICT Platinum Series 1RU DC power supplies provides 800 or 1600 watts of power and is available with 12, 24 or 48VDC output. Ethernet-based monitoring and control is standard on every model. Available battery management with LVD includes battery discharge testing, state of charge and run time remaining reporting. Enhanced security and reliability features include SNMPv1/2c/3, TLS 1.2, fan fail detect alarms, and extra high margin components designed for long life and enhanced reliability.
Features:
- 1600 watts of output power
- 48 VDC output
- 90 - 93% efficiency over a broad power range
- Universal power factor corrected AC input
- Standard Ethernet communications provides power supply monitoring and control
- Network security protocols include HTTPS, TLS 1.2, SNMPv1/2/3
- Optional battery backup with LVD and advanced battery management features including run time remaining, discharge testing
- Adjustable output voltage
- Adjustable battery charge current limit
- 2 year warranty
Specifications
Specifications ICT1600-48SC
| Continuous Output Current - 12V | 120A, 60A |
| Continuous Output Current - 24V | 60A, 30A |
| Continuous Output Current - 48V | 30A, 15A |
| Efficiency (typical) - 12V | 90% @ 220VAC |
| Efficiency (typical) - 24V | 91% @ 220VAC |
| Efficiency (typical) - 48V | 93% @ 220VAC |
| Output Voltage Range - 12V | 11.5 - 15.5VDC |
| Output Voltage Range - 24V | 23.0 - 31.0VDC |
| Output Voltage Range - 48V | 46.0 - 62.0VDC |
| Input Voltage Range | 90-300VAC Derate 2% / V <100VAC |
| Frequency Range | 50/60Hz |
| Power Factor (typical) | 0.99 |
| Output Ripple - 12V | 30mV RMS |
| Output Ripple - 24V | 30mV RMS |
| Output Ripple - 48V | 60mV RMS |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Mechanical | |
| Form Factor | 1RU - 19” rack mountable |
| Dimensions (L x W x H) | 16.5 x 19.0 x 1.74 in. /419 x 483 x 44 mm |
| Weight | 15 lbs / 6.8 kg |
| AC Input Connectors | Terminal Block, #8 - #16 AWG |
| DC Output Connectors | Busbars with 3/8” Nuts & Washers |
| Remote Alarm Connectors | Terminal Block (#16 to #24 AWG) |
| Environment | |
| Operating Temperature Range | -30 C to +70 C Derate 2%/ C > 50degree Temperature Controlled Fans (front to rear airflow) |
| Standards | CSA22.2 No. 60950-1, FCC Class B, CE, ROHS |
