ICT 7.5 Amp 48 V IntelliCharge DC Power Supply, 360 Watts Output Power
CA$603.63
Product Information
- Description
- Specifications
ICT ICT24048-7BC2

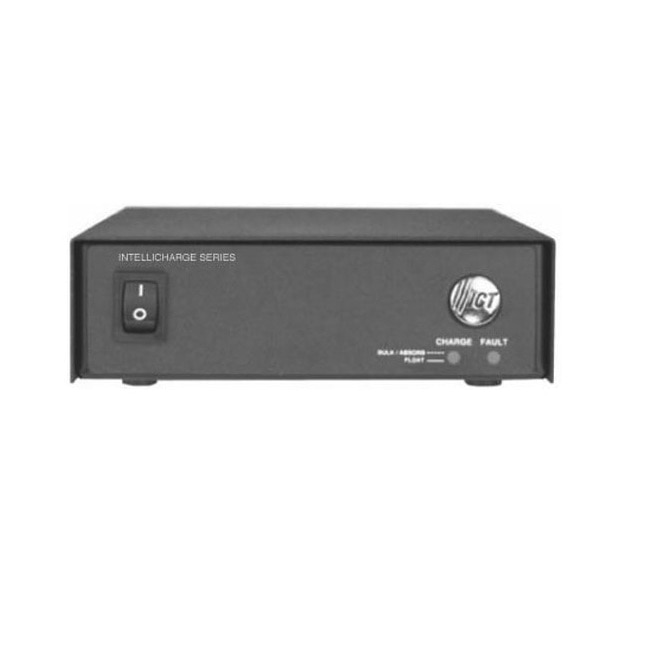

7.5 Amp 48 V IntelliCharge DC Power Supply, 360 Watts Output Power
The ICT24048-7BC2 is a high efficiency, power factor corrected universal AC input DC power supply and three stage battery charger that operates as a DC UPS, providing uninterrupted DC power to critical loads, even when AC mains fail. The ICT IntelliCharge Series design allows the battery charge to be regulated independently from the DC outputs, meaning that the battery will always receive the optimal charging current without the load being affected. Intelligent 3-stage charging will bring a battery back to a full state of charge much faster than trickle or float charging. The IntelliCharge Series supports temperature compensated charging and adjustable battery chemistry types, and remote alarms.
Features:
- PFC 100-265VAC Input Voltage
- -30°C to 60°C Operating Temperature
- Intelligent 3-Stage Battery Charging
- Integrated LVD
- Temperature Compensated Charging
- Form C Alarm Contacts
- Optional 1RU Rack Mount Kit
Specifications
| Continuous Output Current | 7.5A |
| Efficiency (typical) | 93% @ 220 VAC |
| Default Output Float Voltage | 54.6 VDC |
| Input Voltage Range | 100-265 VAC |
| Frequency Range | 50/60Hz |
| Power Factor (typical) | 0.99 |
| Output Ripple - all models | < 50mV RMS |
| LVD Disconnect Voltage | 44.0VDC |
| LVD Reconnect Voltage | 50.0VDC |
| Mechanical | |
| Dimensions LxWxH | 7.9 x 5.9 x 1.8 In | 200 x 149 x 46 mm |
| Weight | 2.61 Lbs | 1.19 kg |
| AC Input Connectors | IEC 320-C14 |
| DC Output Connectors | 4 position terminal block |
| Remote Alarm Connectors | 5 position pluggable wire clamp connector |
| Environmental | |
| Operating Temperature Range | -30°C to +60°C Derate 2%/ C > 50°C |
