Product Information

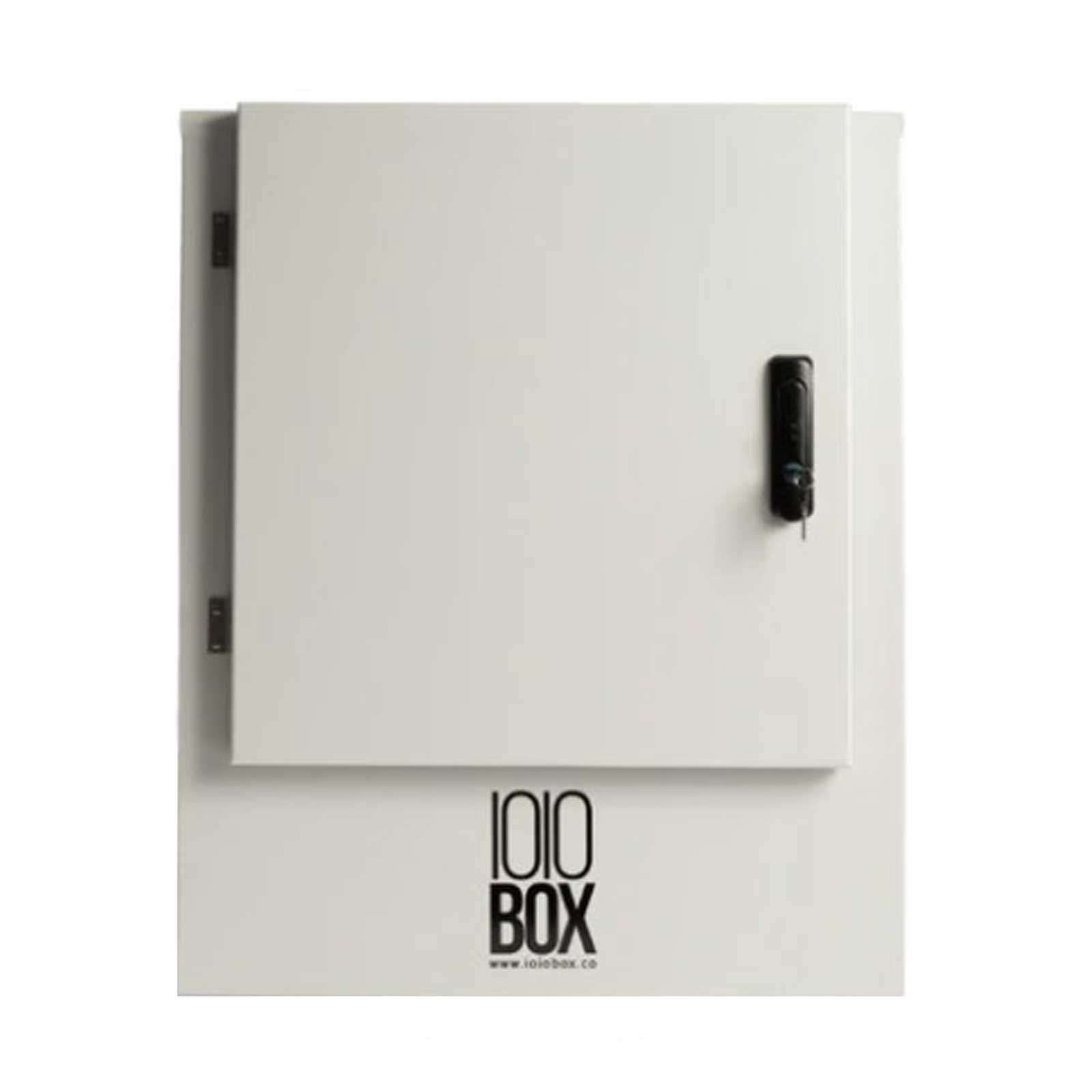

The Minikin is ideal for micro-pop and terragraph deployments. It's got all of the standard IOIOBox features you've come to love: lightweight aluminum, modular door and temperature regulation, multiple cable ingress options, and a proprietary actuating U rack assembly. It's got room for two full size batteries plus a first of it's kind vertical rack mount with 4U capacity.
Product Features- NEMA 4X and IP65 Rated
- Powder-coated aluminum
- Overall dimension: 27.423”W x 11.487”D x 33.25”H

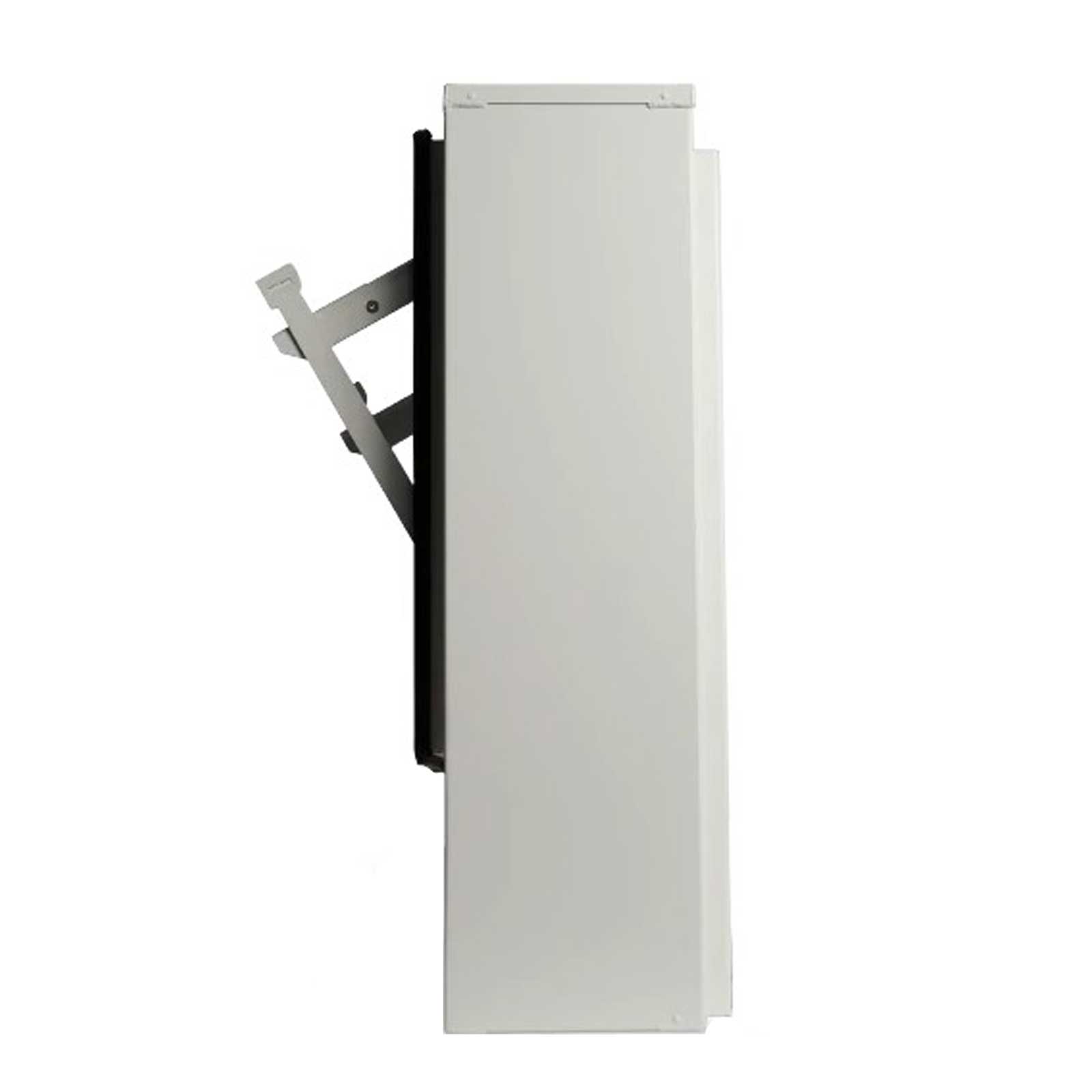

- Removable, 4U horizontal rack space with reclining action
- Full service access, door removes entirely
- Cable ingress options:
- M12x5/M20x3 Cable Glands (included)
- Cable Ingress Hood (optional)
- Roxtec EzEntry 16 (optional)
- 3-point lock and latch
- Dual vented rear door, with options:
- Vent Screens (included)
- Vent Filters (optional)
- PowerVents (optional)

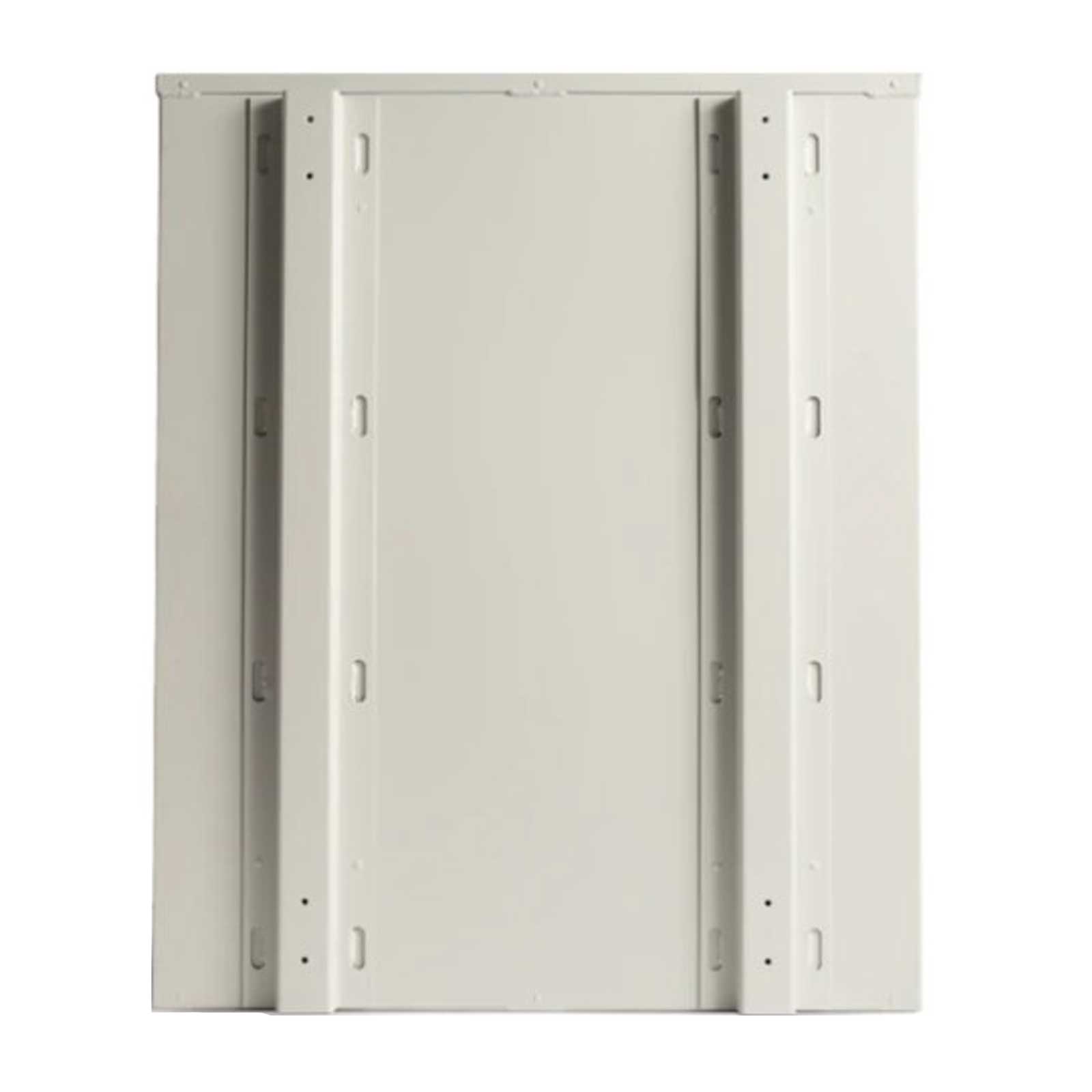

- Includes UniHangers, for easy mounting
Specifications
| Overall Dimensions | 27.423”W x 11.487”D x 33.25”H |
| Material | Powerder Coated 0.09“ Aluminum |
| Internal Dimensions | P27.00“W x 8.625”D x 32.827”H |
| Cable Ingress Opening | 1.457” W x 6.220”H |
| Overall Door Openings | 20.604”W x 22.375”H |
| Rackable Space | 4U / 7.50” |
| Max Rack Depth w/Articulation | 1st U - 17.875” |
| 2nd U - 21.875” | |
| 3rd U - 24.875“ | |
| 4th U - 27.5” | |
| Max Rack Depth w/o Articulation | 27.5” (Rack to Floor) |
| Available Space Above Rack | 5.5” (Rack to Ceiling) |
| Wall/UniStrut Mounting | 16” (Center to Center) |
| Weight w/o Door | 30 lbs |
