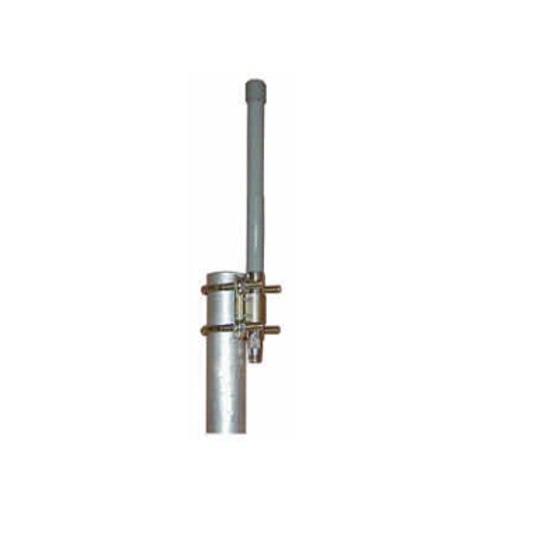

ISP Supplies 2.4GHz 5dBi Omnidirectional Antenna NM NON SWIVEL
- SKU: OD24-5-NM
$4.03
- Manufacturer: ISP Supplies
Product Information
ISP Supplies OD24-5-NM
2.4GHz 5dBi Omnidirectional Antenna NM NON SWIVEL
Applications:
- 2400 to 2483 MHz band
- 2.4 GHz ISM Band
- WiFi System
- Point to Multi-point
Features:
- High Gain, Broad Band
- High Quality Fiberglass Radome
- All Weather Operation
- Supplied with steel Mounting Kit
Specifications
Specifications OD24-5-NM
| Frequency | 2400-2483 MHz |
| Bandwidth | 83 MHz |
| Gain | 5 dBi |
| Beamwidth | E: 30°; H: 360° |
| VSWR | ≤1.5 |
| Impedance-Ω: | 50 |
| Polarization | Vertical |
| Max Power | 100 W |
| Connector | N Male |
| Dimensions | 11.8" inches |
| Weight | 1.10 lbs. |
| Pole Diameter | Φ 1.5” to 1.9” |
