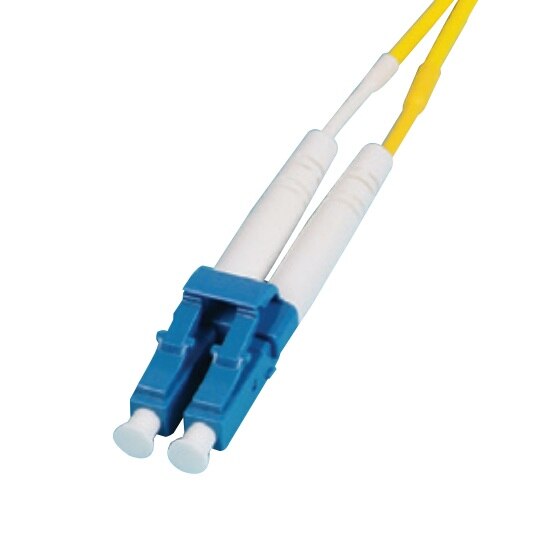

Ilsintech Splice On Connector, LC Duplex, SM, UPC, 2mm
- SKU: LCD-SM-UPC-20-SA
$21.45
- Manufacturer: IlSintech
Product Information
Ilsintech LCD-SM-UPC-20
Splice On Connector, LC Duplex, SM, UPC, 2mm
Features
- Accordance with IEC61754-20, TIA/EIA604-10-A
- Telcordia GR-326-core tested
- Enhanced high quality with improved optical features (Splice Loss & Return Loss)
- Enhanced & Improved highly tensile strength (less than 40N)
- Satisfied with Vertical Burn Test. Materials compliance with UL94V-0
- Housing Color : SM-UPC(Blue), SM-APC(Green), MM(Beige)
Use
- Medium and Long Range Optical Transport Circuit, LAN, CATV, FA, OA
- PC Transport System, Measuring Tools, etc.
Specifications
Specifications LCD-SM-UPC-20
| Connector Style | LC |
| Polish Type | UPC |
| Repeating Operation Test | 500 Cycle, ≤ 0.2dB |
| Insertion Loss | ≤ average 0.2dB (≤ max 0.3dB) |
| Return Loss | ≥ 50dB |
| Temperature Range | -40°C~85°C |
| Fiber | Singlemode 9/125 |
| Tensile Strength | < 40N for 0.9mm, 0.2mm fiber |
| Cable | 0.9mm, 2.0mm Cable |
