Inscape Data 16-Port Gigabit Managed 802.3af/at L2 PoE Switch with 8 PoE Ports, 4 Gigabit RJ45 & 4 10 Gigabit SFP+ Fiber Uplink Ports, 30W per PoE Port, 250W Total
- SKU: LPS6844ATM-T1
- Manufacturer: Inscape Data
Product Information
Inscape Data LPS6844ATM-T1
16-Port Gigabit Managed 802.3af/at L2 PoE Switch with 8 PoE Ports, 4 Gigabit RJ45 & 4 10 Gigabit SFP+ Fiber Uplink Ports, 30W per PoE Port, 250W Total

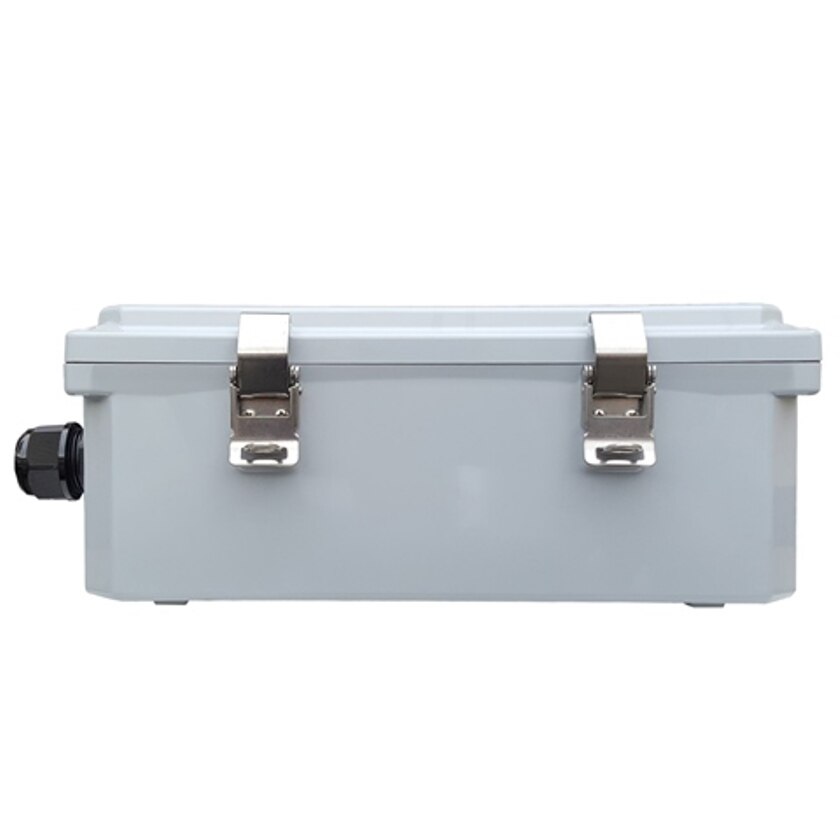

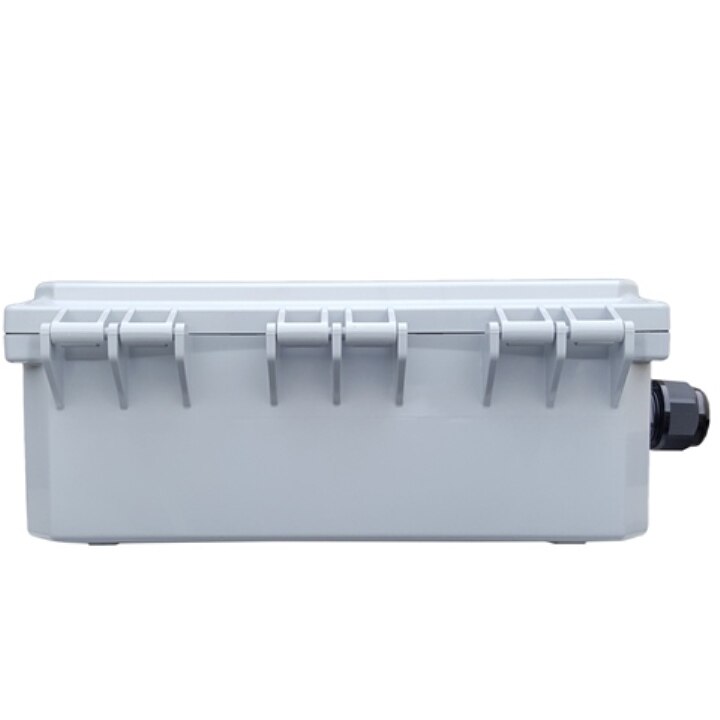

The LinkPower™ LPS6844ATM-T1 is All Weather 16-Port Layer 2 Managed Gigabit PoE (Power over Ethernet) Switch with Four RJ45 Gigabit and 4 10Gb SFP Fiber Optical Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch with dual power input redundancy, i.e., 120V~240AC and/or 48V DC input, that delivers data and power, 30W per PoE Port, over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure.
The LPS6844ATM-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier wifi installations. The remote manageable features offered by the LPS6844ATM-T1 will greatly reduce the daily maintenance cost. LPS6844ATM-T1 All Weather 16-Port Gigabit PoE is a managed network switch with Link Aggregation, VLAN, Trunking, and QoS technology to meet the accelerating demand for powering the most demanding outdoor PoE devices for up to 30W per PoE port. Furthermore, All fiber optic Ports support 10 Gbps uplink speed.
In addition, the LPS6844ATM-T1 supports IEEE802.1g VLAN and port based IEEE 802.1p QoS. LPS6844ATM-T1 All Weather Managed 8-Port Gigabit PoE Switch provide internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Data’s IP cameras and other vendor's high performance wireless backhaul products, thereby reducing equipment and installation costs.
Excellent performance and reliability
The 10Gb L2+ Industrial PoE Switch passed the rigorously testing to deliver excellent performance. As a L2+ managed switching solution, it also provides the flexibility to manage and prioritizes suitable-bandwidth traffic such as voice.
Secure and high Performance network connectivity
The switch can easily and securely deliver PoE power up to 30W to devices up to 100 meters away. High performance Gigabit network connectivity will help to speed file transfers and data processing, provide network performance and security, and keeps the powered devices connected and productive.
Stringent network security
Supports dynamic or static binding by users’ definition, such as IP, MAC, VLAN, Dynamic PORT, etc. Support port isolation, to prevent communication between two neighbor network equipment within the same broadcast domain, for reducing network risk; Supports perfect storm control function which can suppress broadcast, multi-cast, and uni-cast storm; Support specific ARP inspection which can effectively prevent ‘‘ARP spoofing attack’’ created by hackers or attackers via ARP packets.
Unified communications with open standards
As a managed network solution, it provides the high performance and advanced networking capability to deliver all networking communications and data (such as IP telephony, IP surveillance, and Video Streaming) over a 10Gb fiber optic network.
Features:
- L2+ features provide better manageability, security, QoS, and performance.
- 12*10/100/1000M Base-TX RJ45 Ports + 4*10Gb SFP+ Ports. All ports support line-speed forwarding mode, 368GB Switching Capacity
- Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, POE+ management, IP Source Guard, ARP inspection, ACLs etc
- Port security, allows setting different security level on each port with password, 802.1x, IP&MAC address Guard, RADIUS, & TACACS+
- Support spanning tree STP, RSTP and MSTP.
- Support enhanced management through WEB, CLI, TELNET, SNMP
- Operating Temperature: -22ºF to +158ºF (-30ºC to +70ºC)
Specifications
Specifications LPS6844ATM-T1
| Ports | 8*10/100/1000M PoE RJ45 ports 4*10/100/1000M RJ45 ports 4*10G SFP+ ports |
| Management port | 1x Console port |
| Reset key | 1x Reset key, for restore default settings |
| Switching Capacity | 368Gbps |
| PoE Feature | IEEE802.3af/at Support PoE management, PoE schedule and PoE status on per port basis |
| Packet Forwarding Rate | 77.38Mpps @ 64byts |
| Operating temperature | -30~+70°C |
| Power | AC Input: 110～240V/50～60Hz, DC Input: 48~57V, 250W Total system power |
| Software | |
| Layer 2+ Switching | |
| Spanning Tree Protocol (STP) | Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w |
| G.8032 ERPS | <50ms ring protection for industrial high reliable application |
| Aggregation | Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 8 groups Up to 16 ports per group |
| VLAN | Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) Port-based VLAN 802.1Q tag-based VLAN, & GVRP |
| DHCP Snooping (Layer 2) | Prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection |
| IGMP v1/v2 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups (source-specific multicasting is also supported) |
| Security | |
| Secure Shell (SSH) Protocol | SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL), HTTPS | SSL encrypts the http traffic, allowing advance secure access to the browser- based management GUI in the switch |
| Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses, and Dynamic MAC Address Authentication |
| IP Source Guard | Prevents datagram with spoofed addresses from being in the network |
| Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| ACLs | Support for up to 256 entries Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag |
| Quality of Service | |
| Hardware Priority Queue | Support 8 hardware queues |
| Scheduling | Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service (802.1p/ CoS) |
| Classification | Port based; 802.1p VLAN priority based; IPv4/IPv6 precedence/ type of service (ToS) / DSCP based; |
| Rate Limiting | Ingress policer; egress shaping and rate control; per VLAN, per port and flow based |
| Management | Web/ SSL, Telnet/ SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog |
| Web GUI interface | Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring |
| Dual Image | Dual image provides independent primary and secondary OS files for backup while upgrading |
| Firmware upgrade | Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well |
| Port mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| Other management | Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client |
| Green Ethernet | |
| Link detection | Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power on Gigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any packets when the switch detects the link up |
| Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter. |
| General | |
| Jumbo frames | Frame sizes up to 9KB supported on Gigabit interfaces |
| MAC Table | Up to 16K MAC addresses. |
| Discovery | |
| Link Layer Discovery Protocol (LLDP) | Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, principally wired Ethernet. |
