Inscape Data Outdoor 10/100/1000Mbps 6-Port 802.3af/at PoE Switch with 2 RJ45 Gigabit Uplink Ports, Up to 30W per PoE Port, 150W Total
- SKU: LPS840AT-T1
- Manufacturer: Inscape Data
- Data Sheet: Download
Product Information
Inscape Data LPS840AT-T1
Outdoor 10/100/1000Mbps 6-Port 802.3af/at PoE Switch with 2 RJ45 Gigabit Uplink Ports, Up to 30W per PoE Port, 150W Total

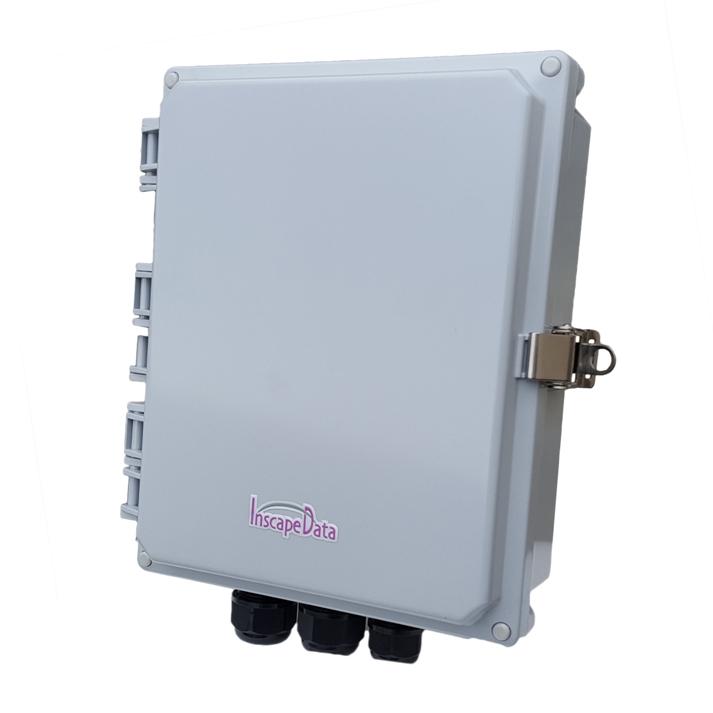

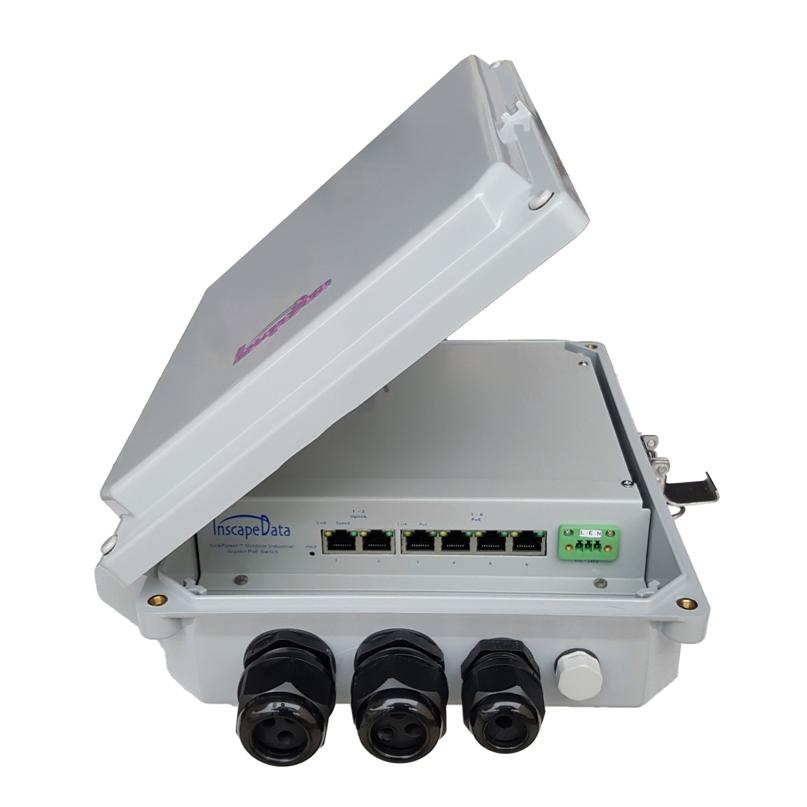

The LinkPower™ LPS840AT-T1 is All Weather 6-Port Gigabit PoE (Power over Ethernet) Switch with 4 Gigabit PoE Ports and 2 Gigabit RJ45 Uplink Ports is the industry first outdoor weatherproof high speed gigabit Ethernet switch that delivers data and power over one single network cable protected with an IP68 compliant weatherproof enclosure. The outdoor weatherproof rating of the systems is strictly based on how the top cover is closed. For the hinged cover without the four top cover screws, the outdoor weatherproof rating is IP66 and, otherwise, the outdoor rating is IP68 with the four top cover screws securely closed with the enclosure. The LPS840AT-T1 all weather Gigabit PoE switch is designed for industrial and commercial applications, e.g., video surveillance, remote security, wireless mesh, and carrier wifi installations.
LPS840AT-T1 All Weather 6-Port Gigabit PoE Switch with 2 Gigabit RJ45 Uplink Ports is a unmanaged network switch, and LPS840AT-T1 All Weather Gigabit PoE Switch provides up to 30W per PoE port and 120W total compliant to IEEE802.3af/at standards and internal LED displays that show device status for easy power management and troubleshooting. The PoE technology conveniently eliminates the need to install networked devices, such as Inscape Data’s IP cameras and SB300/BR300, and SB3000/BR3000 wireless products, thereby reducing equipment and installation costs.
Features:

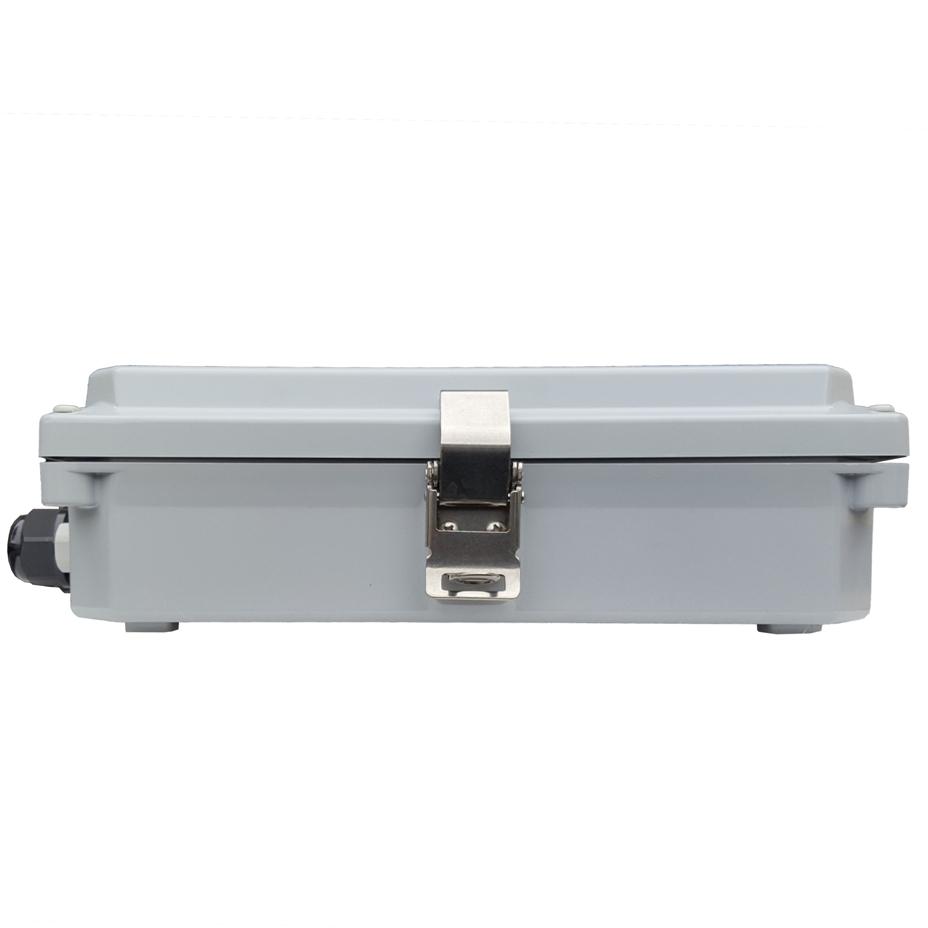

- IP66 if top cover closed by latch or IP68 if top cover closed by screws
- MTBF:190,000 hours (about 21 years)
- Integrated Industrial 3KV Ethernet surge protection
- IEEE 802.3af/at Power over Ethernet (PoE) standard
- 10/100/1000Mbps Auto-Negotiation and Auto-MDIX Gigabit Power over Ethernet RJ45 ports
- Supports 802.3af PoE Power maximum 15.4 watts and 802.3at PoE Plus maximum 30Watts and 48V DC for each PoE port
- Full wire-speed non-blocking reception and transmission
- 1MBit frame buffer memory and 8K entries MAC address table
- IEEE802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode
- Supports integrated address look-up engine, automatic address learning and address aging
- Supports Link Aggregation IEEE 802.3ad and fail over
- Supports Jumbo Frame in all speeds (up to 10K bytes packet frame size)
- Operating Temperature:-22ºF to +158ºF (-30ºC to +70ºC) C
Specifications
Specifications LPS840AT-T1
| Dimension | 10 x 8 x 3 inches |
| Weight | 5 lbs. |
| Connector | PoE Port: 4x1D/10D/1000BaseT(X) self-detect RJ45 Uplink Port: 2x10/100/1000BaseT(X) self-detect Uplink port |
| Forwarding Mode | Store-and-forward architecture. 192K forwarding memory |
| Network Medium | 10BASE-T. Cat3/ 4/ 5 UTP (*100m) 100BASE-TX: Cat5 or more UTP (s100m) 1000BASE-TX. Cat5 or more UTP («-100m) |
| Performance Specifications | Bandwidth: 8.8Gbps (non blocking) NeMork Latency (100 to 100M bps): Maximum delay less than 20ys Packet Buffer Memory: gsxB Integrated Industrial4KV Ethernet surge protection MTBF {Mean time between failures): 190.000 hours (about 21 years) Address Database Size: 1.000 |
| Protocols and Standards | IEEE 802.3, IEEE 802.3u: IEEE 802.3ab, IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI IEEE 802.3af/ IEEE 802.3at |
| LEDs Status | System: Power Every Port. connection status, PoE working status |
| Power Supply | Input voltage: 120V - 240V AC Output vo1tage: 48V DC IEEE802.3af standard, each port power is 15.4W, total power is 65W for d ports IEEE802.3at PaE+ standard, each port power is 30W, total power is 120W for 4 ports Support OCP ( Over-Current Protection ) and electronic protection Connection: 3-pin pluggable connecting terminal block |
| Working Environment | Operating Temperature: -30 r • 70 t Storage Temperature: -20°C • 75°C |
| Radition | FCC Part 15 Class B CE Mark. Commercial VCCI Class B EN 55022 {CISPR 22), Class B |
| Industrial Standard & Safety | CE Mark .commercial CE/LVD EN60950. RoHS, ULzesg1-1 |
| Warranty | 3 years |
