Jirous 80 GHz High Performance Parabolic Antenna, Dual Polarized, 2' (680mm)
- SKU: JRMC-680-80
$911.14
- Manufacturer: Jirous
- Data Sheet: Download
Product Information

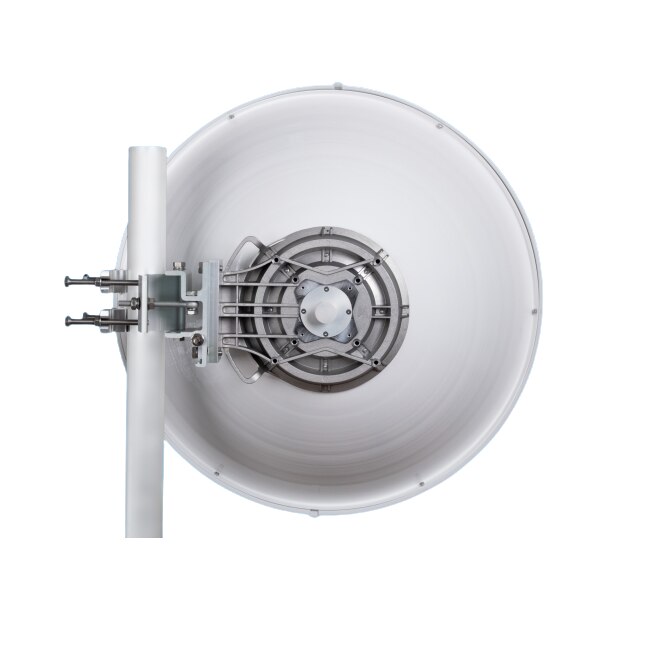

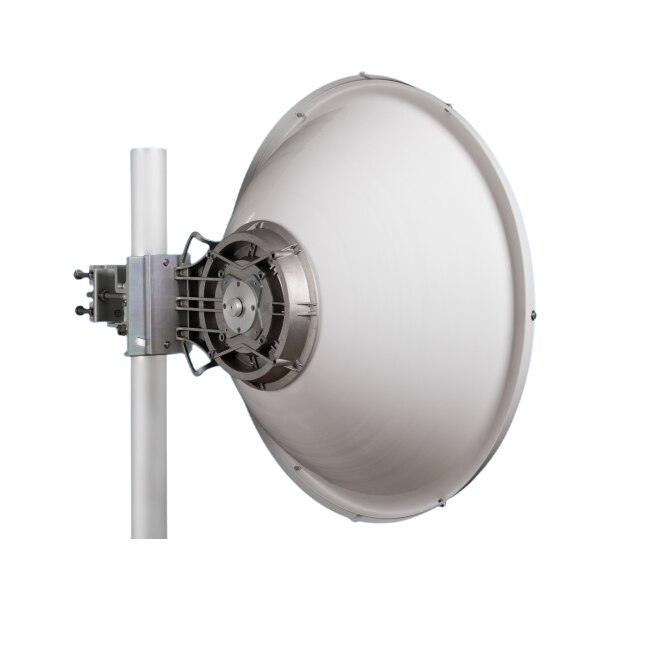

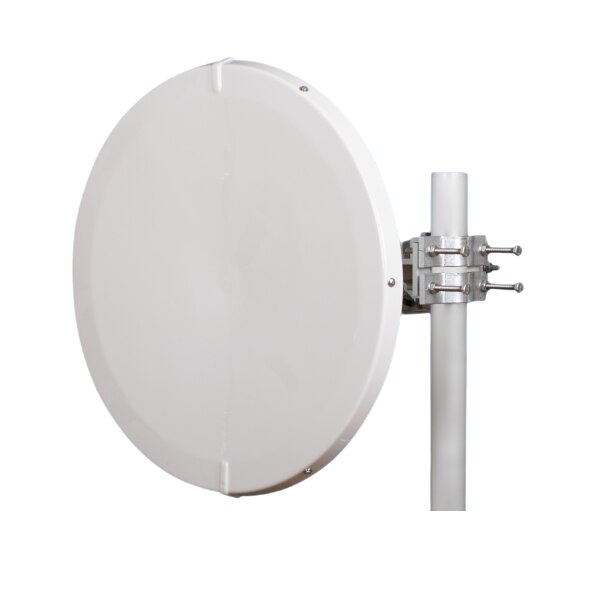

Jirous JRMC-680-80
80 GHz High Performance Parabolic Antenna, Dual Polarized, 2' (680mm)
Antenna JRMC – 680 – 80 is designed for microwave links at the frequency band 80 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3 and FCC Cat. A.
Features:
- Deep parabola with hight resistance to interference and high mechanical strength
- High neighboring links isolation
- Radom included
- Massive bracket JDMW-910 extra fine elevation and azimuth adjustment
- Right and left side mounting
- Extreme wind stability
Specifications
Specifications
| Frequency range | 71 - 86 GHz |
| Gain Low band | 50.7 ± 1.4 dBi |
| Gain High band | 51.6 ± 1.4 dBi |
| Beamwidth | -3 dB |
| Return loss | ≥ 15 dB |
| Front to back ratio | ≥67 dB |
| ETSI EN 302-217-4-2 v1.5.1 | Class 3 |
| US FCC | Cat.A |
| Polarization | depends on the radio unit installation; linear - horizontal and vertical |
| Parabola | ø 400 mm (1 ft) - Aluminium alloy, powder coated |
| Cover | UV steady plastic |
| Conection | waveguide ø 3.2 mm |
| Installation on mast | ø 40 - 120 mm |
| Operating wind load | max. 180 km/h |
| Survival wind load | max. 240 km/h |
Weight of antenna Weight of holder | 5.2 kg (11.5 lbs.) 3.3 kg (7.3 lbs.) |
| Shipping dimension | 800 x 800 x 350 mm/ 12.6 kg (28.8 lbs.) 31.49" x 31.49" x 13.77" inch |
