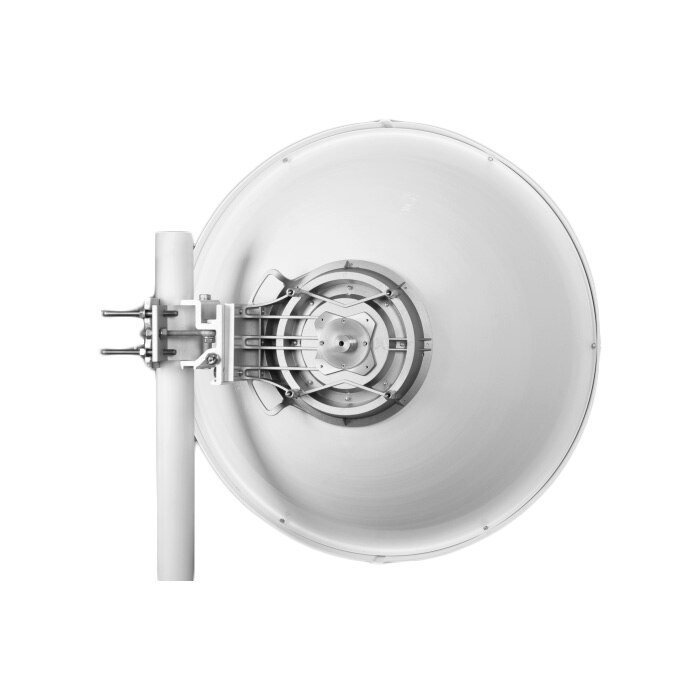

Jirous 11GHz Parabolic Dish Antenna with JDMW-900 AR Precision Mount
- SKU: JRMC-900-10/11Ra
$1,262.12
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JRMC-900
11GHz Parabolic Dish Antenna with JDMW-900 AR Precision Mount
Antenna JRMC – 900 – 10/11 is designed for microwave links at the frequency band 10 and 11 GHz. Precise performance with deep reflector dish complies with standard ETSI class 3.
Features:
- Deep parabola with great resistance to interference and high mechanical strength
- High neighboring links isolation
- Radom included

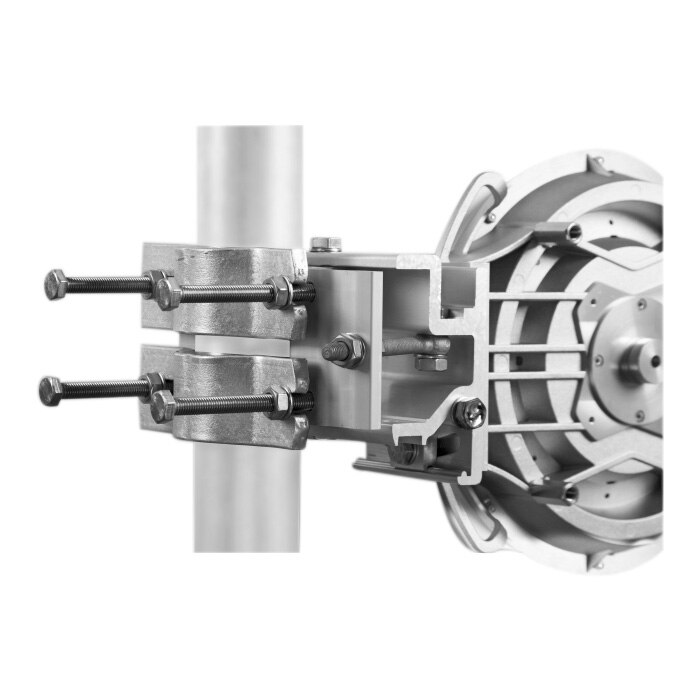

- Massive bracket JDMW-900 with accurate elevation and azimuth setting
- Right and left side mounting
- Extreme wind stability
Design for MW units:
- Mimosa
- Racom
- Alcoma
- Summit
- UBNT AF-11 - necessary to use JXAF-11 adapter
Specifications
Specifications JRMC-900
| Frequency range | 10.0 - 12 GHz |
| Gain Low band | 37.0 ± 1 dBi |
| Gain High band | 37.5 ± 1 dBi |
| Beamwidth | -3 dB 2.3° ± 0.5° |
| Return loss | ± 18 dB(10.3 - 11.7 GHz) |
| Front to back ratio | ≥62.5 dB |
| FCC standard | US FCC Part 101A (10.0-10.7 GHz); US FCC part 101B (10.7 - 11.7 GHz) |
| ETSI EN 302-217-4-2 | Class 3 |
| ACMA - RALI FX3 | Grade B |
| Polarization | depends on the Unit installation; linear - horizontal and vertical |
| Parabola | ø 900 mm (3 ft) - Aluminium alloy, powder coated |
| Cover | UV steady plastic ABS |
| Conection | waveguide ø 19 mm |
| Installation on mast | ø 40 - 120 mm |
| Operating wind load | max. 140 km/h (87 mph) |
| Survival wind load | max. 210 km/h (130 mph) |
