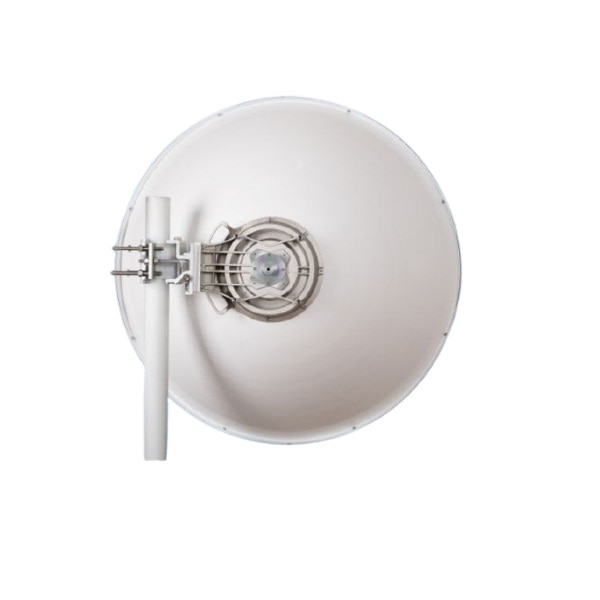

Jirous 17.1-19.7GHz 900mm 42.5dBi Parabolic Dish Antenna
- SKU: JRMC-900-17/18 Ra
$1,248.08
- Manufacturer: Jirous
- Data Sheet: Download
Product Information
Jirous JRMC-900-17/18 Ra
17.1-19.7GHz 900mm 42.5dBi Parabolic Dish Antenna
AAntenna JRMC – 900 – 17/18 is designed for microwave links at the frequency band 17 and 18 GHz. Precise performance with deep reflector dish complies with standard ETSI Class 3 and FCC cat. A.
Specifications
Specifications JRMC-900-17/18 Ra
| Frequency range | 17.1 – 19.7 GHz |
| Gain – Low frequency | 41.4 ± 1 dBi |
| Gain – High frequency | 42.5 ± 1 dBi |
| Front to back ratio | ≥ 70 dB |
| Beamwidth-3 dB | 1.2° ± 0.5° |
| Return loss (VSWR) | ≥ 17 dB |
| Polarization | Linear, vertical/horizontal |
| Electrical Compliance | US FCC Cat. A Class 3 ETSI EN 302-217-4-2 v1.5.1 |
| Mechanical | |
| Parabola | Ø 900 mm , aluminium alloy |
| Radome | UV steady plastic ABS |
| Input / output | Circle waveguide Ø 11 mm |
| Installation for mast | Ø 40 – 120 mm |
| Operating wind load | 140 km/h (87 mph) |
| Survival wind load | 210 km/h (130 mph) |
| Weight of antenna of holder | 10.4 kg (23 lbs.) 3.2 kg (7.1 lbs.) |
| Shipping dimensions | 1000 x 990 x 430 mm / 18.9 kg (41.6 lbs.) |
