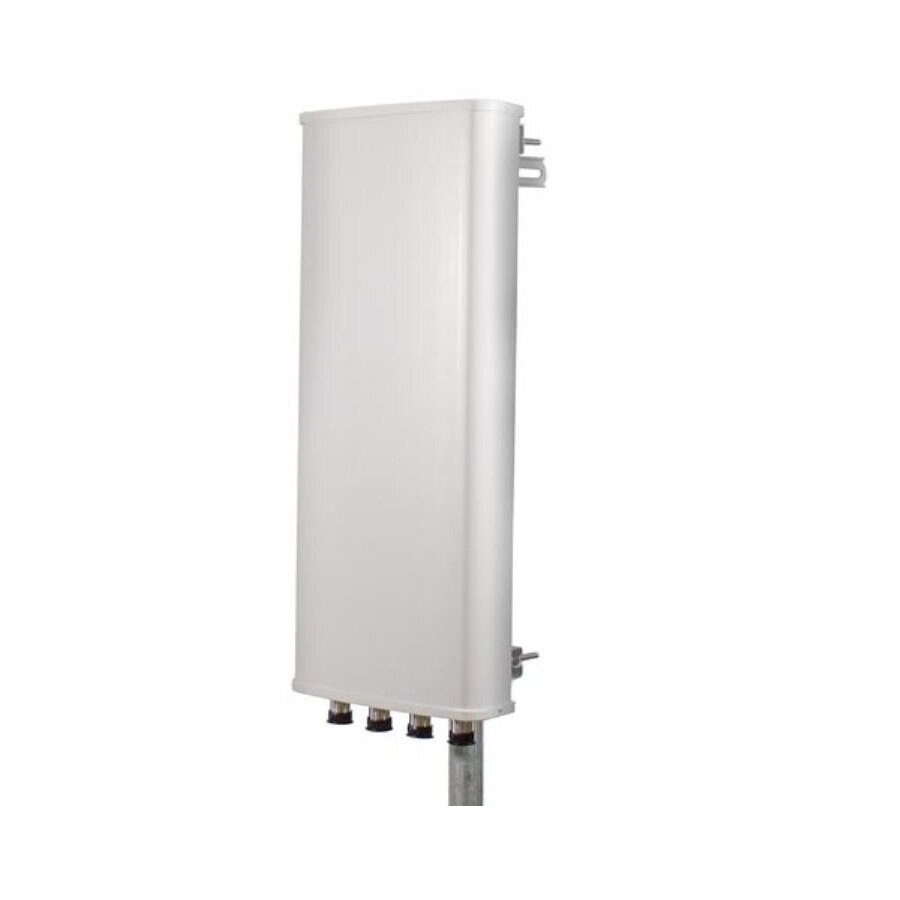

KP Performance 3 GHz 65 Degree ± 45 Degrees Slant (4-Port) 18 dBi Sector Antenna
- SKU: KP-3SX4N-65
$733.53 $815.03
+ $113.07 Tariff
- Manufacturer: KP Performance
- Data Sheet: Download
Product Information
KP Performance KP-3SX4N-65
3 GHz 65 Degree ± 45 Degrees Slant (4-Port) 18 dBi Sector Antenna
Note: Cables not included
The KP-3SX4-65 is a 4-port 18 dBi sector antenna designed for use in 3 GHz WISP networks. The unique design of these 3 GHz sector antennas minimizes interference by utilizing a 65-degree gain pattern and ±45-degree slant dual polarization scheme.
The KP-3SX4-65 sector antenna is designed to provide high-gain and maximum coverage and feature improved front-to-back and pattern roll off that allows for higher spectral efficiency. This sector antenna utilizes four 7/16 DIN connectors and operates in the popular frequency range of 3.3 GHz to 3.8 GHz and delivers VSWR of 1.7:1. Cables not includedTo purchase compatible 7/16 DIN to Type-N cables for this antenna.
Features:
- 4-port sector antenna, 3300-3800 MHz, 65° HPBW, 3.5° fixed electrical downtilt
- High gain and slant dual polarization
- Simultaneously maximize coverage and minimize interference
- Ideal for 3-sector frequency-reuse one with LTE equipment
Specifications
Specifications KP-3SX4N-65
| Frequency Range | 3.3 GHz to 3.8 GHz |
| Polarization Type | 45 Deg. Slant |
| Gain | 18 dBi |
| Vertical Beamwidth | 7° |
| Horizontal Beamwidth | 65° |
| Electrical Downtilt | 3.5° |
| F/B Ratio | 35 dB |
| VSWR | 1.7:1 |
| Cross Polar Ratio | 25 dB |
| Port Isolation | 25 dB |
| Connector Type | 4 x 7/16 DIN Female |
| Length | 736 mm | 29 in |
| Width | 279 mm | 11 in |
| Height | 89 mm | 3.5 in |
| Net Weight, with brackets | 4.3 kg | 9.5 lb |
