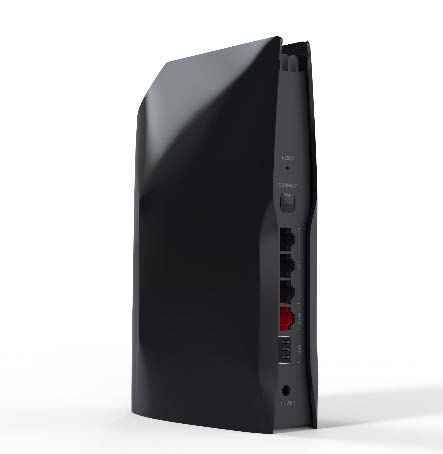

Mercku M6S Plus SFP (Plastic Black) AX3000 Residential Mesh Router
- SKU: MASF0
$229.00
- Manufacturer: Mercku
Product Information
Mercku M6S Plus SFP (Plastic Black) AX3000 Residential Mesh Router
Product Features
- Mediatek Dual-core 1.3GHz CPU
- Wi-Fi 6 2x2 Dual-Band
- 160MHz
- 1x 1G WAN
- 3x 1G LAN
- 1x 2.5G SFP Port
- 4GB Flash, 512MB RAM
- TR-069 / TR-143 / TR-111 / TR-181 / TR-369
Specifications
| Role | Wireless mesh Wi-Fi 6 router |
| Brand | Mercku |
| Colors | Plastic: Snow White, Beige Grey, Cosmo Black Fabric: Off-White, Light Grey, Dark Grey |
| Product Size | 140 x 53.00 x 209.00 mm |
| Power Supply | 12V/1.5A |
| Certifications | CE, FCC, IC, RCM, UKCA, RoHS, FSC |
| Wi-Fi Standards | 5 GHz-IEEE 802.11ax/ac/n/a 2.4 GHz-IEEE 802.11ax/n/b/g |
| Wi-Fi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 573 Mbps (802.11ax) |
| Antenna | Proprietary WHEMS Antenna 2×2 |
| Chipset | MediaTek 7981B |
| Interface | 3x RJ45 1000M LAN Ethernet 1x RJ45 1000M WAN/LAN Ethernet 1x 2.5G SFP cage WAN |
| Buttons | 1x Reset button 1x Connect button (establish mesh) |
| LED | 1x full color LED with mixed light (tricolor LED x 2; white LED x 3) |
| CPU | MT7981B + MT7531A + MT7976C at 1.3GHz, dual-core |
| Flash | 4Gb NAND (ESMT) |
| RAM | DDR4 512MB |
| Operating System | OpenWRT and MerckuOS, supporting SmartLinks applications |
| MESH Network Capability | Easy Mesh R2 (supports Mercku M6a, M6a Plus, M6c, M6s, M6s Nano) |
| Backhaul | Wired / Wireless |
| Antenna Configuration | 2x 2G & 5G internal antenna 1x 5G Internal antenna |
| 2.4GHz Tx Power | 19dBm |
| 5GHz Tx Power | 18dBm |
| EIRP 2.4GHz | 23dBm |
| EIRP 5GHz | 23dBm |
| WMM (Wi-Fi Multimedia) | Yes |
| WMM-PS (power save) | Yes |
| Supports Transmit power control | Yes |
| Power Plug Type | 4 Plug types (A, C, G, I) |
| Power Input (Auto-volt) | 100-240 VAC @ 50/60 Hz |
| Surge and Lightning Protection | Onboard Device (2kv) Power Adaptor (6kv) |
| Warranty | 2 years |
| DMZ | Yes |
| VPN pass-through | PPTP, L2TP, IPSec |
| VPN | PPTP / L2TP / OpenVPN / WireGuard |
| Cyber Security | BlackDice application |
| Gaming optimization | WTFAST application |
| Remote Management | Via mobile app (Android, iOS), WebUI, NOC (MQTT), Aprecomm |
| ACS Management | Yes (TR-069, TR-369, TR-181, TR-111, TR-143, and many others) |
| Operating Temperature | 0°C~40° |
| Storage Temperature | -30°C ~ 70°C |
| Operating Humidity | 5%~95% (typical) |
| White labeling | Yes, MOQ 2000 units |
