MikroTik (868_Omni_antenna) 6.5dBi 824-960 MHz LoRa antenna kit
CA$64.88 CA$66.89
- SKU: 868_Omni_antenna
- Manufacturer: MikroTik
- Data Sheet: Download
- 104 In Stock (updated live)
Product Information
- Description
- Specifications

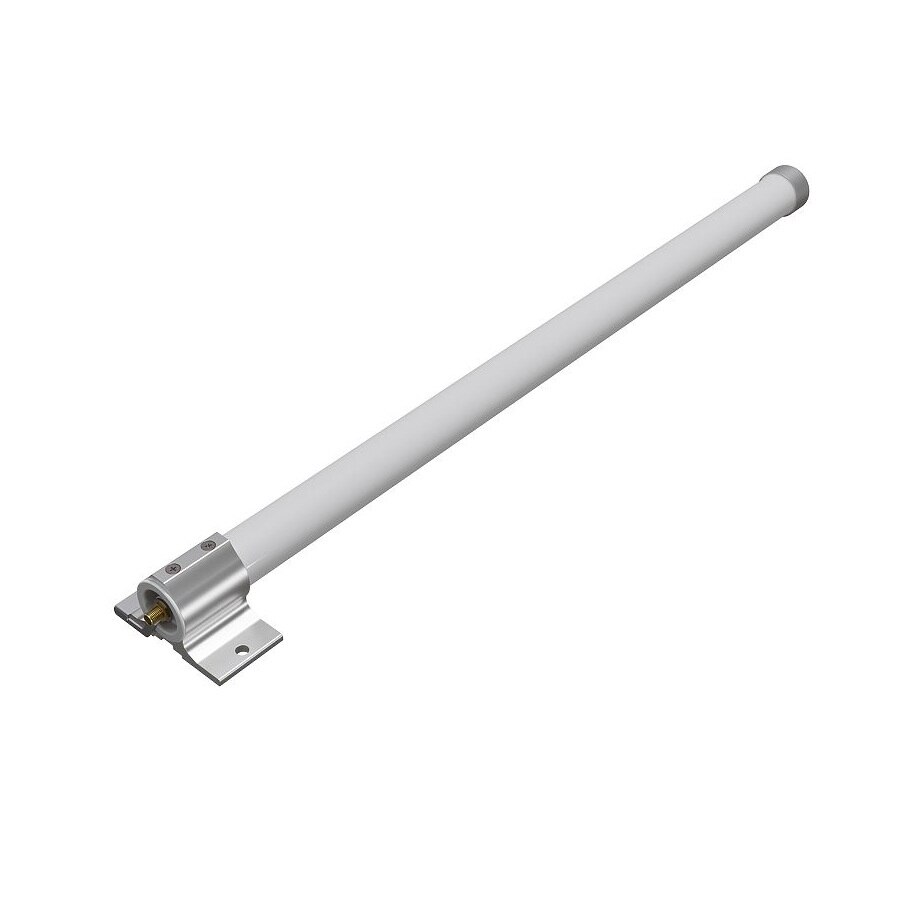

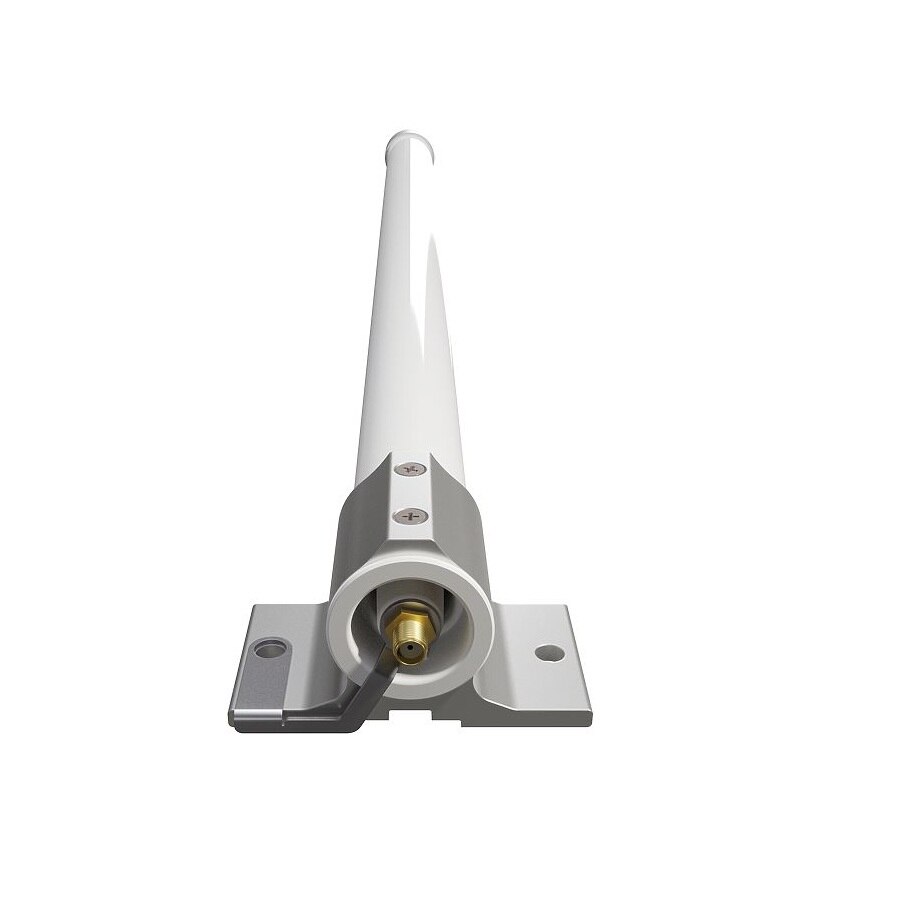

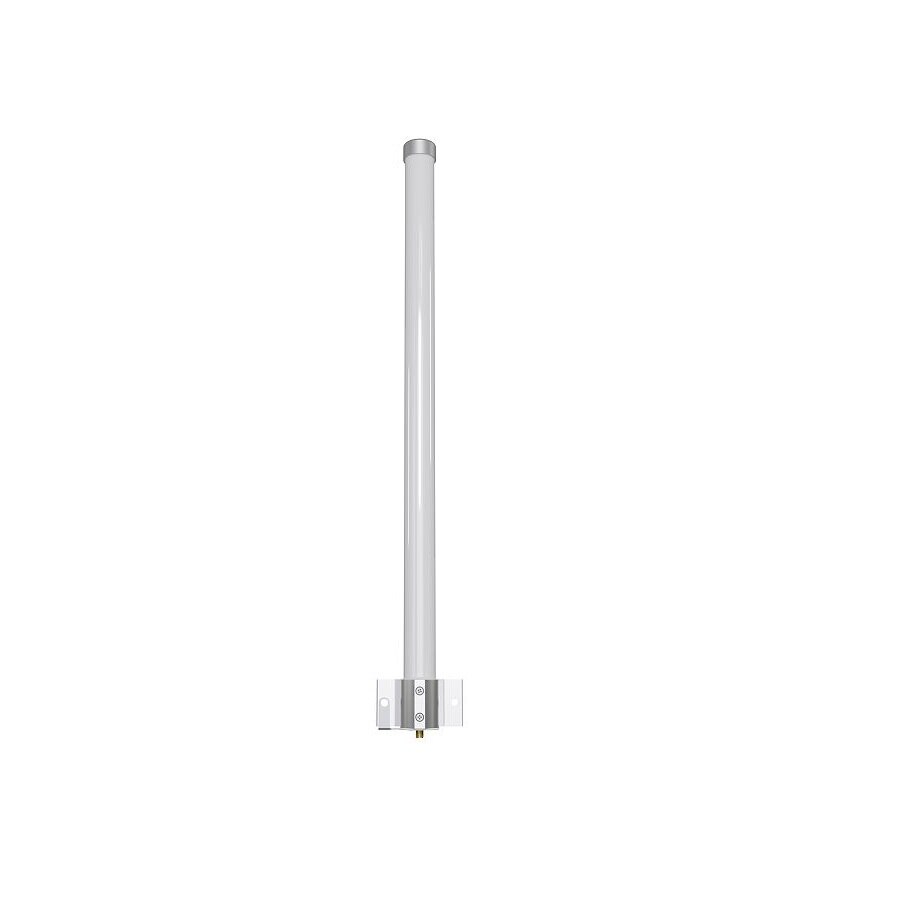

MikroTik 868_Omni_antenna
The upgrade of our antenna kit for LoRa® with a 6.5 dBi Omni antenna for 824-960 MHz, 1m long SMA cable and mechanical holder for quick and easy mast attachment. Smaller size, increased durability, and added IP66 water resistance.
After reviewing your suggestions, we went back to the drawing board and redesigned the Antenna kit for LoRa®. The new kit offers significantly higher durability in a smaller package – without sacrificing performance. The improved cable durability and the added IP66 water resistance with protection against powerful jets make this kit an excellent choice for all kinds of marine and coastal projects.
Mount this antenna on a 25-50 mm mast or on the wall and enjoy the superb coverage!
Features:
- Omni antenna 6.5 dBi (824 - 960 MHz)
- 1 m SMA cable
- U mounting bracket for the pole
- Degree of protection IP66
Specifications
| Certification & Approvals | IP 66 |
| Frequency | 824 - 960 MHz |
| Gain | 6.5 dBi |
| Horizontal beamwidth | 360° |
| Vertical beamwidth | 30° |
| Nominal impedance | 50 Ω |
| Lightning protection | DC ground |
| Connector | SMA female |
| Weight | 0.6 kg |
| Dimensions | 42 x 68 x 495 mm |
