MikroTik RB760iGS hEX S
CA$105.06 CA$108.31
Tariffed Items
CA$105.06 CA$108.31
Product Information
- Description
- Specifications

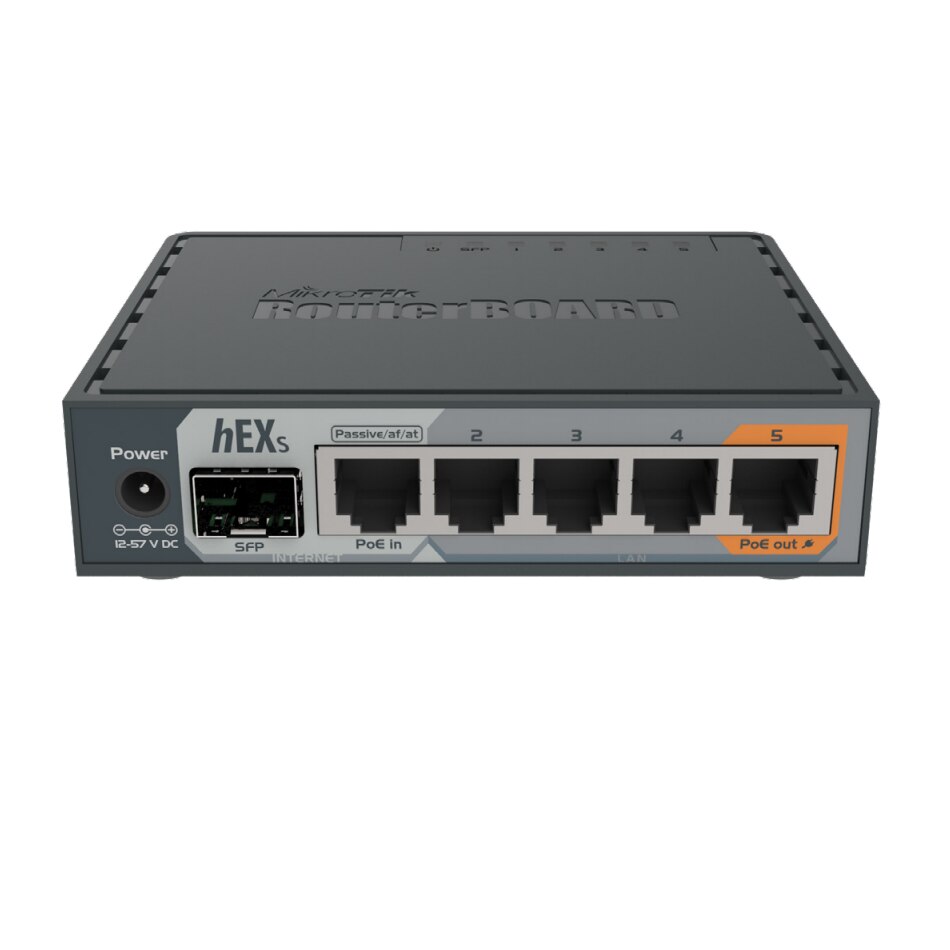

MikroTik RouterBOARD RB760iGS
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4
The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications RB760iGS
| Product code | hEX S |
| CPU | MT7621A |
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| CPU threads | 4 |
| Size of RAM | 256 MB |
| 10/100/1000 Ethernet ports | 5 |
| SFP cages | 1 |
| PoE in | Passive, 802.3af/at |
| PoE out | Passive PoE up to 57 V (Ether5) |
| Supported input voltage | DC and PoE in: 12 - 57 V |
| Power output | Max out per port output (input < 30 V): 500 mA Max out per port output (input > 30 V): 500 mA Max total out: 500 mA |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| USB slot | USB type A |
| MicroSD slot | 1 |
| Operating temperature | -40°C to +70°C |
| Dimensions | 113 x 89 x 28 mm |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 11 W |
