MikroTik SXT LTE6 kit-US 2 Etheret ports, Cat 6 LTE modem, 650 MHz CPU, 64 MB RAM, RouterOS, License level 3
- SKU: SXTR&EP06-A
- Manufacturer: MikroTik
- Data Sheet: Download
- 18 In Stock (updated live)
Product Information
- Description
- Specifications

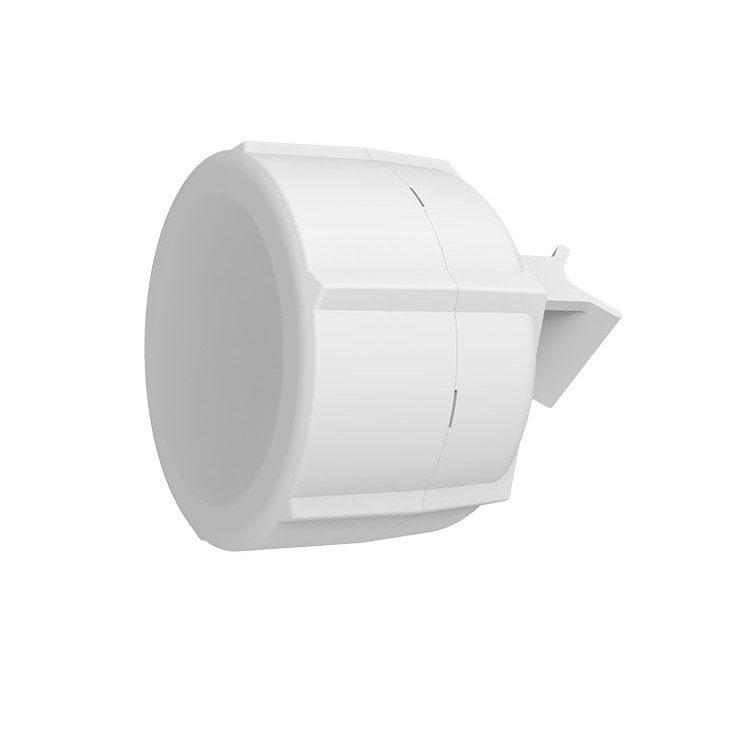

MikroTik RouterBOARD SXTR&EP06-A
SXT LTE6 kit-US 2 Etheret ports, Cat 6 LTE modem, 650 MHz CPU, 64 MB RAM, RouterOS, License level 3
This device is an absolute staple of affordable connectivity in remote areas. Even if your phone has no reception at all, our SXT LTE6 kit can still deliver due to its advanced LTE chip design and high-gain antenna.
There are two Ethernet ports. Ethernet port #1 has PoE-in. And Ethernet #2 has PoE-out. You can use it to power another device. Fewer cables to worry about in your sweet cabin in the woods!
We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when it comes to mobile network coverage. Also, the Category 6 LTE modem enables carrier aggregation, allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
When it comes to powering, SXT LTE6 kit supports a wide voltage range of 18-57V with full 802.3af/at compliance.
Features:
- Category 6 LTE Modem
- Connect Even Where Your Phone Fails!
- Carrier Aggregation For A Better Signal
- Two Ethernet Ports
- Poe-In & Poe-Out
- Two Micro-Sim Slots
Specifications
| CPU QCA9531 | 650 MHz |
| CPU architecture | MIPSBE |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| RAM type | DDR2 |
| Storage | 16 MB, Flash |
| Number of 100Mbit Ethernet ports | 2 |
| MiniPCIe slots | 1 |
| LTE category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE modem | EG06-A |
| TAC | 01611100 |
| LTE FDD bands | 2 (1900MHz)/4 (1700MHz)/5 (850MHz)/7 (2600MHz)/12 (700MHz)/13 (700 MHz)/25 (1900MHz)/26 (850MHz)/29 (700 MHz)/30 (2300 MHz)/66 (1700MHz) |
| MIMO DL | 2x2 |
| 3G Category | R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G Bands | 2 (1900MHz) / 5 (850MHz) |
| Dimensions | 140 x 140 x 56 mm 5.51 x 5.51 x 0.21 in |
| Operating system RouterOS, License level | 3 |
| Operating temparature | -30°C to +60°C |
| Powering | |
| Number of DC inputs | 1 |
| PoE-in | Yes, on Ether1 |
| PoE-Out | Yes on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA |
| Supported input voltage | 12-57 V (Passive PoE 802.3af/at on Ether1) |
| Power adapter nominal voltage | 24 V |
| Power adapter nominal current | 1.2 A |
| Max power consumption without attachments | 5 W |
| Max power consumption | 22 W |
