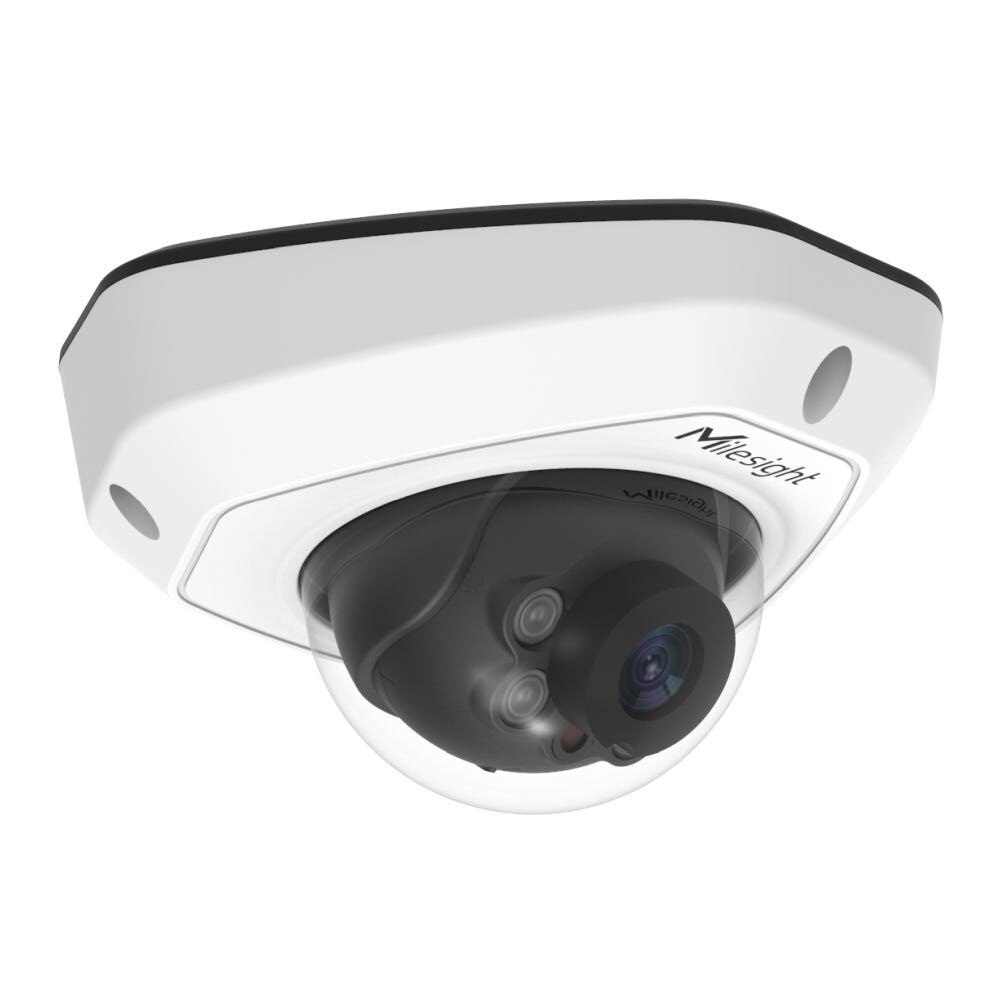

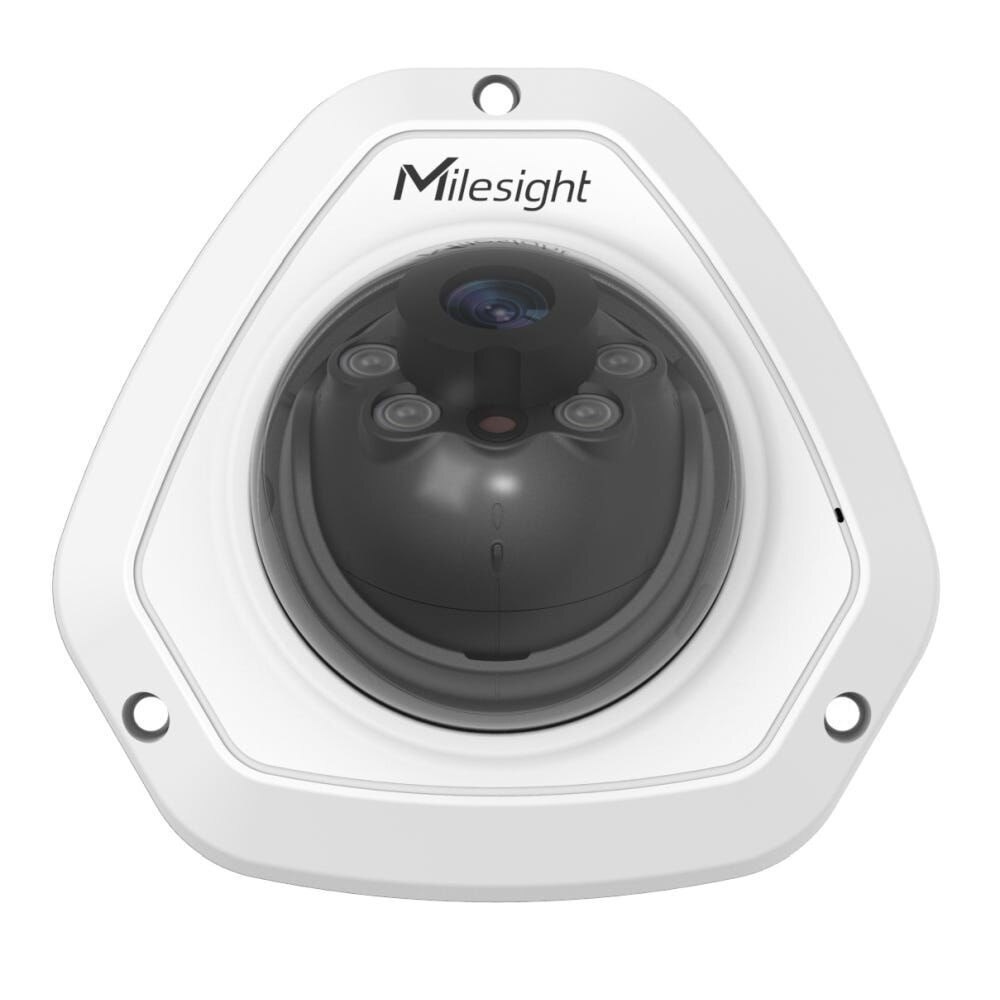

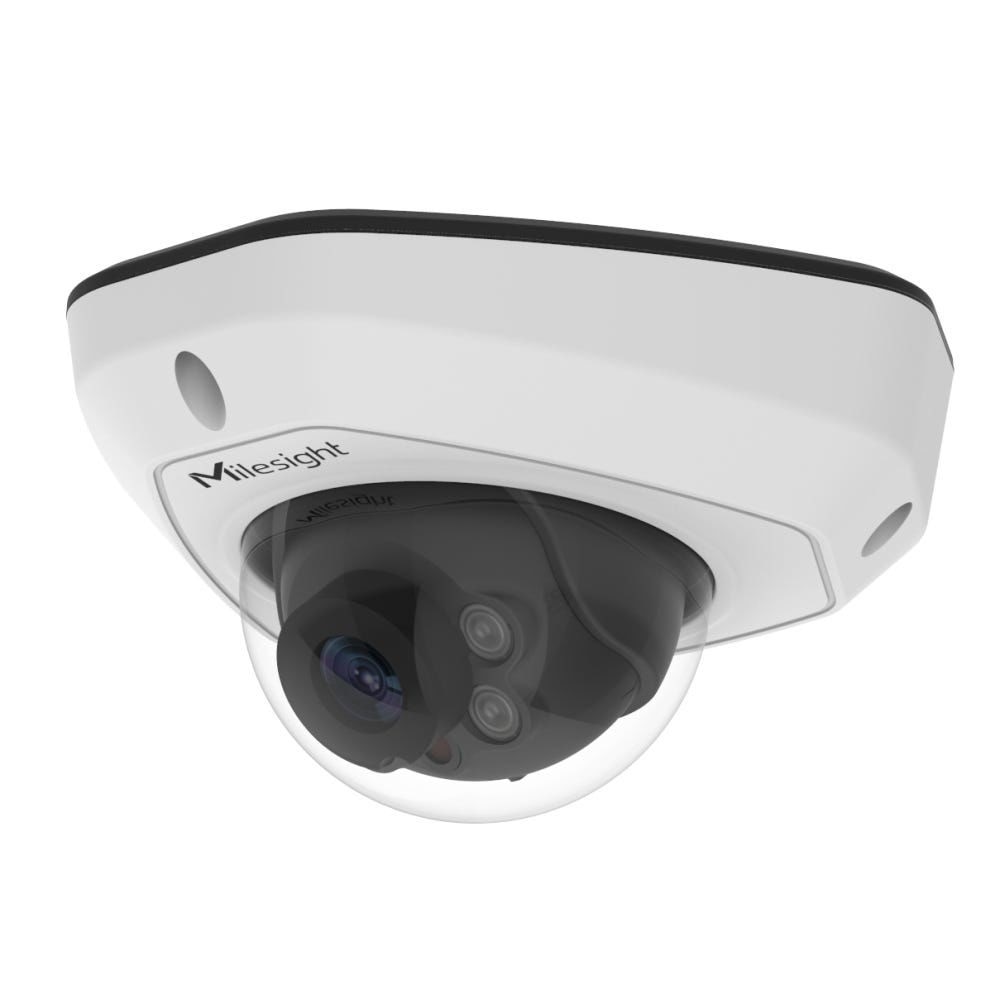

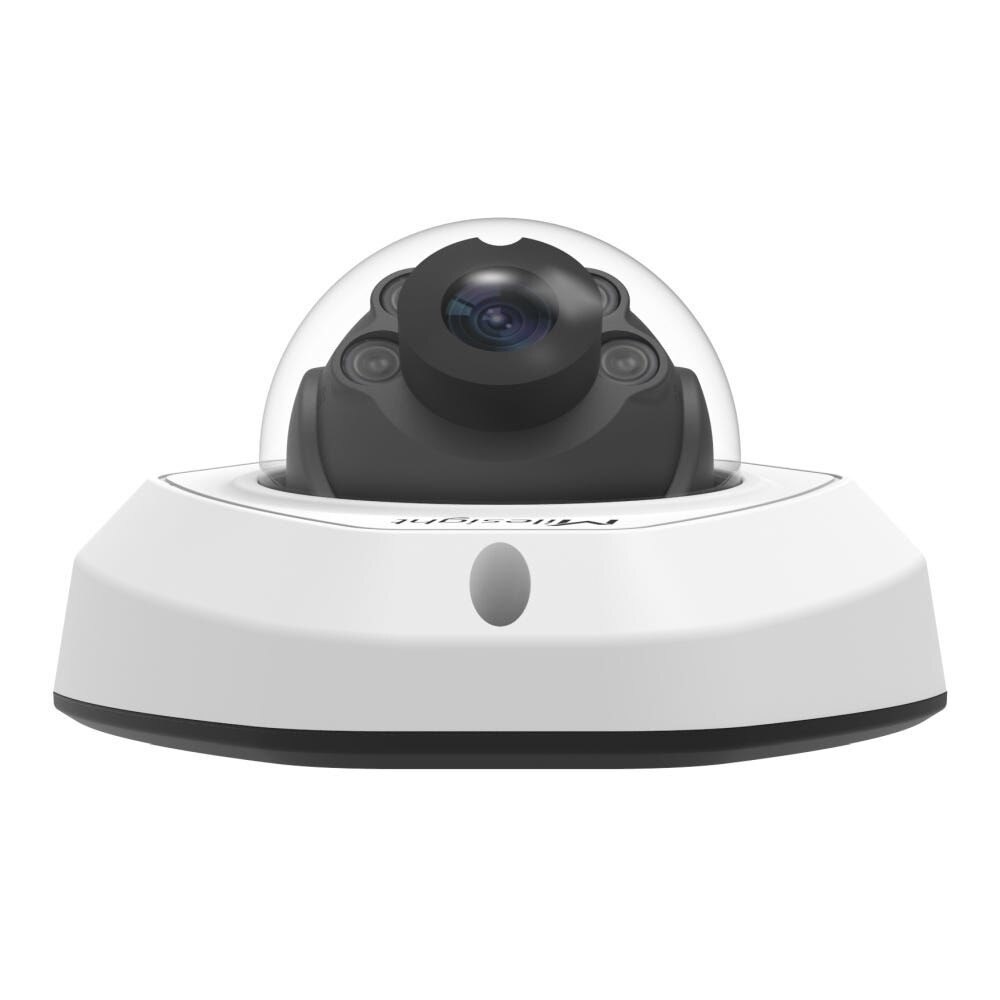

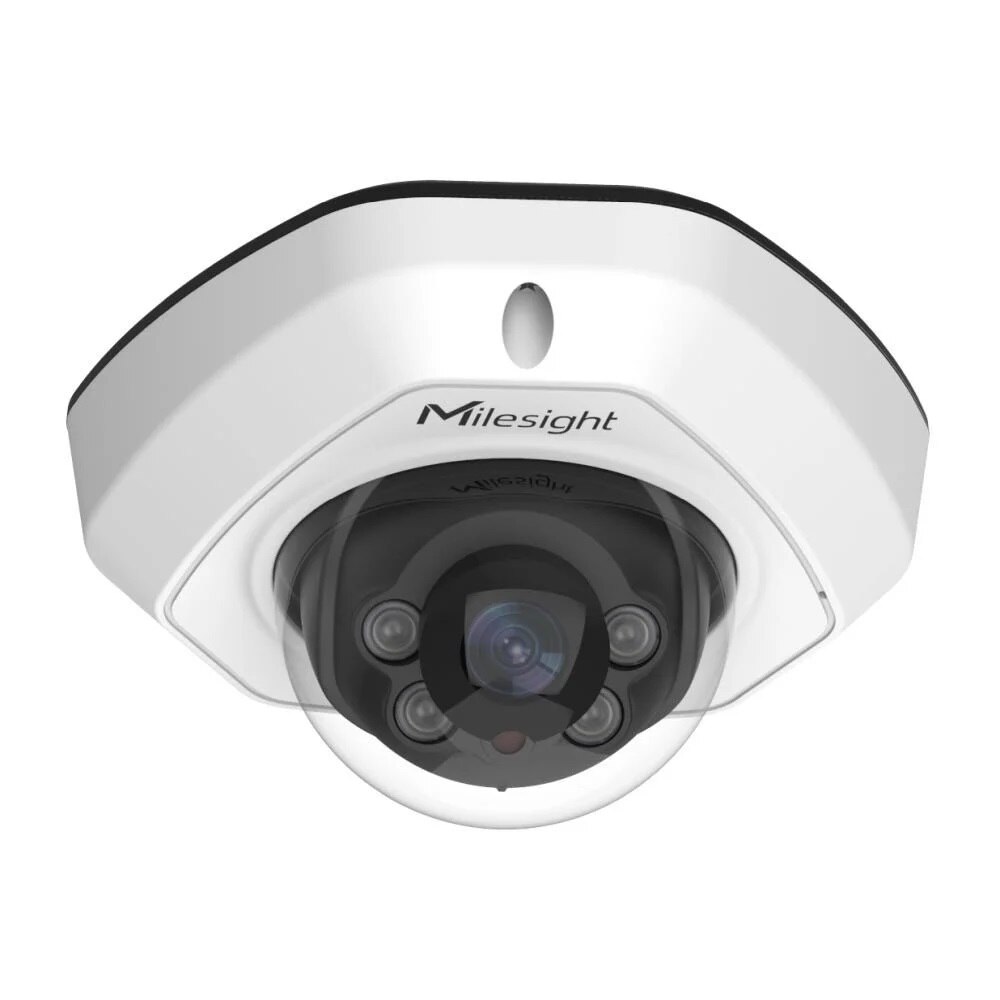

Milesight 2MP AI Vandal-proof Mini Dome Network Camera
- SKU: MS-C2973-PD
- Manufacturer: Milesight
- Data Sheet: Download
Product Information
Milesight Video MS-C2973-PD
2MP AI Vandal-proof Mini Dome Network Camera
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, up to 4K Video Viewing Experience, and 60fps High Frame Rate features make it well-suited for various special circumstances.
Latest IR LED Technology
Equipped with LEDs of the latest generation, the camera provides superior night-time images and delivers absolute performance in night vision surveillance.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Versatile Interfaces (Optional)
Several interfaces such as PoE, DC, Audio I/O and Alarm I/O are available in the Multi-interface Version, offering more choices for easy management and various needs.
Unique Design for Easy Installation
The new model is designed for easy and quick installation. The 3-axis mechanical design, built-in microSD/SDHC/SDXC card slot and PoE module make it truly installer-friendly.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Features:
- Mini Dome 2MP 1920*1080 @30fps
- 2.8mm Fixed Lens
- FOV = H111/D128/V61; Starlight & Super WDR
- Color .002Lux @F1.2
- 120dB WDR; 30m IR; IP67 & IK10
- NDAA Compliance (The fully NDAA-compliant produïts are well suited for government, delense and a range of projects subject to the NDAA.)
- Aavancea Functions (Boasting to support various advanced functions sucn as HLC, Defog, R0l.)
- Built-in Microuhone (Supporting aud io function to heai what is happening in front of the cameïa.)
- SIP (Session Initiation Protocol Proviaing audio/alarm/intercom and video streaming for mobiie phones and video phones.)
- 256G (Supporting ultra-large extern al microSD/SDHC/SDXC card storage up to 256G
- 0.005Lux Starlight (Deliver high detailed color images even in low lignt environment reaching 0.005 ux.)
- Smart Stream (Banawidth, storage and bit rate are saved with Smart Stream On, eg, H.2ó5* saves 70%‹ 80%› banawidth that of H.264.)
Specifications
Specifications MS-C2973-PD
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | 2.8mm/4mm/6mm@F1.6 |
| Mount | M12 |
| Field of View | H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) H55°/D63°/V32°(6mm) |
| Shutter Time | 1/100000s~1s |
| IR Distance | Up to 30m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4 areas |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | Built-in Microphone; 1/1 (Multi-interface Version) |
| Alarm I/O | 1/1 (Multi-interface Version) |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version) |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version) |
| System Compatibility | ONVIF Profile G & Q & S & T, API |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version) |
| Power Consumption | 3W MAX 4.7W MAX (With IR on) |
| Housing | Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing |
| Weight | 500g (1.10 lbs) |
| Dimensions | 118.5mmX110.8mmX65mm 4.66 x 4.36 x 2.55 inch |
| Warranty | 3/5 Years |
