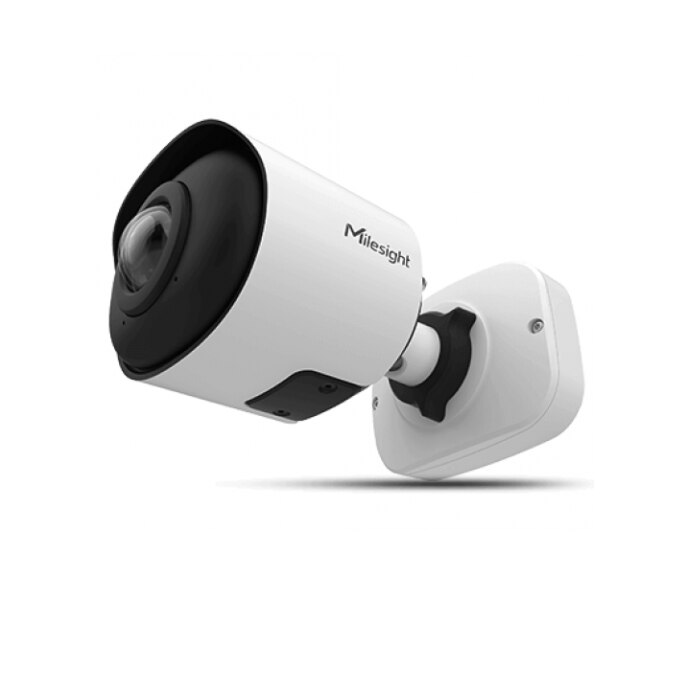

Milesight 5MP AI 180° Panoramic Mini Bullet Network Camera

(0)No Reviews yet
  • SKU: MS-C5365-PE
$714.59 $821.29
  • Manufacturer: Milesight
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Milesight MS-C5365-PE

5MP AI 180° Panoramic Mini Bullet Network Camera

AI Video Analytics

  • 8 intelligent VCA modes powered by AI engine, which can intelligently filter objects to focus on human and vehicle detection.
  • People Counting technology provides high accuracy and real-time data based on AI algorithm with statistic reports.

4K Video Viewing Experience

The camera performs well in catching detailed image with 4KHDresolutionregardless of the moving speed.

180°Panoramic View

The camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.

Integrated Junction Box

The well-designed Integrated Junction Box ensures efficient andsimpleinstallation. It enlarges the space to make cable connection neat andeasy.With the help of IP67-rated weather-proof design and Point-contact PowerSupply, the Integrated Junction Box is able to offer stable operationandsupreme user-experience.


Features:

  • NDAA Compliance (The fully NDAA-compliant products are well suited for government, defense and a range of projects subject to the NDAA.)
  • 120dB Super WDR (Excellent performance even when the ratio of the luminosity of brightest and darkest is up to 120dB.)
  • Advanced Functions (Boasting to support various advanced functions such as HLC, ROI.)
  • 1TB (Supporting ultra-large external microSD/SDHC/SDXC card storage up to 1TB.)
  • Built-in Microphone(Using advanced codecs to provide clearer voice and robust performance.)
  • Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+ saves 70%~80% bandwidth that of H.264.)

Specifications

Specifications MS-C5365-PE

Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationB/W: 0Lux with IR on
WDR120dB Super WDR
Lens1.68mm@F2.0
MountM12
Field of ViewH180°/V95°
Shutter Time1/100000s~1s
IR DistanceUp to 15m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Video
Max.Image Resolution2592x1944 (Original)
Primary Stream60HZ:30fps@(2560x1440, 1920x1080, 1280x720) 50HZ:25fps@(2560x1440, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360,352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio InterfaceBuilt-in Microphone
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioN/A
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting&Count the number of objects crossing the line, optionally human and vehicle,
ReportSupport regional people counting for up to 4 detection areas
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption7W MAX 9W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight700g
Dimensions95.8mmX74mmX158.5mm (3.77" x 2.91" x 6.24")
Warranty3/5 Years
