NetPoint 2-Foot Parabolic Antenna DP 4.9-6.4 GHz 30 dBi Includes Pigtail N-F to SMA M
- SKU: NP5-DP-2FT
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information

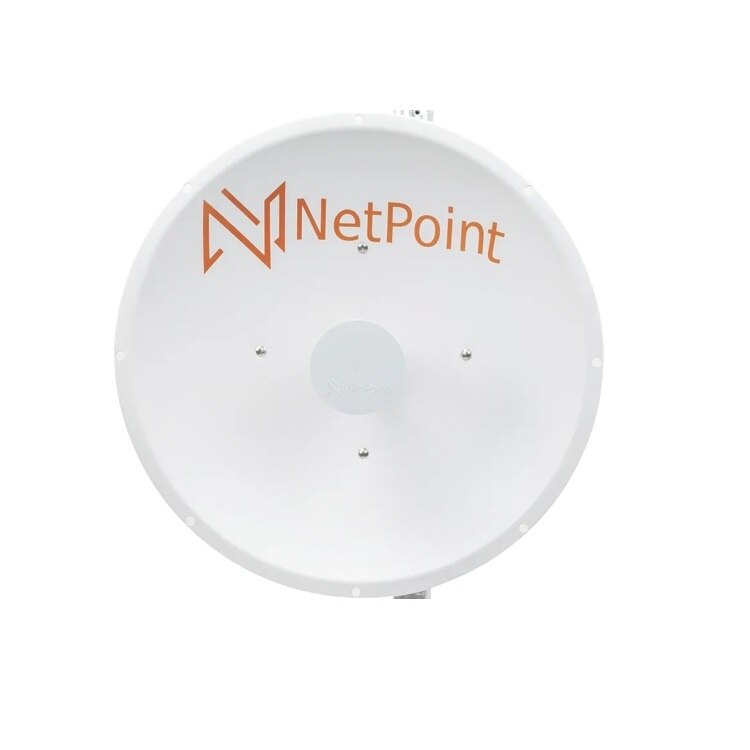

NetPoint NP5-DP-2FT
2-Foot Parabolic Antenna DP 4.9-6.4 GHz 30 dBi Includes Pigtail N-F to SMA M
The NP5-DP-2FT (NP1GEN2) is a parabolic antenna designed for point-to-point communications by directing the waves to the receiver at its focal point through a parabolic reflector. This antenna has a high gain of 30 dBi and operates at a frequency ranging from 4900 to 6400 MHz. The antenna is highly directional, which means that it receives more power in a specific direction, has an N female connector and has N - RPSMA jumpers for connectorized radios. Its main application is for Backhaul and CPE.
NP5-DP-2FT Beamwidht: Netpoint's NP5-DP-2FT is a highly directional antenna that has a 6° beamwidth for more stable and reliable communication.
NP5-DP-2FT light-weight: Netpoint's NP5-DP-2FT is a light-weight, low-profile antenna ideal for the wireless ISP operator industry.
Dual - Polarized: Netpoint's NP5-DP-2FT is a dual polarized V/H or ±45° slant adjustment and Includes N-Male to SMA Reverse male Jumper.
High compatibility: Netpoint NP5-DP-2FT is an antenna compatible with radio units: Mimosa Networks, Ubiquiti, Cambium Networks, Radwin, Telrad and others.
Features:
- Gain of up to 30 dBi with low VSWR and high port isolation across the entire
- 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Reduced interference with 38 dB minimum front to back
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type N Female
- Pigtails of N to RPSMA included in the box for free!!!
Specifications
Specifications NP5-DP-2FT
| Antenna type | Directional parabolic reflector |
| Frecuency | 4.9 - 6.4 Ghz |
| Connector type | Female N |
| Gain (dBi) | 28, 30, 29 4.9GHz, 5.4GHz and 5.7GHz |
| VSWR HPOL | <1.5 |
| Beamwidth VPOL | 6.0° |
| Beamwidth HPOL | 6.2° |
| Return loss | 11 |
| ISO (dB) | 30 |
| Radius F/B (dB) | 38 |
| Polarization | Dual slant 45° or 90° |
| Wind max survival speed (MPH) | 124.2 miles with Radome |
| Azimuth adjustment | +/- 60 degrees |
| Elevation adjustment (°) | +/- 15 degrees |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 inch 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
| Connector type | Dual N-Female with pigtails for RP-SMA |
| Lenght of Pig tail | 2ft - 600 mm |
| Gross weigh (Kg) | 14.3lb |
| Dimensions, L x W x H | 28.34 x 28.34 x 11.41in | 72cm X 72cm X 29cm |
