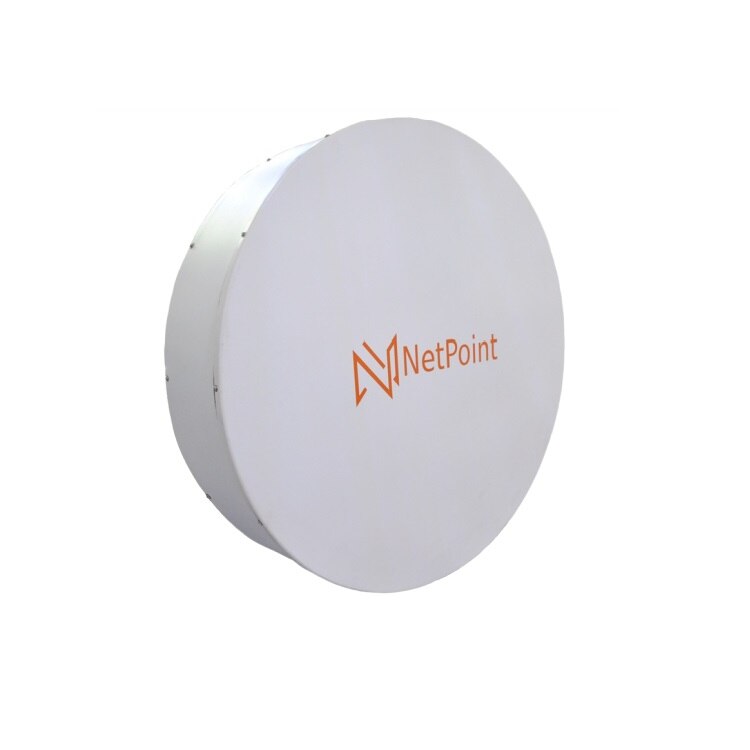

NetPoint 4-Foot High Performance Antenna DP 4.9-6.4 GHz 37 dBi, Includes Radome and Pigtail N-F to SMA M, NPX3
- SKU: NPX5-SHP-4FT
$2,346.18
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
NetPoint NPX5-SHP-4FT
4-Foot High Performance Antenna DP 4.9-6.4 GHz 37 dBi, Includes Radome and Pigtail N-F to SMA M, NPX3
NetPoint's NPX5-SHP Super High Performance series offers Super High Performance parabolic antennas designed to provide radiation pattern performance at 4.9 to 6.4 GHz with exceptional front-to-back ratio, excellent gain 37dBi in dual polarization, and excellent VSRW performance. NPX5-SHP dishes include high-performance Radome. A feature of these models is that they include a stiff arm between a cost-benefit balance and a reliable backhaul link.
Features:
- Gain of up to 37 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type N Female
Specifications
Specifications NPX5-HP-4FT
| Antenna type | Shielded parabolic antenna |
| Frecuency | 4.9 - 6.4 Ghz |
| Connector type | Female N |
| Gain (dBi) | 35, 36, 37 4.9GHz, 5.4GHz and 5.7GHz |
| VSWR HPOL | <2.0 |
| Beamwidth VPOL | 3.2° |
| Beamwidth HPOL | 3.0° |
| Return loss | 9.54 |
| ISO (dB) | 30 |
| Radius F/B (dB) | 49 |
| Polarization | Dual slant |
| Wind max survival speed (MPH) | 124.27 miles with Radome |
| Azimuth adjustment | +/- 60 degrees |
| Elevation adjustment (°) | +/- 15 degrees |
| Mounting Pipe Diameter, Min | 1 inch - 25.4mm |
| Mounting Pipe Diameter, Max | 2.750 inch 69.86mm |
| Operating temperature (C°) | -49 to +140 F° | -45 to +60 C° |
| Connector type | Dual N-Female with pigtails for RP-SMA |
| Lenght of Pig tail | 2ft - 600 mm |
| Gross weigh (Kg) | 154.32lb - 70kg |
| Dimensions, L x W x H | 52.36 x 52.36 x 24.80in | 133cm X 133cm X 63cm |
