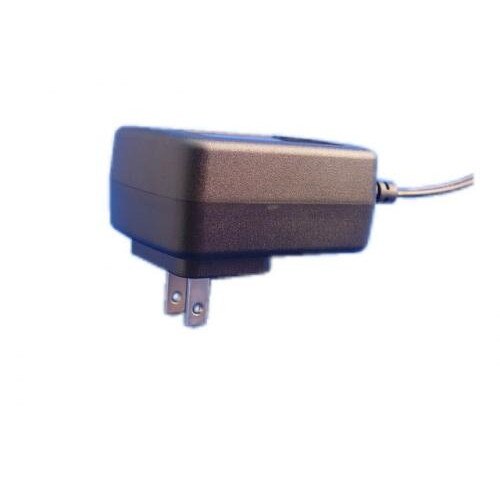

PS-48V-18W 48V DC Regulated Power Supply
CA$13.76
- SKU: PS-48V-18W
- Manufacturer: ISP Supplies
- 369 In Stock (updated live)
Product Information
- Description
- Specifications
PS-48V-18W 48V DC Regulated Power Supply
Input : 100V~240V AC
Output : 48V DC / 375mA
Input Voltage Type: Universal Range
AC Input Voltage: 100~120 VAC
AC Input Frequency: 50~60 Hz
AC Input Current: 0.5A RMS
No. of Outputs: Single O/P
Output Voltage: 48VDC
Output Current: .375A
Load Regulation: +/-5%
Min. O/P Current: 0 Amp
Operation Temperature: 0~40°C
Protection: Short, Over Voltage, Over Current
MTBF: 35,000 Hours
Hold Up Time: 10 mS
Safety: cUL, CB, CE, PSE, FCC, BSMI, NOM
Weight: 158 grams
Dimensions: 58.0(L)x32.0(W)x37.0(H)mm
AC Input Voltage: 100~120 VAC
AC Input Frequency: 50~60 Hz
AC Input Current: 0.5A RMS
No. of Outputs: Single O/P
Output Voltage: 48VDC
Output Current: .375A
Load Regulation: +/-5%
Min. O/P Current: 0 Amp
Operation Temperature: 0~40°C
Protection: Short, Over Voltage, Over Current
MTBF: 35,000 Hours
Hold Up Time: 10 mS
Safety: cUL, CB, CE, PSE, FCC, BSMI, NOM
Weight: 158 grams
Dimensions: 58.0(L)x32.0(W)x37.0(H)mm
