PacketFlux Rackinjector Power Distribution Unit Board

PacketFlux RI-PDU

Rackinjector Power Distribution Unit Board

This is an add-on card for the RackInjector which adds a 4 port Power Distribution Unit.

Features:

• Accepts either positive or negative power sources, so devices requiring negative power (i.e. -48V) can be powered by this unit.
• Installs in any available 'slot' in the RackInjector chassis.
• Individually selectable power source on each port via jumpers. Select from any of the 3 RackInjector power inputs.

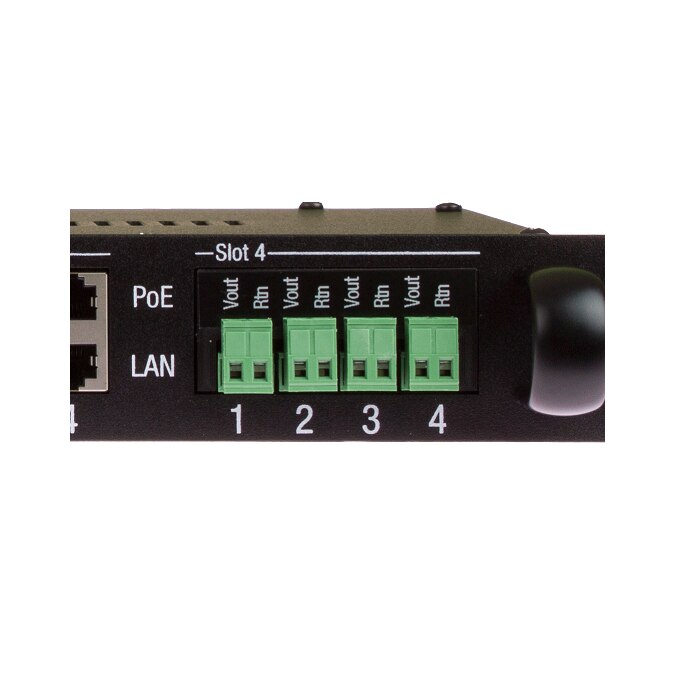

• Removable screw terminal outputs to simplify wiring for devices which need direct DC power instead of PoE.
• Capable of 4A per port, subject to total current limits of the RackInjector (10A per voltage input).
• Full electronic over-current and short circuit protection.
• Current limit adjustable on a per-port basis.
• Each port individually controllable through the web interface on the Control Board.
• Accepts either +48V or -48V power sources
• Entire unit is designed to operate from -40C to +50C, non-condensing.
